Metravi PRO IM-09 Solar Irradiance Meter

Click To Zoom

Metravi PRO IM-09 Solar Irradiance Meter

Metravi PRO IM-09 Solar Irradiance Meter

(Based On 10 Reviews)

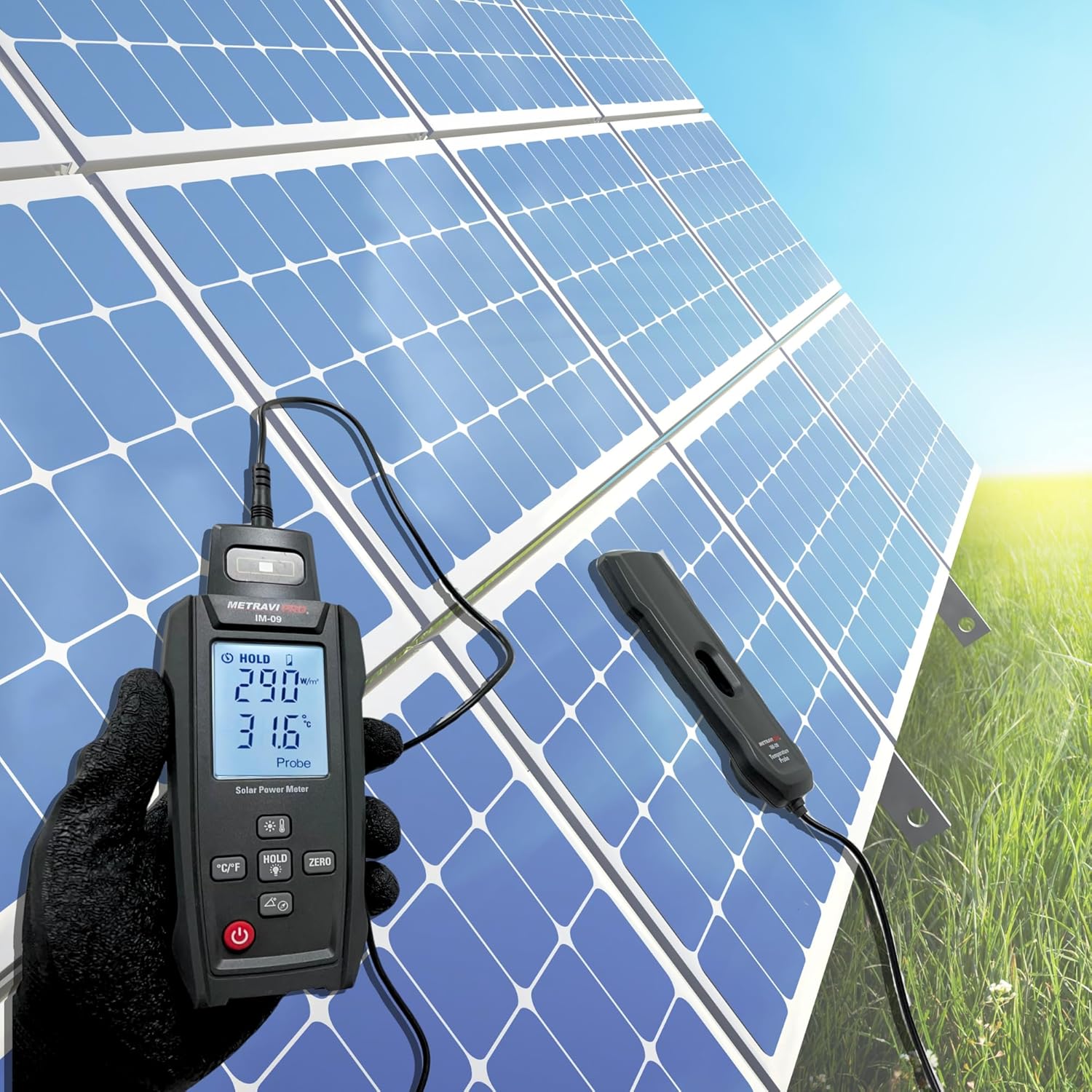

The Metravi IM-09 Solar Irradiance Meter is a pocket-sized, handheld device which is very convenient to hold & use while working on a sloping roof or even on top of a ladder. The IM-09 helps with installation and maintenance of solar panels and arrays.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 11,233.00

(GST inclusive price) i
  • Base Value: ₹ 9519.5
  • GST: (18) % ₹ 1713.5
  • Total Value ₹ 11233

₹15,120.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features

  • Simultaneous measurements and readings for
  • Temperature & Irradiance.
  • Both internal sensor & external probe sensor available.
  •  Selectable °C/°F units.
  •  Measure Tilt Angle.
  •  Measure Basic Direction.
  •  Big, backlit LCD display.
  •  Low Battery Indicator.
  •  Auto Power Off.
  •  Data Hold.
  •  Compass is user-calibratable.



What's in the box?

  • Metravi PRO IM-09 Solar Irradiance Meter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General Specification
CertificationIP54 Dust & Splash Proof
Power4* AA 1.5V alkaline batteries
Operating TemperatureTester -10°C to 50°CC (14°F to 122°F)
Probe -30°C to 100°C (22°F to 212°F)
Operating Humidity≤ 80%RH
Storage Temperature30°C to 60°C (22°F to 140°F)
Storage Humidity≤ 80%RH



Technical Specification
IRRADIANCE
Measuring Range0 - 1400W/m2
Resolution1W/m2
Accuracy±(5% + 5 Digit)
TEMPERATURE
Measuring Range-30°C to 100°C(-22°F to 212°F)
Resolution0.1°C(0.2°F / 1°F@>100°F)
Accuracy±1°C (±2°F) @ -10°C to 75°C (14°F to 167°F)
±2°C (±4°F) @ -30°C to -10°C (-22°F to 14°F)
±2°C (±4°F) @ 75°C to 100°C (167°F to 212°F)
INCLINATION ANGLE
Measuring Range-90° to +90°
Resolution0.1°
Accuracy±1.5° @ -50 to +50°
±2.5° @ -85° to -50° and +50° to +85°
±3.5° @ -90° to -85° and +85° to +90°
COMPASS
Measuring Range0° to 360°
Resolution
Accuracy±7°
