Metravi 771+ Digital Milliamp Process Clamp Meter
Click To Zoom

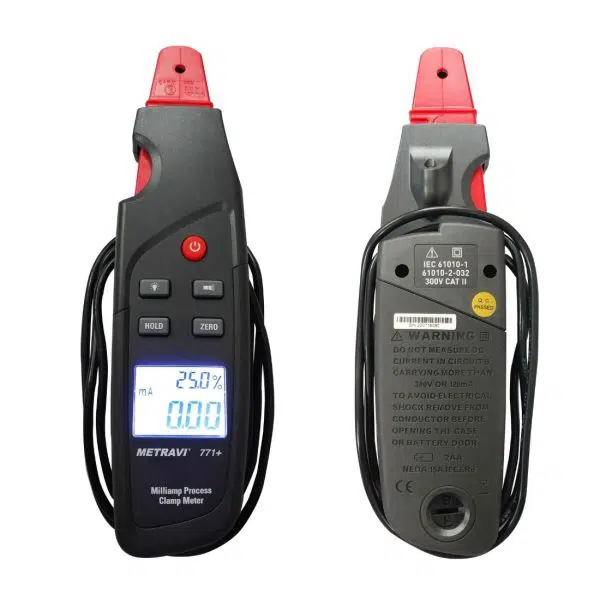

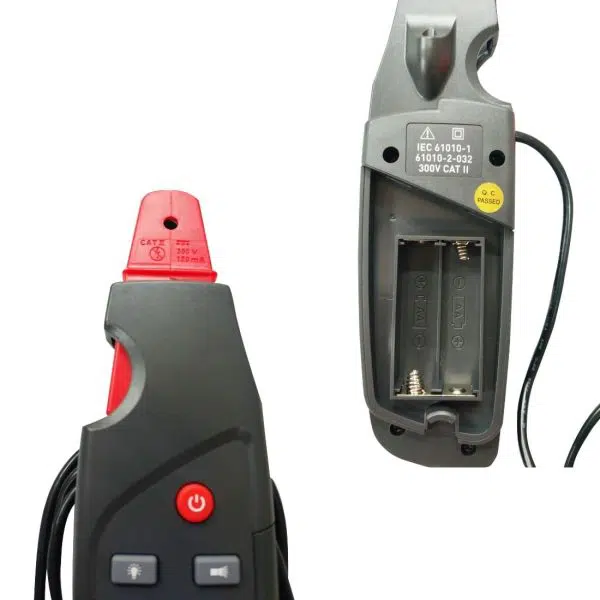

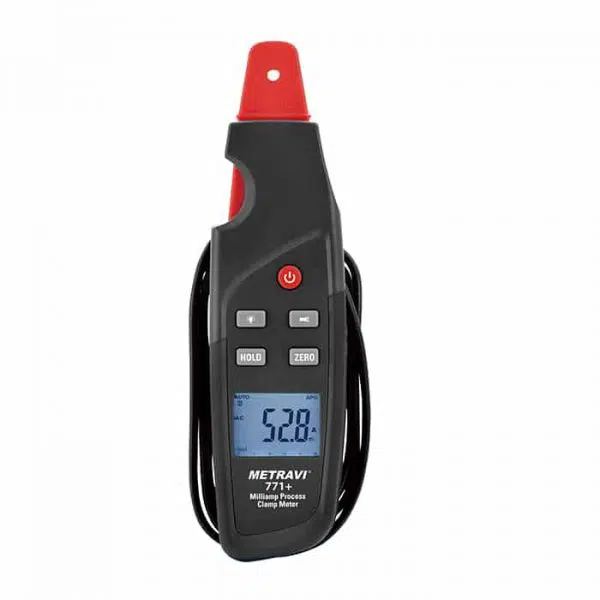

Metravi 771+ Digital Milliamp Process Clamp Meter
Metravi 771+ Digital Milliamp Process Clamp Meter
The Milliamp Process Clamp Meter is a hand-held battery-operated clamp meter that measures 4-20 mA DC without breaking the electrical circuit. Unlike conventional clamp meters, the Meter features a remote jaw that is connected to the main body via an extension cable.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 23,600
(GST inclusive price) i-
Base Value: ₹ 20000
-
GST: (18) % ₹ 3600
-
Total Value ₹ 23600
₹33,750.00
( - 30% OFF )
Description
Key Features
- Hand-Held, Milli Amp Process Clamp Meter
- 4-20 mA DC measurement without breaking the electrical circuit
- With removable jaw connected to the body using an extension cable
- Battery Operated
- High Precision
- Built-in flashlight to access dark areas with ease
- Jaw Dia: 4.5mm
- Current Ranges 0mA ~ ±20.99mA / ±21.0mA… ±99.9mA
- Resolution: 0mA~ ±20.99mA: 0.01mA , ±21.0mA~ ±99.9mA: 0.1mA
- Accuracy : 0mA~ ±20.99mA: 0.3% reading ±8 digits , ±21.0mA~ ±99.9mA: 1% reading ±8 digits
- Percentage Span display feature for 4 to 20 mA Loops
- Data Hold
- Zero Button
- Backlit display
- Battery: 2 AA 1.5V Alkaline
- Encapsulation: IP 40
- CAT II 300V
What's in the box?
|
Rating & Reviews
Rating
| General Specification | ||
| Current Ranges (Resolution) | 0mA... ±20.99mA ( 0.01mA ) | ±21.0mA... ±99.9mA (0.1mA) |
| Accuracy | 0.3% reading ±8 digits | 1% reading ±8 digits |
| Clamp Jaw Dia | 4.5mm | |
| Maximum Reading Influence of Earth's | +99.9mA | |
| Field | <0.25mA | |
| AC Noise Rejection | ≥5 Hz | |
| Battery | 2 AA 1.5V Alkaline 40 Hours | |
| Working Hours Operating Temperature | -10 to 50°C | |
| Storage Temperature Operating | -15 to 60°C | |
| Humidity Operating Altitude | <90% at <30°C/ <75% at 30 to 50°C 0 to 2000m | |
| IP Rating Measurement | IP 40 | |
| Shock Proof | 1m drop tested | |
| Category Agency | IEC 61010-1, 61010-2-032, CAT II 300V | |
| Electromagnetic Compatibility (EMC) | EN61326-1 | |
| Approvals | CE | |
| Weight | 280 grams (approx.) | |
| Size (H x W x D) | 215mm x 55mm x 36mm | |
| Electric Current | Percentage Span |
| 2mA | -12.5% |
| 3.2mA | -5.0% |
| 3.6mA | -2.5% |
| 4mA | 0% |
| 8mA | 25% |
| 12mA | 50% |
| 16mA | 75% |
| 20mA | 100% |
