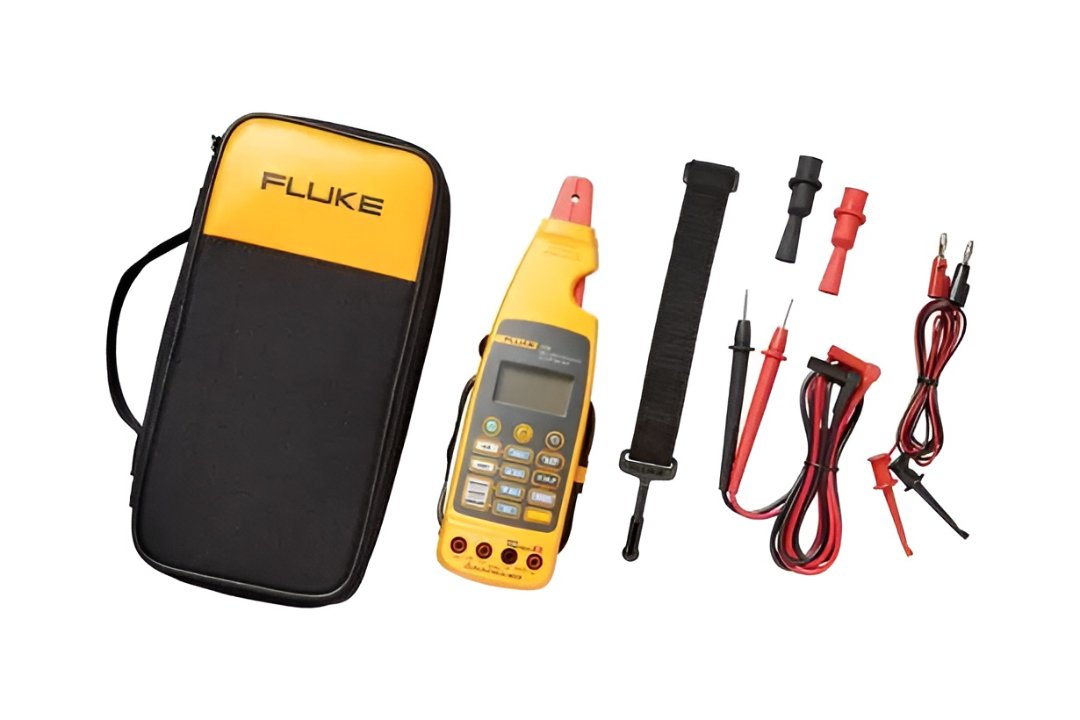

Fluke 773 Milliamp Process Clamp Meter
Fluke 773 Milliamp Process Clamp Meter
The Fluke 773 milliamp clamp meter is accurate, versatile, and highly portable. It saves time and money by measuring 4–20 mA signals five times faster than with traditional multimeters, and without breaking the loop. That means you can troubleshoot a live device without having to power down and possibly miss something going on in the process.

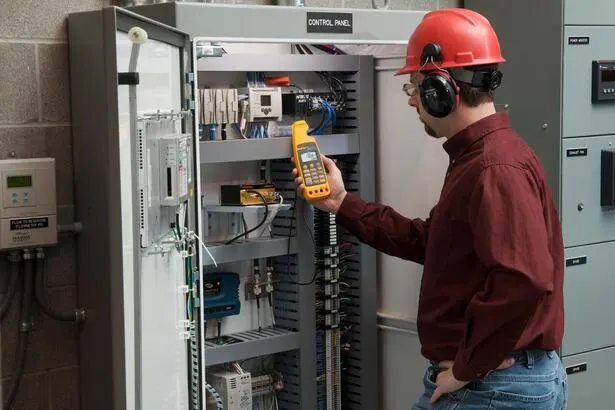

The 773 is ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants. The 773 allows you to connect to a mA loop in a traditional series workflow to measure, source, or simulate a control system. And it measures up to 99.0 mA non-contact, including 10 to 50 mA signals in older control systems.
The 773 also sources and measures DC voltage, so it can be used to troubleshoot voltage input and output devices that accept a 1-5 V or 0 to 10 V signal. You can detach the clamp section of the meter and use it as a remote jaw, connected to the main body by an extension cable to make it easier to take measurements in tight spaces
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,56,280
(GST inclusive price) i-
Base Value: ₹ 132440.7
-
GST: (18) % ₹ 23839.3
-
Total Value ₹ 156280
₹2,27,050.00
( - 31% OFF )
Description
Key Features
- DC voltage measurement to verify 24 V power supplies or voltage I/O signals
- Source dc voltage to test input devices that accept a 1 to 5 volt or 0 to 10 volt signal
- caled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp – Output mA
signal enables a logging DMM (289) or other device to record the 4 to 20 mA signal without breaking the loop - mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal – Apply a mA input signal to a device and measure its’ 4
to 20 mA output on devices such as valves or mA isolators - Voltage output linear ramp or 25 % step output – Automatically change the voltage output for remote testing
What's in the box?
|
Rating & Reviews
Rating
| Function | Resolution and range | Accuracy | Notes |
| mA measurement | 0 to 20.99 mA | 0.2 % + 5 counts | Measured by clamp |
| 21.0 mA to 100.0 mA | 1 % + 5 counts | ||
| mA measurement | 0 to 24.00 mA | 0.2 % + 2 counts | Measured in series with test jacks |
| mA source | 0 to 24.00 mA | 0.2 % + 2 counts | Maximum mA drive: 24 mA into 1,000 ohms |
| mA simulate | 0 to 24.00 mA | 0.2 % + 2 counts | Maximum voltage 50 V dc |
| Voltage source | 0 to 10.00 V dc | 0.2 % + 2 counts | 2 mA maximum drive current |
| Voltage measure | 0 to 30.00 V dc | 0.2 % + 2 counts | |
| General specifications 772 and 773 | |||
| Influence of earth’s field | < 0.12 mA | ||
| Battery | (4) 1.5 V, Alkaline, IEC LR6 | ||
| Working hours | 12 hours @ 12 mA source into 500 ohms | ||
| Size (HxWxL) | 772, 773: 41.3 mm x 76 mm x 248 mm (1.625 in x 3 in x 9.75 in) 771: 59 mm x 38 mm x 212 mm, (2.32 in x 1.5 in x 8.35 in) | ||
| Weight | 772, 773: 415 g (14 oz) 771: 260 g, (9.1 oz) | ||
| Operating temperature | -10 °C to 50 ºC | ||
| Storage temperature | -25 °C to 60 °C | ||
| Operating humidity | < 90 % @ < 30 °C; < 75 % @ 30 ~55 °C | ||
| Operating altitude | 0 ~ 2,000 m | ||
| Storage altitude | None | ||
| IP rating | IP 40 | ||
| Vibration requirements | Random 2 g, 5 Hz to 500 Hz | ||
| Drop test | Passes 1 meter drop test (except the jaw) | ||
| EMI, RFI, EMC | Meets applicable requirements in EN61326-1 Note: For current measurement w/jaw, add 1 mA to specification for EMC field strengths of 1 V/m up to 3 V/m | ||
| Temperature coefficients | 0.1(/°C x specified accuracy for temperature < 18 °C or > 28 °C) | ||
