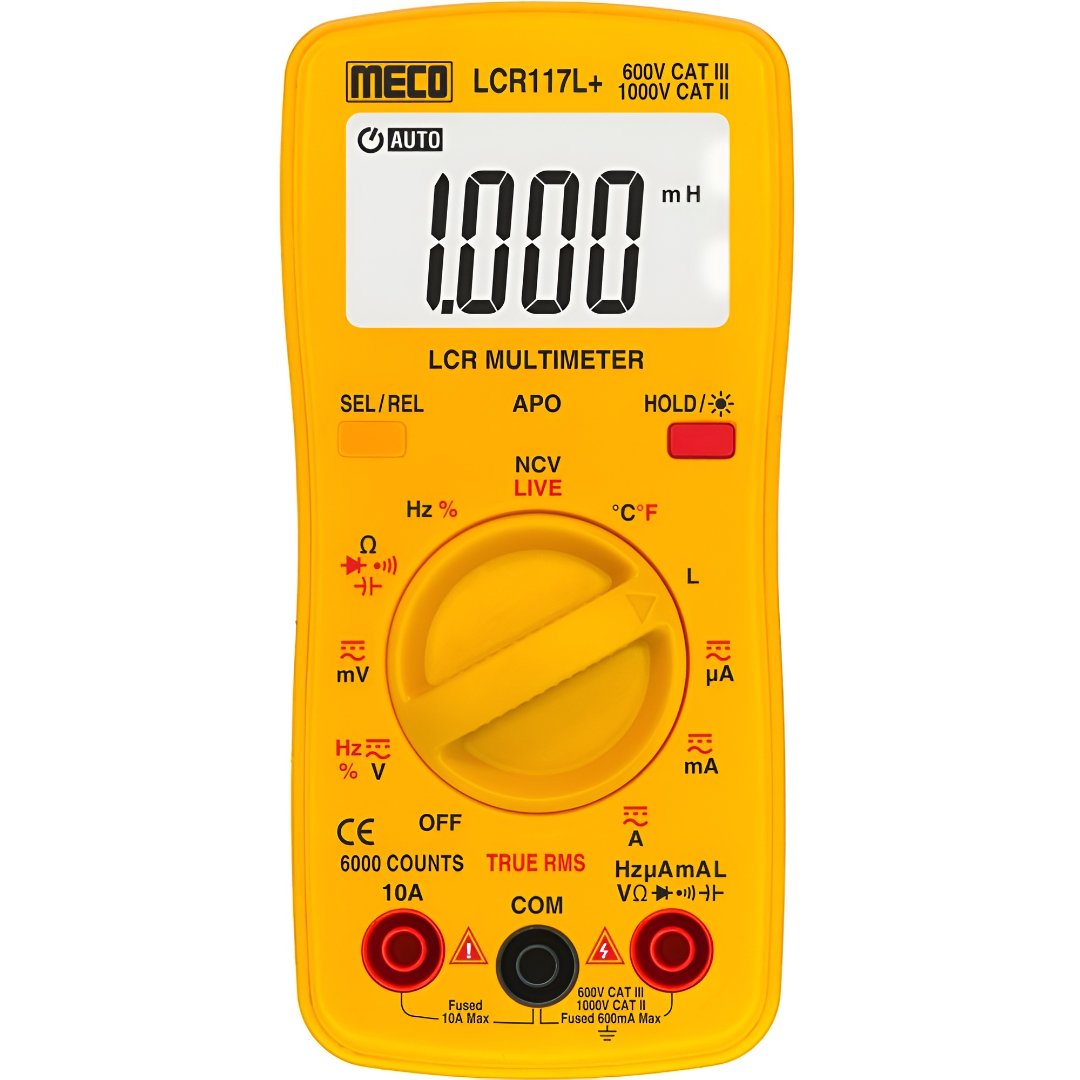

MECO LCR117L+

MECO LCR117L+
MECO LCR117L+

MECO LCR117L+

Click To Zoom

MECO LCR117L+

MECO LCR117L+

(Based On 10 Reviews)

TRMS, Auto Ranging, 3 Digits 6000 Counts LCD with Backlight, APO, Inductance, Capacitance, Resistance, Frequency, Duty Cycle, Temperature, NCV, LIVE Test, REL

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

COD AVAILABLE
CASH ON DELIVERY

COD AVAILABLE

₹ 1,899

(GST inclusive price) i
  • Base Value: ₹ 1609.3
  • GST: (18) % ₹ 289.7
  • Total Value ₹ 1899

₹3,000.00

( - 37% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • 3-5/6 Digit
  • 6000 Counts
  • TRMS Measurement
  • Auto Ranging
  • DC Voltage upto 1000V
  • AC Voltage upto 1000V
  • DC Current upto 10A
  • AC Current upto 10A
  • Resistance upto 60MΩ
  • Capacitance upto 60.00mF
  • Inductance upto 60.00H
  • Frequency upto 9.999MHz
  • Duty Cycle
  • Temperature
  • NCV Test
  • LIVE Test
  • Diode Test
  • Audible Continuity
  • Data Hold
  • REL Δ
  • LCD with Backlight
  • Auto Power Off
  • Low Battery Indication



What's in the box?

  • One Pair of Test Leads
  • Battery (installed)
  • Carrying Case
  • Instruction Manual & K Type Thermocouple (upto 260C)

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Function

 DC Voltage

Range

60 / 600mV / 6 / 60 / 600 / 1000V

Accuracy

± (0.5% rdg + 3 dgt)

AC Voltage

Range

60 / 600mV / 6 / 60 / 600 / 1000V

Accuracy

± (1.0% rdg + 3 dgt)

AC Response

1Hz ~ 1KHz

DC Current

Range

600 / 6000μA / 60 / 600mA / 6 / 10A

Accuracy

± (0.8% rdg+3 dgt) on all ranges except ± (1.0% rdg+3 dgt) on 6 / 10A

AC current

Range

600 / 6000μA / 60 / 600mA / 6 / 10A

Accuracy

± (1.0% rdg+3 dgt) on all ranges except ± (1.2% rdg+3 dgt) on 6 / 10A

AC Response

1Hz ~ 1KHz

Resistance

Range

600 / 6 / 60 / 600K / 6 / V V 60MV

Accuracy

± (0.5% rdg + 5 dgt)

Capacitance

Range

9.999 / 99.99 / 999.9nF / 9.999 / 99.99 / 999.9μF / 9.999 / 60.00mF

Accuracy

± (2.0% rdg + 5 dgt)

Inductance

Range

6.000mH, 60.00mH, 600.0mH, 6.000H, 60.00H

Accuracy

± (3.0% rdg + 10 dgt) on all ranges except ± (5.0% rdg + 50 dgt) 6.000mH / 60.00H

Frequency

Range

9.999Hz ~ 9.999MHz

Accuracy

±(0.08% rdg + 2 dgt)

Duty Cycle

Range

1% ~ 99%

Accuracy

± (0.08% rdg + 2 dgt)

Temperature

Range

-20°C ~ 1000°C /-4°F ~ 18

Accuracy

±(1.0% rdg + 5 dgt) on <400°C / <752°F ±(1.5% rdg + 15 dgt) on >400°C / >752°F

Measuring Category

CATIII600V,CATII1000V

SP Function

NCVTest,LIVETest, Diode Test, Audible Continuity, Data Hold

Power

Two 1.5VAAABattery

Low Battery

Low Battery is indicated

Battery Life

200 hours typical

Dimensions

142 x 68 x 36mm (approx.)

Weight

173gms Including Battery (approx.)
