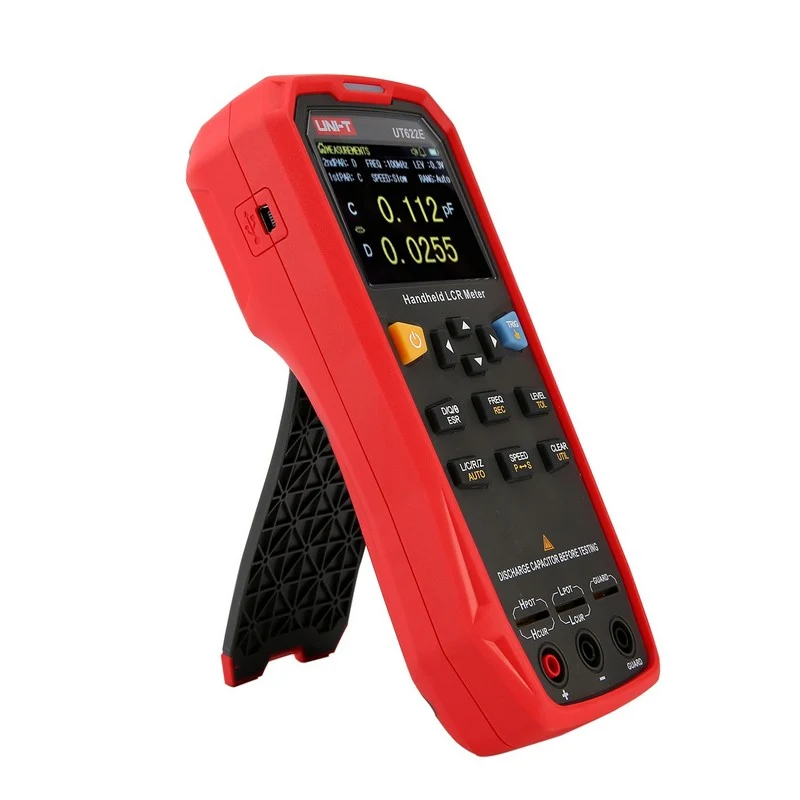

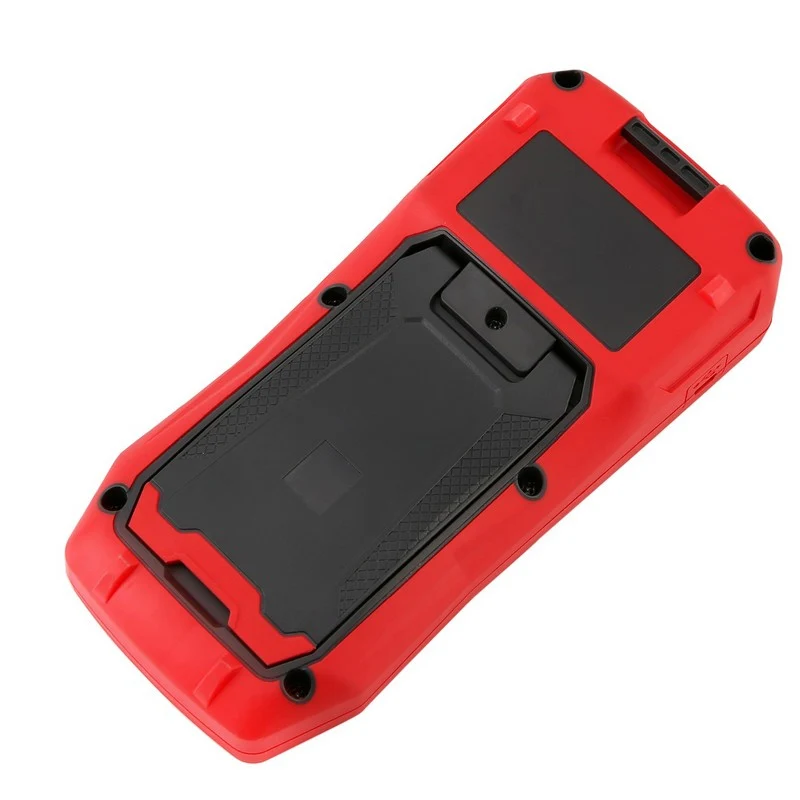

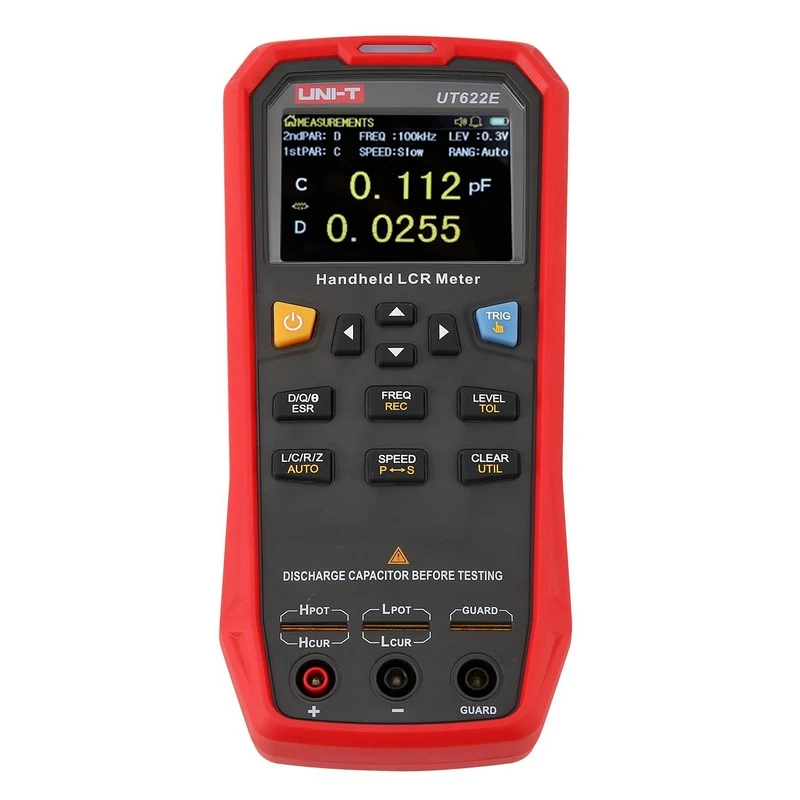

UNI-T UT622E LCR Meters

UNI-T UT622E LCR Meters
UNI-T UT622E LCR Meters
UNI-T UT622E LCR Meters

UNI-T UT622E LCR Meters

Click To Zoom

UNI-T UT622E LCR Meters

UNI-T UT622E LCR Meters

(Based On 10 Reviews)

UT622 series handheld LCR meters feature powerful functions, high accuracy, fast speed, and long standby time. With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable battery, and up to 100kHz test frequency, the meters can be used for longstanding accurate and convenient measurement in any occasion. They are suitable for the measurement and screening of inductance, capacitance, and resistance in laboratories, production lines, maintenance points, etc.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 36,610

(GST inclusive price) i
  • Base Value: ₹ 31025.4
  • GST: (18) % ₹ 5584.6
  • Total Value ₹ 36610

₹49,300.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Up to 0.1% measurement accuracy
  • igh-brightness white backlight
  • Ultra-low power consumption and long battery life (8 hours)
  • Maximum test speed: 20 times/s (UT622E)
  • Constant 1002 output impedance
  • Data hold and recording mode
  • Standard Mini-USB interface, SCPI command set



What's in the box?

  • Short circuit board (UTR-001), USB cable,5V 1A power adapter, Four-terminal Kelvin testleads (UTR-L100k-H) (UT622C/E), Alligator clip test leads with rubber plugs (UTR-002) (UT622A), English manual

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specifications

Function

UT622E

Test frequency

100Hz, 120Hz, 1kHz, 10kHz, 10

Test level

0.1Vrms, 0.3Vrms, 1Vrms

Output impedance

1000

Measurement parameters

Primary: L/C/R/Z/DCR Secondary: D/Q/0/ESR

Auto LCR

√

Test ports

Three-terminal test jacks, five-terminal test sockets

Test speed

Fast (20 times/s), medium (5 times/s), or slow (2 times/s)Fast (20 times/s), medium (5times/s), or slow (2 times/s)

DCR test speed

Fast (20 times/s), medium (5times/s), or slow (2 times/s)

Range

Auto/Hold

Tolerance range

1%~20%

Equivalent mode

Series/Parallel

Clearing correction

Open/Short circuit

Fuse of test ports

0.1A/250V

Communication interface

Mini-USB

LED alarm for tolerance

pass: green; fail: red

MAX reading of primary parameters

99999

MIN resolution

0.0001

Maximum accuracy

0.10%

L

0.00цН~99.999H

C

0.00pF~99.999mF

Z/R

0.00000~9.9999ΜΩ

ESR

0.00000~999,990

D

0.0000~9.9999

Q

0.0000~99999

Θ

-179.9°~179.9°

DCR

0.01mΩ--20.000ΜΩ

Temperature coefficient

0.1x (specified accuracy)/°C (0°C~18°C or 28°C~40°C)

Power

3.7V 1800mAh lithium polymer battery; Input: 220V (1±10%), 50Hz (1±5%); Mini-USB output: 5V, 1A

Display

2.8'TFT LCD 320 x 240
