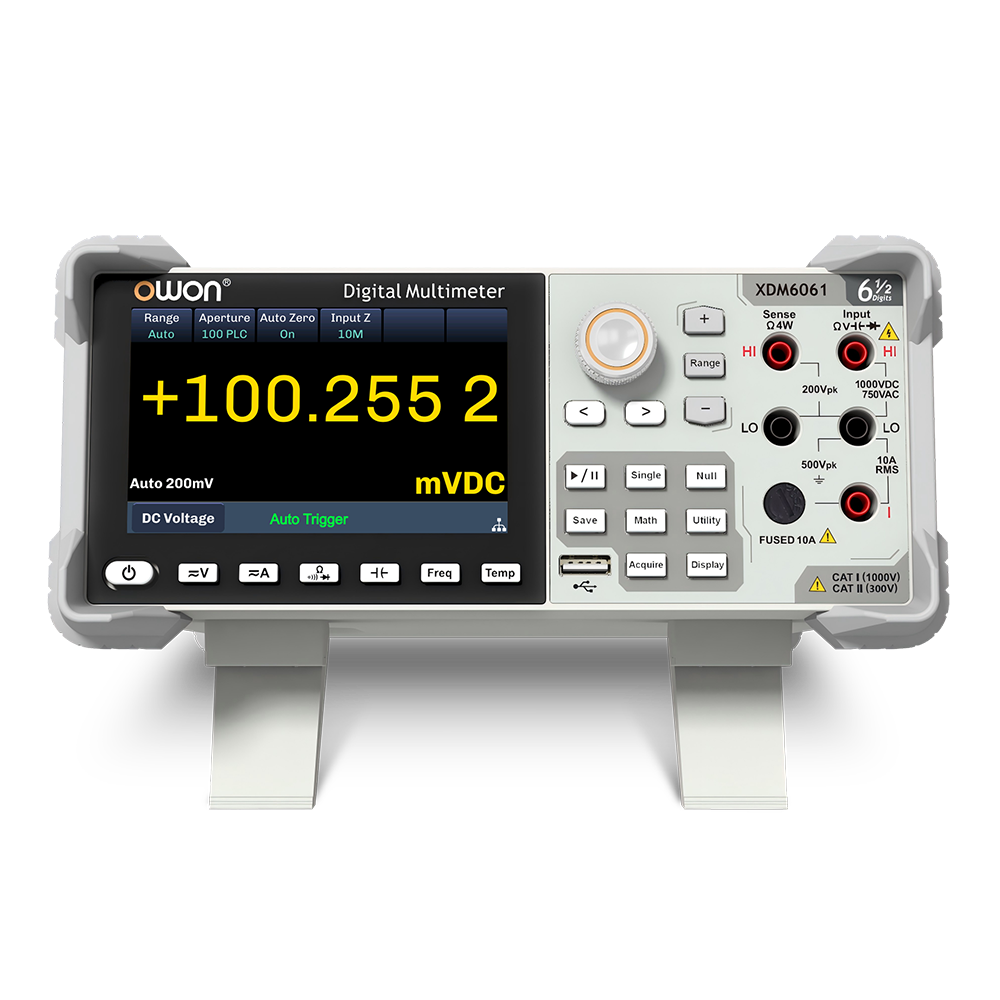

OWON XDM6061 Benchtop Multimeter - 6.5 Digit
Click To Zoom
OWON XDM6061 Benchtop Multimeter - 6.5 Digit
OWON XDM6061 Benchtop Multimeter - 6.5 Digit
Industrial use- High precision 6.5 digit benchtop multimeter
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 75,650
(GST inclusive price) i-
Base Value: ₹ 64110.2
-
GST: (18) % ₹ 11539.8
-
Total Value ₹ 75650
₹1,01,800.00
( - 26% OFF )
Description
Key Features
- True 6½-digit High Resolution, delivers up to 2,200,000 counts for precise and reliable measurements
- Wide measurement range up to 1000V / 10A
- High-speed measurement up to 10,000 rdgs/s, greatly improves testing efficiency.
- Comprehensive math functions, include Max, Min, Average, Standard Deviation,Relative Measurement, Bar Graph, Histogram, Trend Chart, dB/dBm, Limit test, and more; perform data analysis directly on the instrument without extra software
- Built-in thermocouple cold junction compensation, no need for external compensation hardware, saving accessory costs and improving temperature measurement accuracy
- Data Logger Function: records all measurement values in CSV format, with a fastest logging interval of 1ms, 2M points capacity, and expandable to 100M points via USB drive
- 2 Gb NAND Flash Storage, stores large amounts of instrument setup files and data files.
- Multiple Interfaces: USB Device / Host, LAN, RS-232; supports standard SCPI commands for easy integration into automated test systems
- 4.3-inch IPS touchscreen, intuitive operation and graphical display allow engineers to get started faster, reduce operation time, and enhance visualization experience.
Rating & Reviews
Rating
| Function | Range | Accuracy |
| DC Voltage | 200.000mV – 1000.000V (XDM6061） | 0.0035±0.0006 |
| AC Voltage (True RMS) | 200.0000mV - 750.0000V | 0.06+0.04 |
| DC Current | 200.0000μA - 10.00000A (XDM6061) | 0.050+0.003 |
| AC Current (True RMS) | 200.0000μA - 10.00000A | 0.10+0.04 |
| Resistance | 200.0000Ω - 100.0000MΩ | 0.010+0.001 |
| Diode Test | 0 - 5V | 0.010+0.020 |
| Continuity Test | 2000.0 Ω | 0.010+0.020 |
| Frequency / Period | 3Hz - 1MHz | 0.007 |
| Capacitance | 2.0000nF - 100.00mF | 1 + 0.3 |
| Temperature | thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type) | 0.16℃ |
| thermal resistance (RTD sensor conversion between Pt100 and Pt385 type) | ||
| 2-wire and 4-wire thermistors (5 kΩ 44007 type) | ||
| Mathematical Functions | Min, Max, Avg, Std Dev, dBm, dB, Limit，Relative，Histogram, Trend Chart, Bar Chart | |
| Trigger | External Trigger、VMC out | |
| Data-logger Function | ||
| Logging Duration | 1ms-3600s | |
| Logging Length | 2M points (Internal memory) | |
| General | ||
| Dimension (W x H x D) | 346mm x 260 mm x 107 mm | |
| Weight | 3.4kg (without package) |
