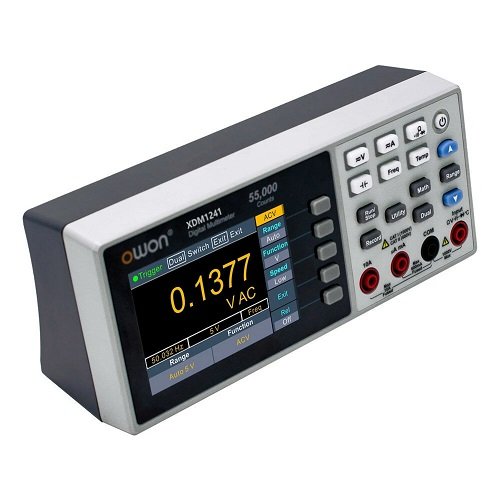

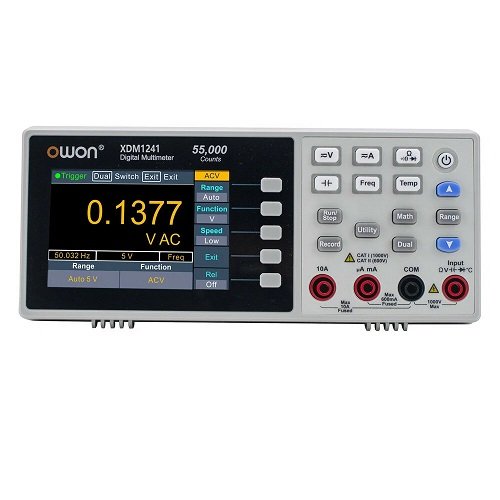

OWON XDM1241 Digital Multimeter True RMS- Mini Benchtop USB Interface With Battery
Click To Zoom
OWON XDM1241 Digital Multimeter True RMS- Mini Benchtop USB Interface With Battery
OWON XDM1241 Digital Multimeter True RMS- Mini Benchtop USB Interface With Battery
This instrument has stable performance, high accuracy, high reliability, clear reading function. Can test AC / DC current, AC / DC voltage, resistance, capacitance, etc, with diode testing, continuity, temperature and other functions.- USB Interface and Lithium battery for 8 Hours of use
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 13,350
(GST inclusive price) i₹18,000.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
DC Voltage(DCV) 50.000mV 0.001mV 0.1%+10
500.00mV 0.01mV 0.05%+5
5.0000V 0.0001V 0.05%+5
50.000V 0.001V 0.05%+5
500.00V 0.01V 0.1%+5
1000.0V 0.1V 0.1%+10
AC Voltage(ACV) 500mV-750V 20Hz~45Hz 1%+30
45Hz~65Hz 0.5%+30
65Hz~1KHz 0.7%+30
DC Current(DCA) 500uA 0.01uA 0.15%+20
5000uA 0.1uA 0.15%+10
50mA 0.001mA 0.15%+20
500mA 0.01mA 0.15%+10
5A 0.0001A 0.5%+10
10A 0.001A 0.5%+10
AC Current(ACA) 500uA-500mA / 0.5%+20
5A-10A 1.5%+20
Resistance (Ω) 500Ω 0.01Ω 0.15%+10
5KΩ 0.0001KΩ 0.15%+5
50KΩ 0.001KΩ 0.15%+5
500KΩ 0.01KΩ 0.15%+5
5MΩ 0.0001MΩ 0.3%+5
50MΩ 0.001MΩ 1%+10
Frequency (HZ) 10.000Hz-60MHz / ±(0.2%+10)
Capacitance (F) 50nF-500uF / 2.5%+5
5mF-50mF 5%+10
Diode 3.0000V 0.0001V /
Continuity 1000Ω 0.1Ω Adjustable threshold
Temperature Ktype,PT100
Maximum Display 55000 counts
Record duration 15ms-9999.999s
Record length 1,000 points
Display screen 3.7in TFT LCD, resolution is 480 x 320
Working power supply AC 90-240V/ Battery
Frequency 50/60HZ
Power 15W/ Battery
