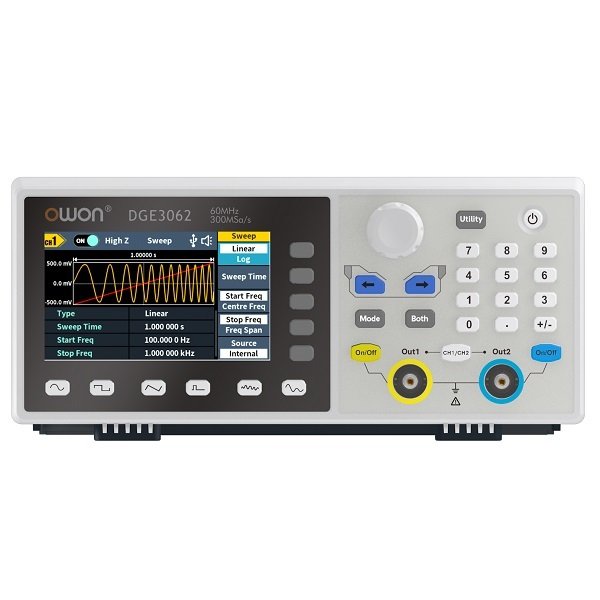

OWON DGE3062 Arbitrary Waveform Generator with frequency counter
Click To Zoom
OWON DGE3062 Arbitrary Waveform Generator with frequency counter
OWON DGE3062 Arbitrary Waveform Generator with frequency counter
Industrial uses
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 26,000
(GST inclusive price) i₹35,000.00
( - 26% OFF )
Description
Rating & Reviews
Rating
Model DGE3062
Channel 2
Frequency Output 60MHz
Sample Rate 300MSa/s
Vertical Resolution 14 bits
Waveform
Standard Waveform sine, square, pulse, ramp, noise
Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others,
total 160 built-in waveforms
Frequency (resolution 1μHz)
Sine 1μHz-60MHz
Square 1μHz ~ 20MHz
Pulse 1μHz ~ 20MHz
Ramp 1μHz ~ 2MHz
Noise 20MHz (-3dB，typical)
Arbitrary Waveform 1μHz ~10MHz
Arbitrary
Waveform Length 2 points – 100K points
Sample Rate 300MSa/s
Amplitude
into 50Ω load 1mVpp ~ 10Vpp（≤10Hz）
1mVpp ~ 5Vpp （≤60MHz）
DC Offset Range (AD+DC) ± (10 Vpk – Amplitude Vpp/2) high resistance
± (5 Vpk – Amplitude Vpp/2) 50 Ω
DC offset resolution 1mV or 4digits
Load Impedance 50Ω (typical)
DC offset Accuracy ± (1 % of |setting| + 1 mV + amplitude Vpp * 0.5%)
Modulation
Type AM、FM、PM、PWM、FSK、3FSK、4FSK、PSK、ASK、BPSK、OSK、DSB-AM、QPSK、SUM、Sweep、Burst
Frequency Counter
Function Frequency， period
Frequency Range 100mHz ~ 100MHz
Frequency Resolution 6 digits
Input / Output
Display 3.6” LCD
Input mode external modulation input,
external trigger input,
external reference clock input / output
Communication Interface USB Host, USB Device
Mechanical specifications
Dimension (W×H×D) 200 x 92 x 157mm
Weight (without package) 0.8kg
