OWON AG 1022F Arbitrary Wave Function Generator
Click To Zoom

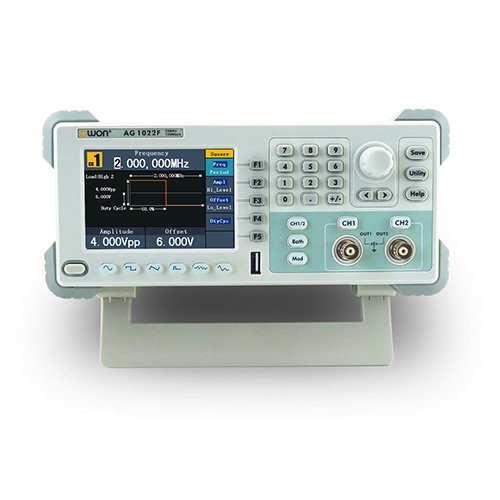

OWON AG 1022F Arbitrary Wave Function Generator
OWON AG 1022F Arbitrary Wave Function Generator
The Owon AG1022-F product is one multi-function waveform generator, working as an arbitrary waveform generator, and function generator 2 in 1.|The AG1022F waveform generator provides stable, accurate, and pure DDS signal sources, it is user-friendly UI, together with keyboard layout brings brand-new user experience into the current market. The AG1022F waveform generator supports USB storage via its USB device, and USB host communication interface, its LAN remote data-transmission gives users access to more solutions. The AG1022-F includes a frequency counter (Range: 100 MHz - 200 MHz)
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 39,920
(GST inclusive price) i-
Base Value: ₹ 33830.5
-
GST: (18) % ₹ 6089.5
-
Total Value ₹ 39920
₹53,750.00
( - 26% OFF )
Description
Key Features
- Advanced DDS technology
- Up to 125MS/s sample rate, and 1μHz frequency resolution
- Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms
- Comprehensive modulation functions : AM, FM, PM, FSK, PWM, Sweep, and Burst
- High-accuracy frequency counter integrated
- Supported SCPI
- 4 inch high resolution (480 × 320 pixels) TFT LCD display
Rating & Reviews
Rating
Channel dual
Frequency Output 25MHz
Sample Rate 125MS/s
Vertical Resolution 14 bits
Waveform: Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform: Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others,
total 26 built-in waveforms, and other user-defined arbitrary waveforms
Frequency (resolution 32 bits)
Sine 1μHz - 25MHz
Square 1μHz - 5MHz
Pulse 1μHz - 5MHz
Ramp 1μHz - 1MHz
Noise 25MHz (-3dB) (typical)
Arb 1μHz - 10MHz
Amplitude: 1m Vpp - 10 Vpp (50Ω), 1m Vpp - 20 Vpp (high impedance)
Resolution 1m Vpp or 14 bits
DC Offset Range (AD+DC) ±5V (50Ω), ±10V (high impedance)
DC Offset Range Resolution 1mV
Load Impedance 50Ω (typical)
Arbitrary Waveform
Wave Length 2 pts to 8K pts
Sample Rate 125MS/s
Vertical Resolution 14 bits
Non-volatile Memory 26 waveforms
Modulation
Modulation Waveform AM, FM, PM, FSK, Sweep, and Burst
Modulation Frequency 2mHz to 20.00KHz (FSK 1μHz - 100KHz)
Counter
Function Frequency Period, +Width, -Width, +Duty, and -Duty
Frequency Range 100mHz - 200MHz
Frequency Resolution 6 digits/s
Input / Output
Display 3.9 inch (480 × 320 pixels) TFT LCD
Type
counter, external modulation input / output, external trigger input / output,
external reference clock input / output
Communication Interface USB host, USB device, RS232
Mechanical
Dimension (W×H×D) 235 × 110 × 295 (mm)
Weight (without package) 3.00 kg
Warranty: As per Owon - 1 Year
