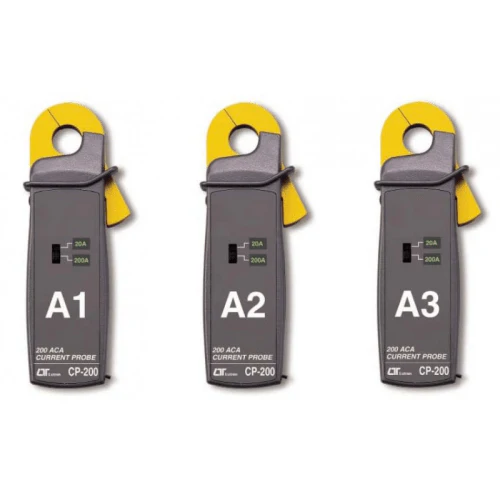

LUTRON CP-200

LUTRON CP-200
LUTRON CP-200

Click To Zoom

LUTRON CP-200

LUTRON CP-200

(Based On 10 Reviews)

The CP-2000 is a professional-grade current probe designed for high-current AC measurements in industrial, field, or laboratory settings. Offering three switchable ranges (20 A, 200 A, and 2000 A), it provides excellent flexibility with high output sensitivity and a large 51 mm jaw opening.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

LIFETIME WARRANTY
Terms & Conditions apply.

LIFETIME WARRANTY

₹ 17,700.00

(GST inclusive price) i
  • Base Value: ₹ 15000
  • GST: (18) % ₹ 2700
  • Total Value ₹ 17700

₹20,650.00

( - 14% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Selectable Ranges: 20 A / 200 A / 2000 A
  • Output Sensitivity: 100 mV/A (20 A), 10 mV/A (200 A), 1 mV/A (2000 A)
  • Output Voltage: Up to 2 V AC (depending on range)
  • Minimum Load: 100 kΩ for rated accuracy
  • Jaw Opening: Max. 51 mm (2.1 inch) diameter
  • Operation Frequency: 50/60 Hz
  • Operating Temperature: 0 to 50°C (32 to 122°F)
  • Frequency Range: 45 Hz to 400 Hz
  • Phase Error: Less than ±1° at 50/60 Hz
  • Accuracy: ±1% Full Scale
  • No calibration required when replacing the probe
  • Banana Plug Output: Durable 4-meter cable (13.17 feet)
  • Battery-Free: Powered directly from compatible meters (DC 8V ±1V)
  • Enclosure Material: UL 94-V0 flame-retardant rated
  • Safety Rating: IEC 1010, CAT III 600V
  • Banana Plug Output: Durable 4-meter cable (13.17 feet)
  • Battery-Free: Powered directly from compatible meters (DC 8V ±1V)
  • Enclosure Material: UL 94-V0 flame-retardant rated
  • Safety Rating: IEC 1010, CAT III 600V
  • Dimensions: 240.8 × 90.9 × 38.3 mm (9.48 × 3.58 × 1.5 inch)
  • Weight: 586 g (1.29 lb)
  • Cable Length: 4 meters
  • DC Plug Size: 5.5 mm x 2.5 mm



What's in the box?

  • Operating Manual – 1 PC
  • CP-2000 Current Probe

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

ELECTRICAL SPECIFICATIONS (23± 5 )
Measuremen ranges20 A/200 A, switch selectable
Output sensitivity10 mV/A, 1 mV/A AC coupled.
Accuracy± 1% F.S. F.S. : Full scale of range * 50/60 Hz 23 ± 5 ℃
Frequency range45 to 400 Hz. Accuracy tested under 50/60 Hz
Phase error< ± 1° * 50/60 Hz.
Minimum load100 K ohm for specified accuracy
Enclosure materialUL 94-V0 rated.
SafetyIEC 1010, Categories III 600V
Power Supply

Power supply is from the meter (DW-6093, DW-6095 ), battery is not necessary.

Power supply voltage from DW-6093, DW-6095 is DC 8V± 1V
