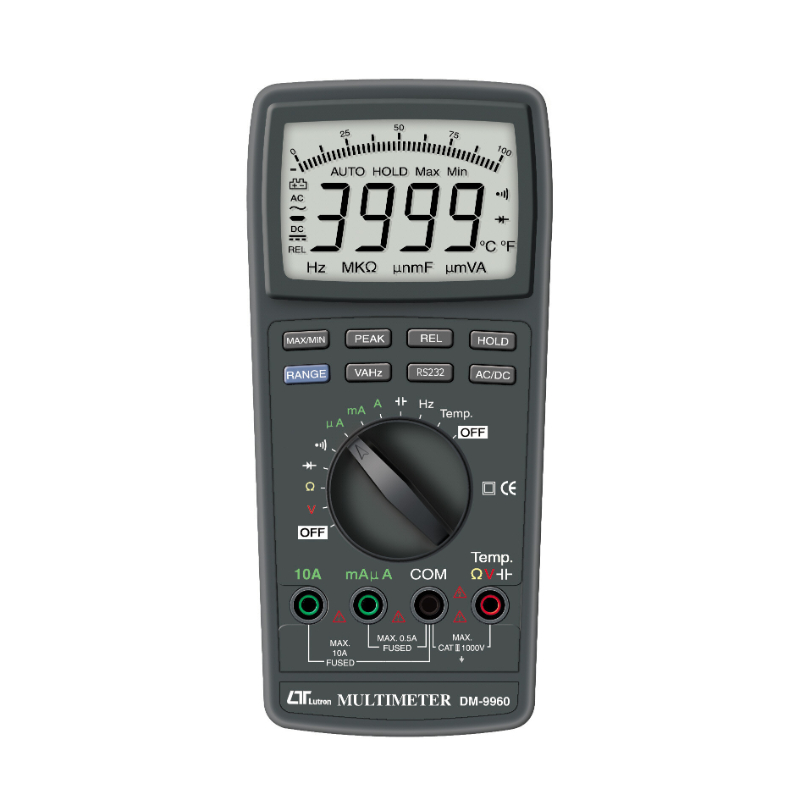

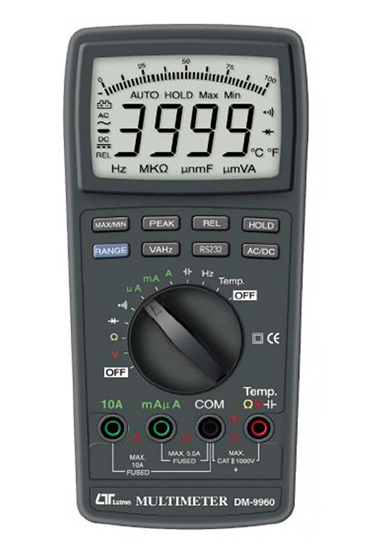

LUTRON DM-9960 Multimeter

LUTRON DM-9960 Multimeter
LUTRON DM-9960 Multimeter

LUTRON DM-9960 Multimeter

Click To Zoom

LUTRON DM-9960 Multimeter

LUTRON DM-9960 Multimeter

(Based On 10 Reviews)

Lutron DM-9960 is digital multimeter . Measures voltage(AC/DC) up to 1000V, current(AC/DC) up to 10A, rezistance up to 40MΩ, frequency 40MHz, capacity 40mF, temperature -20°C - 750°C.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 5,460

(GST inclusive price) i
  • Base Value: ₹ 4627.1
  • GST: (18) % ₹ 832.9
  • Total Value ₹ 5460

₹6,370.00

( - 14% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Meet IEC 1010 CAT III 1000 V safety requirement
  • Large LCD display with bar graph indicator
  • Multi function measurement. DCV, ACV, DCA, ACA Resistance, Capacitance, Frequency, Temperature,Diode, Continuity beeper
  • Max./Min., Peak value, Relative, Data hold.
  • Auto range with manual range selection
  • VAHz button, when execute the ACV, ACA function also can measure the frequency of signal.
  • 4000 counts A/D, high resolution.
  • 10 M ohm impedance for voltage circuit
  • Uses durable, long-lasting components, enclosed in strong, light weight ABS-plastic housing.
  • Full line optional adapters : Clamp adapter Tacheometer adapter, Pressure adapter, Humidity Adapter, Soud level adapter, Anemometer adapter,Light adapter, EMF adapter.



What's in the box?

  • Instruction Manual............................ 1 PC
  • Red and Black Test Leads.................. 1 PC
  • 0.5 Amp Spare Fuse.......................... 1 PC



Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

ELECTRICAL SPECIFICATIONS (23± 5 )
DC Voltage

Range 400.0 mV / 4 V/ 40 V/ 400 V / 1000 V

Resolution 0.1 mV /1 mV /10 mV /100m V/1 V

Accuracy ± ( 0.5% + 2d )- 400 mV ± ( 0.8% + 1d )- 4 V, 40 V, 400 V, 1000 V

Input impedance 10 M ohm.

Over load protection 00 DCV, 350 ACV - 200 mV range. 000 DCV, 1000 ACV - other ranges

AC Voltage

Range 400.0 mV / 4 V/ 40 V/ 400 V / 1000 V

Resolution 0.1 mV /1 mV /10 mV /100m V/1 V

Accuracy ± ( 1% + 2d ) * Spec. are tested under 50/60 Hz

Input impedance 10 M ohm.

Over load protection ± 500 DCV, 350 ACV - 200 mV range.± 1000 DCV, 1000 ACV - other ranges.

DC Current, AC Current

Range 10 A/400 mA/40 mA/4000 uA/400 uA

Resolution 10 mA/0.1 mA/0.01 mA/1 uA/0.1 uA

Accuracy 400 uA : ± ( 1 % + 2d ) 4000 uA : ± ( 1.5 % + 2d ) 40 mA : ± ( 1 % + 2d )

Over load protection 10A range : 10A fuse. uA, mA range : 500 mA fuse

Diode ( Forward voltage )

Range 2 V

Accuracy ± ( 0.5% + 2d )

Continuity BeeperBeeper will sound if measured resistance less than 20 hom
CAPAITANCE

Range 4 nF/40 nF/400 nF/4 uF/40 uF/400 uF 4 mF/40 mF

Resolution 1 pF/10 pF/0.1 nF/1 nF/10 nF/0.1 uF 1 uF/10 uF

Accuracy ± ( 3 % + 1d )

Frequency

Range 4 KHz/40 KHz/400 KHz 4 MHz/40 MHz

Resolution 1 Hz/10 Hz/0.1 KHz/1 kHz/0.01 MHz/0.1 MHz

Accuracy ± ( 0.5% + 2d )

OHMS

Range 400/4 K/40 K/400 K/4 M/40 M ohm

Resolution 0.1/1/10/100/1 K/10 K ohm

Accuracy 400 ohm : ± ( 1 % + 2d ) 4K/40K/400K/4 M : ± ( 1.5 % + 2d )

Over load protection ± 350 DCV, 350 ACV

Temperature

Range -20 to 750 ℃ ℃

Resolution 1 ℃

Accuracy -20 to 300 : ± ( 1% + 2 301 to 750 : ± 3% reading
