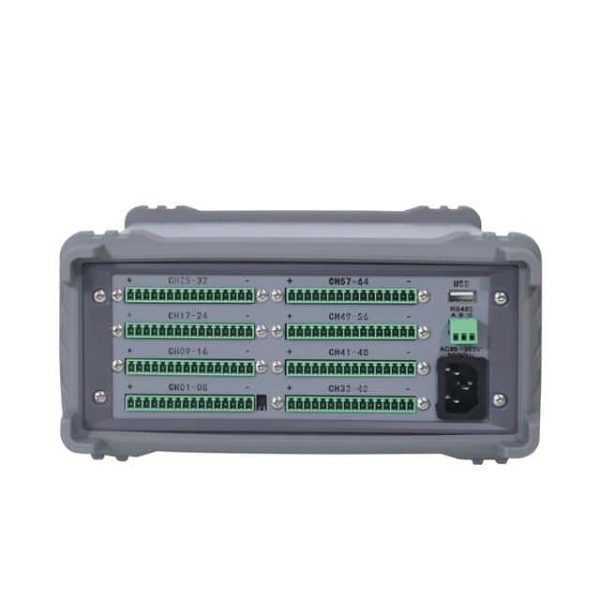

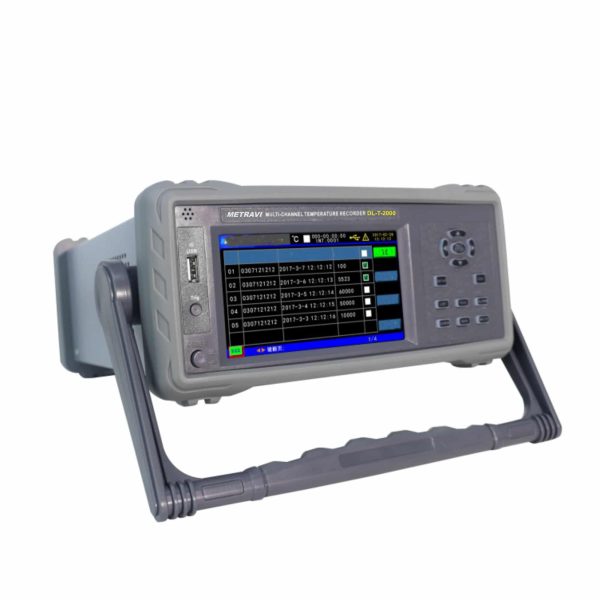

METRAVI DL-T-2000 Multi Channel Temperature Data Logger
Click To Zoom
METRAVI DL-T-2000 Multi Channel Temperature Data Logger
METRAVI DL-T-2000 Multi Channel Temperature Data Logger
32 channels displayed simultaneously, 1 second Interval, can record for 97 days. List, Curve, Histogram display. Customise channel names & export EXCEL files, Multistage Alarms, Double Relay Output, supports Multiple Sensor Inputs: K, J, E, T, N, S, R, B. 5″ true colour touchscreen, Standard model with 8 channels.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 63,250
(GST inclusive price) i-
Base Value: ₹ 53601.7
-
GST: (18) % ₹ 9648.3
-
Total Value ₹ 63250
₹90,450.00
( - 30% OFF )
Description
Key Features
- Can be used as a U disk
- 32 channels displayed simultaneously
- One-second interval
- Can record for 97 days
- One click fast recording
- List, curve, histogram display
- Remote Firmware upgrade
- Strong anti-jamming
- Record files can be exported or deleted at any time
- Customizable channel names
- Export EXCEL files
- Multistage alarm function
- Double relay output
- Can use 8 different thermocouples at the same time
What's in the box?
|
Rating & Reviews
Rating
| Mode of display | 5" TFT truecolour LCD industrial touch screen 854*480pixels |
| Form of display | Real-time list, curve(historical curve), bar chart, current alarm (historical alarm), file record list. |
| Query of records | View & record curve, historical alarm record, computer software analysis query. |
| Number of channels | Each module supports 8 channels and a maximum of 64 channels |
| Thermoelectric couples | K, J, E, T, N, S, R, B |
| Basic accuracy | 0.2°C+2 digits (without thermocouple error) |
| Range of measurement | -200 ~ 1820°C (based on the thermocouple indexing range) |
| Cold end compensation | Accuracy :0.5°C |
| Resolution | 0.1°C |
| Correction | Independent error correction per channel Y=kx+b(x= measured value) |
| Number of files | 64 (loop records) |
| File capacity | One file can record 130,000 groups (without distinguishing the number of channels). |
Usb flash drive interface | Export record file, second change U disk function (instrument is U disk), directly view the files and software. |
| Recording Duration | The one-second recording interval can be consecutively recorded for 97 days. |
| Rate of sampling | Each channel fast :0.1S, slow: 1S |
Isolation between channels | AC/DC up to 350V,high voltage live measurement, super anti-interference ability |
| Control output | Two sets of independent relay outputs are (H/L) and (HH/LL) relaysvv |
| Alarm sound | All the buzzer sounds (anyalarm sounds, can be muted) |
| Interval of recording | 1 to 9999 seconds forany setting |
Communication interface | USB and RS485 ports are standard |
| Power supply power | AC85-265V±10%, frequency 50Hz/60Hz <10W |
| Thermoelectric couple | Each channel is equipped with a 2mK thermocouple |
| Size | Width 220X deep 293X height (includingfeet)106mm, the size is about the size of A4 paper |
| Weight | About 3Kgs (configuration varies) |
| Environmental Conditions | 5 ~ 40°C, 20% ~ 80%RH(no condensation) |
