Metravi - PRO 20PV Solar MPPT Meter
Click To Zoom

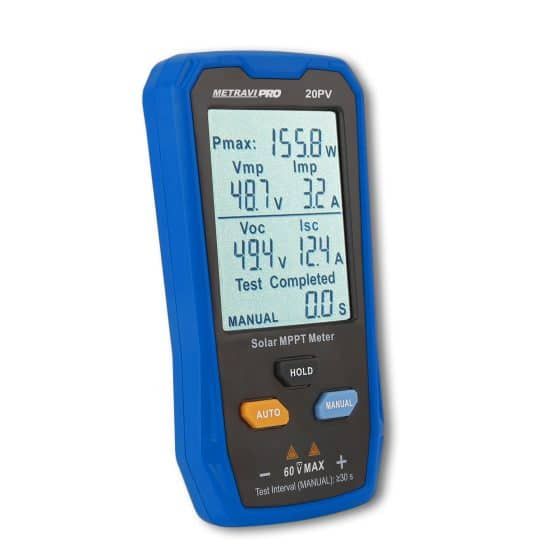

Metravi - PRO 20PV Solar MPPT Meter
Metravi - PRO 20PV Solar MPPT Meter

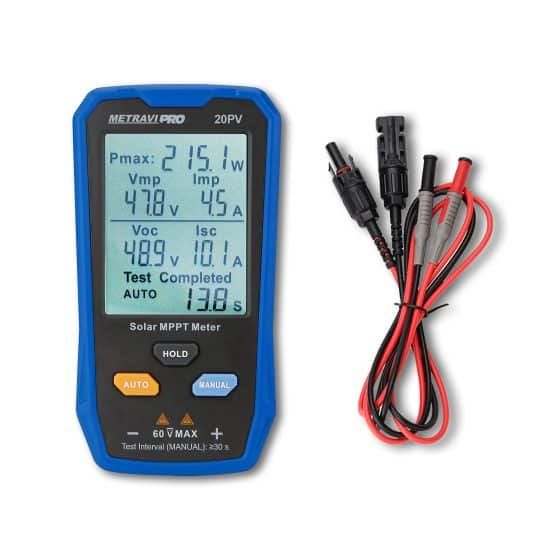

Meter to test Solar Panels. Measures Maximum Power, Peak Power Voltage, Peak Power Current, Open Circuit Voltage and Short Circuit Current. Large, backlit, multi-display. Comes with MC4 test leads and magnetic holder.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 5,300
(GST inclusive price) i-
Base Value: ₹ 4491.5
-
GST: (18) % ₹ 808.5
-
Total Value ₹ 5300
₹7,560.00
( - 30% OFF )
Description
Key Features
- Maximum Power Test (Pmax): 5～800W
- Peak Power Voltage (Vmp): 12～ 60V
- Peak Power Current (Imp): 0～35A
- Open Circuit Voltage (Voc): 12～60V
- Short Circuit Current (Isc): 0～35A
- Large screen and multiple result display: A single measurement that displays all essential test values can significantly enhance work efficiency.
- No batteries needed, powered by the solar panel: There is no requirement for batteries as the measurement can be effortlessly performed for extended periods.
- Equipped with MC4 test lead: With the MC4 connector already included, there is no need for additional solar panel connectors. This enables quick and efficient measurements to be performed effortlessly.
- Portable and convenient: With its portable and lightweight design, this meter provides operators with convenience and ease of use, making it an incredibly versatile and indispensable tool for a wide range of tasks.
- Certifications: CE, cETLus, RoHS

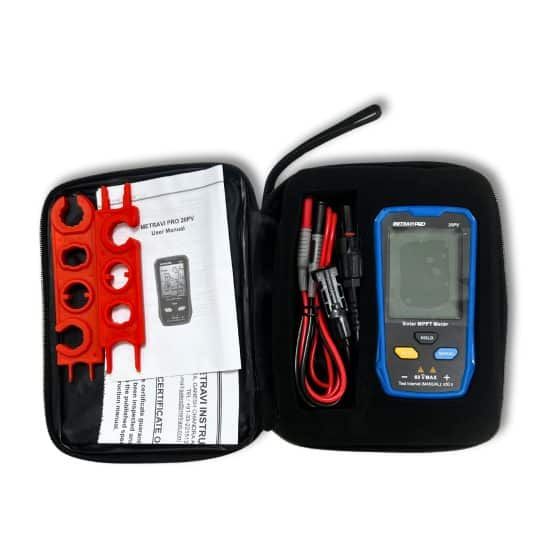

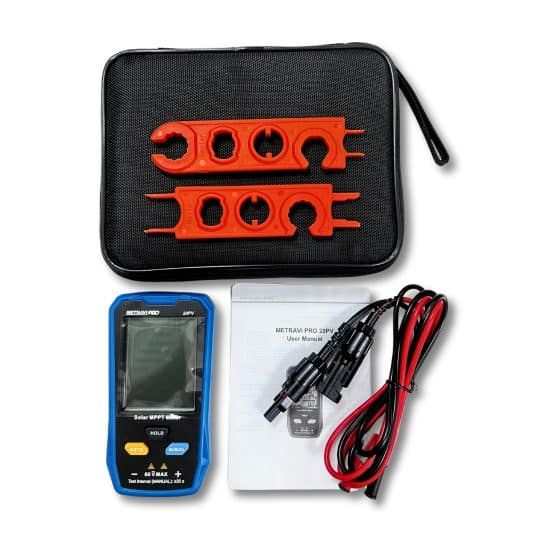

What's in the box?
|
Rating & Reviews
Rating
| SPECIFICATION | RANGE | ACCURACY | RESOLUTION |
| Max power measurement | 5～800W | ±(1.0%＋10) | 0.1W |
| Max power current(DC) | 0～35A | ±(1.5%＋5) | 0.1A |
| Max power voltage(DC) | 12～60V | ±(1.5%＋5) | 0.1V |
| Open circuit current(DC) | 12～60V | ±(1.5%＋5) | 0.1V |
| Short circuit current(DC) | 0～35A | ±(1.5%＋5) | 0.1A |
GENERAL
| Display | Large LCD (52 x 66 mm) |
| Protection | Protection against reverse polarity connections Over-voltage protection Over-current protection Over-temperature protection Over-power protection |
| Test Modes | Manual / Auto |
| Over Range Indication | Available |
| Data Hold | Available |
| Power Supply | No battery needed, powered by the solar panel under test |
| Certifications | CAT 0 60V, CE, cETLus, RoHS, Pollution Degree 2 |
| Drop Proof | 1m |
| Operating Altitude | ≤ 2000m |
| Operating Temperature | 18°C to 28°C (64°F to 82°F) |
| Storage Temperature | -10°C to 50C (14F to 122°F) |
| Relative Humidity | ≤75% RH (0° to 30°C); ≤50% RH (30° to 40°C) |
| Dimensions | 142 x 76 x 22 mm |
| Weight | Approx. 154 gms |
