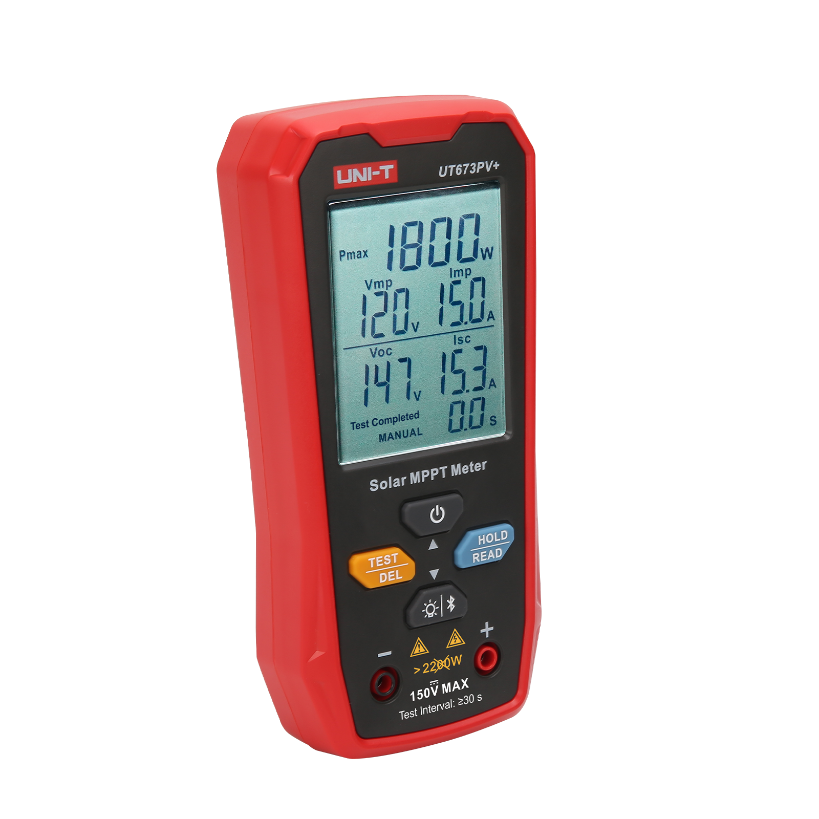

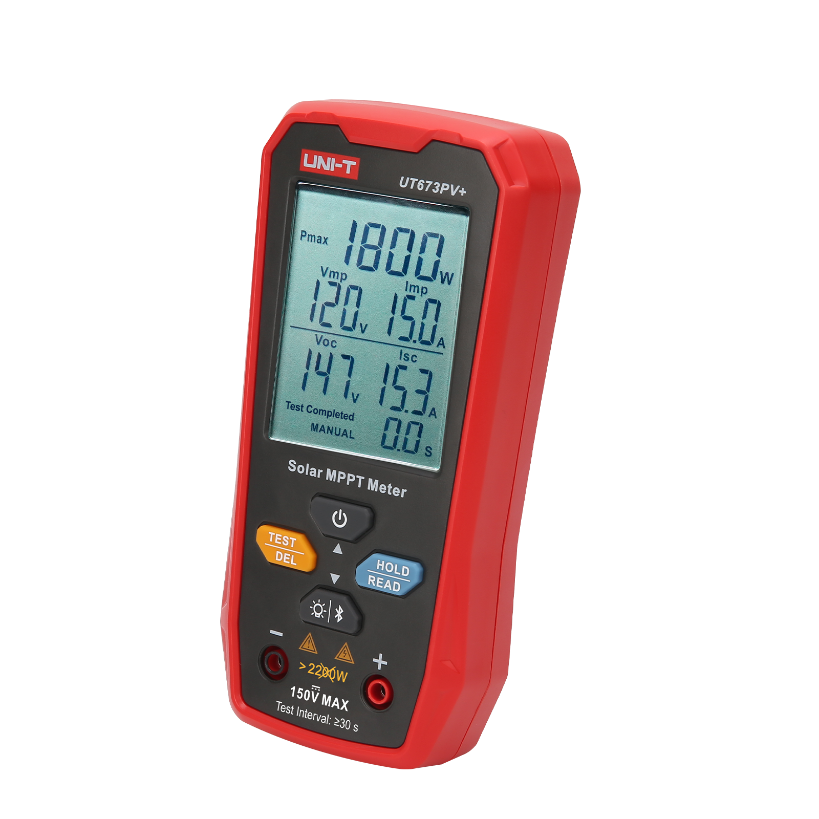

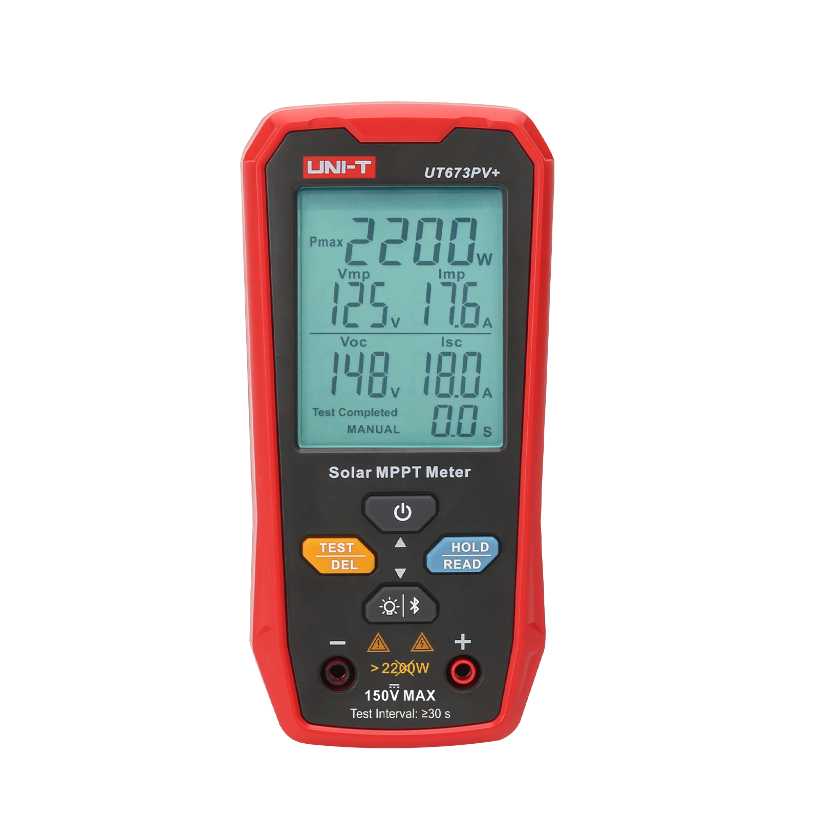

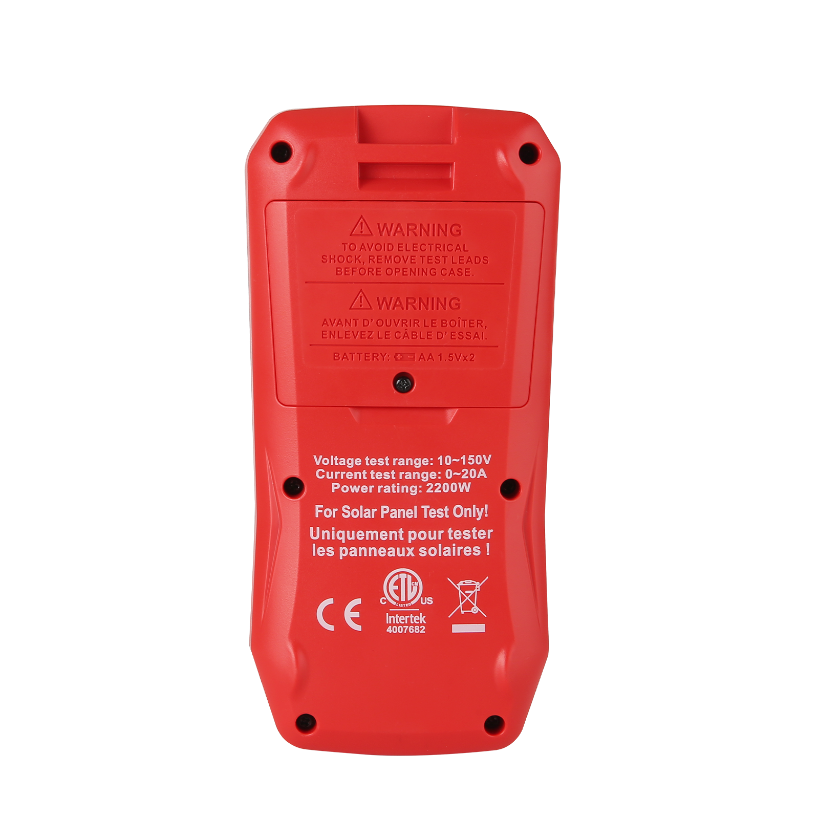

UNI-T UT673PV+ Solar MPPT Meter
Click To Zoom
UNI-T UT673PV+ Solar MPPT Meter
UNI-T UT673PV+ Solar MPPT Meter
The UT673PV series solar MPPT meters test solar panels for maximum power, voltage, current to find the abnormalities.
With a large screen, automatic measurement, and portable design, it enhances efficiency for photovoltaic industry professionals and users.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 7,750
(GST inclusive price) i-
Base Value: ₹ 6567.8
-
GST: (18) % ₹ 1182.2
-
Total Value ₹ 7750
₹10,400.00
( - 25% OFF )
Description
Key Features
- Maximum power test (Pmax) 5～2200W
- Peak power voltage (Vmp) 10～150V
- Peak power current (Imp) 0～20A
- Open circuit voltage (Voc) 10～150V
- Short circuit current (Isc) 0～20A
- Large screen and multiple result display
- Bluetooth App
- Equipped with an MC4 test lead
- Power supply: 1.5V AAA *3
- Portable and convenient
- CAT 0 150V
What's in the box?
|
Rating & Reviews
Rating
Technical Specifications | ||
Function | UT673PV+ | Accuracy |
| Pmax | 5～2200W | ±(1.0%＋10) |
| Imp | 0～20A | ±(1.5%＋5) |
| Vmp | 10～150V. | ±(1.5%＋5) |
| Voc | 10～150V. | ±(1.5%＋5) |
| Isc | 0～20A | ±(1.5%＋5) |
| Display | Large LCD (52*66mm) | |
| Reverse polarity connect protection | ✔ | |
| Overvoltage protection | ✔ | |
| Overcurrent protection | ✔ | |
| Over temp. protection | ✔ | |
| Overpower protection | ✔ | |
| Manual MPPT test | ✔ | |
| Bluetooth app | ✔ | |
| Data hold | ✔ | |
| Data storage | ✔ | |
| Power supply | 1.5V AAAx3 | |
| Category rating | CAT 0 150V | |
