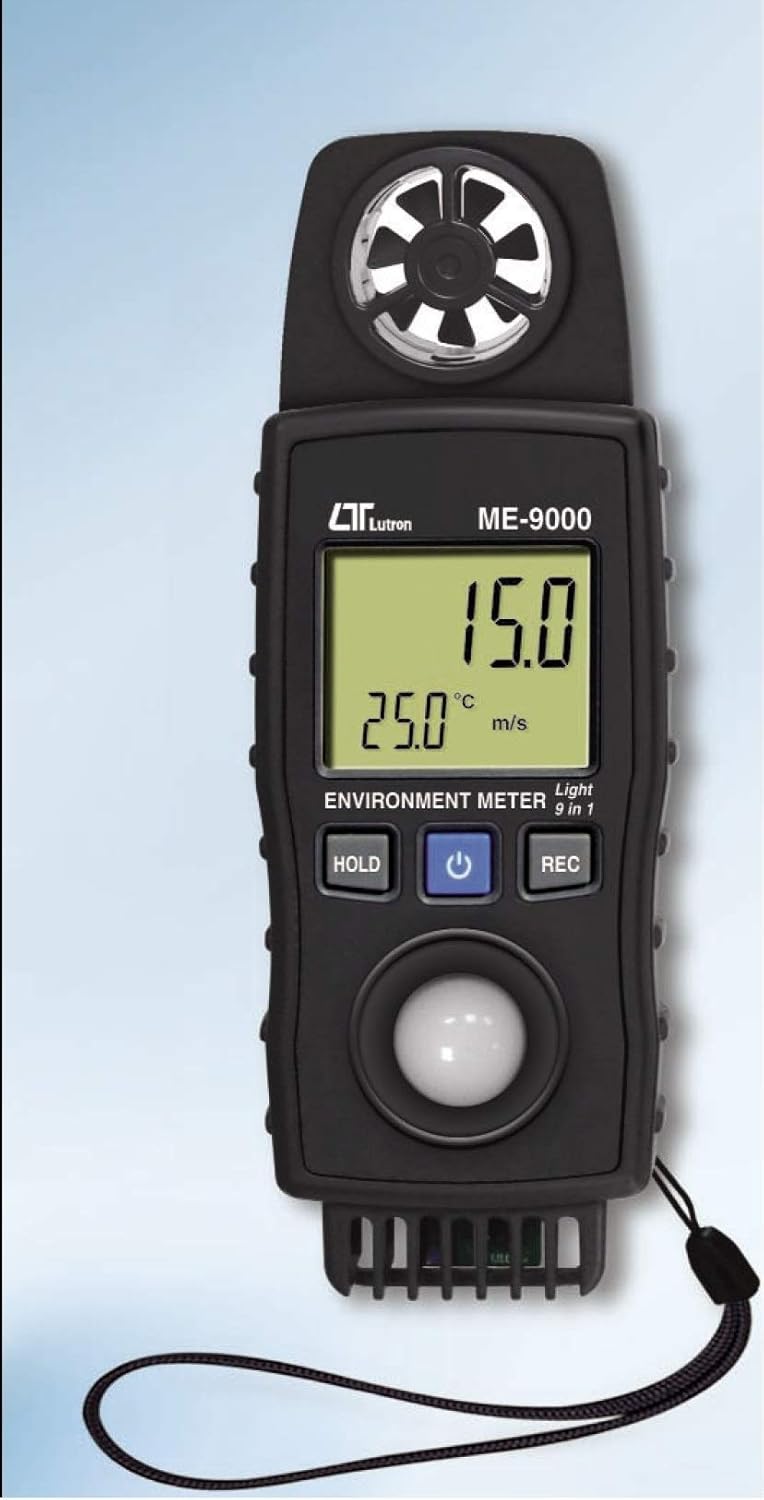

LUTRON ME-9000 Multifunction Environment Meter
Click To Zoom
LUTRON ME-9000 Multifunction Environment Meter
LUTRON ME-9000 Multifunction Environment Meter
The Lutron ME-9000 is a versatile multifunction environment meter combining five measurements in one device – light, sound level, humidity, temperature, and air velocity. Compact, accurate, and easy to operate, it is ideal for environmental monitoring, industrial safety, HVAC applications, and laboratory use.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 6,500.00
(GST inclusive price) i₹8,590.00
( - 24% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Display | 8 mm LCD display |
| Measurement |
( optional Temp. probe) |
Operating Humidity | Max. 80% RH. |
Operating Temperature | 0 to 50 ℃ ( 32 to 122 ℉ ) |
Over Input Display | Indication of "------- " |
| Power Supply | UM4-AAA DC 1.5 V battery x 3 PCs. |
Power Consumption | Approx. DC 5 mA |
| Weight | 160g (batteryincluded) |
| Dimension | HWD 120 x 45 x 20 mm (4.7 x 1.8 x 1.2 inch). |
Standard Accessory | Instruction Manual |
Optional Accessories | Type K Temp. probe : TP-01, TP-02A,TP-03, TP-04, TP-05 |
light
| Unit | Range | Resolution | Accuracy |
| Lux | 0 to 2,200Lux | 1 Lux | ± 5% rdg ± 8 dgt |
| 1,800 to 20,000Lux | 10 Lux | ||
| Ft-cd | 0 to 204.0 Fc | 0.1 Ft-cd | |
| 170 to 1,860 Fc | 1 Ft-cd | ||
| Remark : Ft-cd : feet candle | |||
Air Flow
| Unit | Range | Resolution |
| CMM | 0.024 to 36000 | 0.001/0.01/0.1/1 |
| CFM | 0.847 to 1271300 | 0.001/0.01/0.1/1/10 (x10)/100 (x100) |
Dew point Temp
| Unit | Range | Resolution | Remark |
℃ | -25.3 to 49.0℃ | 0.1 ℃ | * Calculate from the humidity/Temp. value |
| ℉ | -13.5 to 120.0℉ | 0.1 ℉ | |
| Remark : Please refer to http://en.wikipedia.org/wiki/Dew_point | |||
Wet bulb Temp
| Unit | Range | Resolution | Remark |
℃ | -5.4 to 49.0 ℃ | 0.1 ℃ | * Calculate from the humidity/Temp. value |
| ℉ | 22.2 to 120 ℉ | 0.1 ℉ | |
Remark : Please refer to http://en.wikipedia.org/wiki/Wet-bulb_temperature | |||
Heat index
| Unit | Range | Resolution | Accuracy |
℃ | 0 to 100.0 ℃ | 0.1 ℃ | ± 2.0 ℃ |
| ℉ | 32 to 212 ℉ | 0.1 ℉ | ± 3.6 ℉ |
Effects of the heat index (shade values)
| Celsius | Fahrenheit | Notes |
| 27– 32 ℃ | 80– 90 ℉ | Caution : Fatigue is possible with prolonged exposure and activity. Continuing activity could resultin heat cramps |
| 32– 41 ℃ | 90– 105 ℉ | Extreme caution : Heat cramps, andheat exhaustion are possible. Continuing activity could result in heat stroke |
| 41– 54 ℃ | 105– 130 ℉ | Danger : Heat cramps, and heat exhaustion are likely ; heat strokeis probable withcontinued activity |
| over 54 ℃ | over 130 ℉ | Extreme danger : Heat stroke is imminent |
Remark : Exposure to full sunshine can increase heat index values by up to 8 ℃ ( 14℉ ). | ||
Air velocity
| Unit | Range | Resolution | Accuracy |
ft/min | 80 to 3937 ft/min | 1 ft/min |
± 3% F.S. @ F.S.: full scale |
m/s | 0.4 to 20.0 m/s | 0.1 m/s | |
km/h | 1.4 to 72.0 km/h | 0.1 km/h | |
MPH | 0.9 to 44.7 mile/h | 0.1 MPH | |
knots | 0.8 to 38.8 knots | 0.1 knots | |
| Temp. | 0 to 50 ℃ | 0.1 ℃ | |
| 32 to 122 ℉ | 0.1 ℉ | ||
Remark : ft/min : feet perminute MPH : miles per hour m/s : meters per second knots : nautical miles per hour km/h :kilometers per hour | |||
Humidity/Temp
Unit | Range | Resolution | Accuracy |
% RH | 10 to 95 %RH | 0.1 %RH | < 70% RH : ± 4 %RH ≧70% RH : ± ( 4 %rdg+1.2 %RH) |
| Temp. | 0 to 50 ℃ | 0.1 ℃ | ± 1.2 ℃ ± 2.5 ℉ |
| 32 to 122 ℉ | 0.1 ℉ |
Wind chill
| Unit | Range | Resolution | Accuracy |
℃ | -9.4 to 44.2℃ | 0.1 ℃ | ± 2.0 ℃ |
| ℉ | 15.0 to 112.0℉ | 0.1 ℉ | ± 3.6 ℉ |
Remark :
| |||
Type K Thermometer
| Unit | Range | Resolution | Accuracy |
℃ | -148 to 2372℉ | 1 ℃ | ± (1%rdg + 2℉) |
| ℉ | -100 to 1300℃ | 1 ℉ | ± (1%rdg + 1℃) |
is optional, not included | |||
