Metravi DDS-1005 DDS Function Generator
Click To Zoom

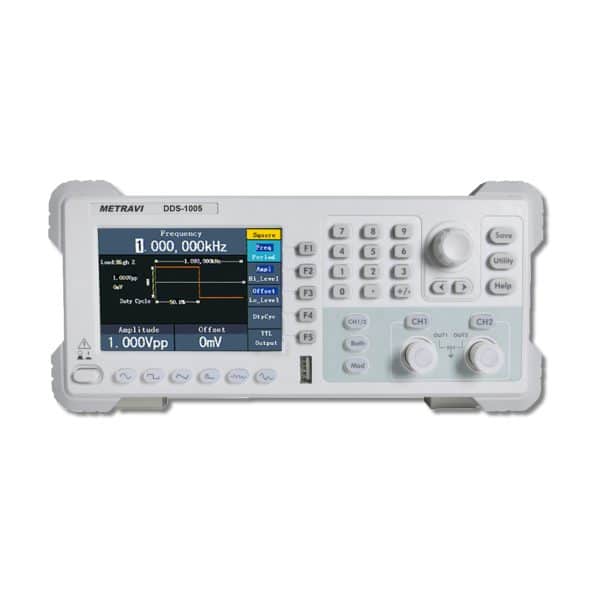

Metravi DDS-1005 DDS Function Generator
Metravi DDS-1005 DDS Function Generator
5 MHz DDS Function generator, 125MSa/s Sampling Rate, 1 μHz Frequency resolution, 14 bits Vertical resolution, 45 built-in waveforms and user defined arbitrary waveform, USB connector
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 26,435
(GST inclusive price) i-
Base Value: ₹ 22402.5
-
GST: (18) % ₹ 4032.5
-
Total Value ₹ 26435
₹37,800.00
( - 30% OFF )
Description
Key Features
- 4 inch, high-resolution (480×320 pixels) TFT LCD display
- Advanced DDS technology
- Max. Sample rate: 125 MSa/s
- Frequency resolution: 1 μHz
- Vertical resolution: 14 bits
- 8192 waveform record length
- Abundant waveform output: 5 basic waveforms and 45 built-in arbitrary waveforms output
- Exponential rise, Exponential fall, Sin(x)/x x, Staircase, etc.
- 45 built-in waveforms and user defined arbitrary waveform
- Abundant modulation functions along with output liner/logarithm sweep and pulse string waveform ( )
- Standard interface: USB (type B) connector
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Channel | Single + Trigger |
| Frequency Output | 5 MHz |
| Sample Rate | 125MS/s |
| Vertical Resolution | 14 bits |
| Standard Waveform | Sine, Square, Pulse, Ramp and Noise |
| Arbitrary Waveform | Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave and others, total 45 built-in waveforms and user-defined arbitrary waveform |
| Sine | 1μHz - 5MHz |
| Square | 1μHz - 5MHz |
| Pulse | 1μHz - 5MHz |
| Ramp | 1μHz - 1MHz |
| Noise | 5MHz (-3dB) (Typical) |
| Arb | 1μHz - 5MHz |
| Amplitude | 1m Vpp - 12.5 Vpp (50Ω), 1m Vpp - 25 Vpp (High Impedance) |
| Resolution | 1m Vpp, or 4 digits |
| DC Offset Range (AD+DC) | ±6.25V (50Ω), ±12.5V (High Impedance) |
| DC Offset Range Resolution | 1mV or 4 digits |
| Load Impedance | 50Ω (Typical) |
| Wave Length | 2 pts to 8K pts |
| Sample Rate | 125MS/s |
| Vertical Resolution | 14 Bits |
| Non-Volatile Memory | 64M Bytes |
| Input Impedance | 50 kΩ |
| Max Input Voltage | 2.2 Vpp |
| Output Impedance | <2 Ω |
| Max Output Voltage | 22 Vpp |
| Output Slew Rate | 10 V/us |
| Max Output Power | 10 W |
| Gain | X 10 |
| Offset | <7% |
| Bandwidth (At Full Power) | DC 100kHz |
| Display | 4 inch (480 x 320 Pixels) LCD |
| Type | External Reference Clock Input |
| Communication Interface | USB Device |
| Dimension (W x H x D) | 235 x 110 x 295 (mm) |
| Device Weight | 3.00 kg |
