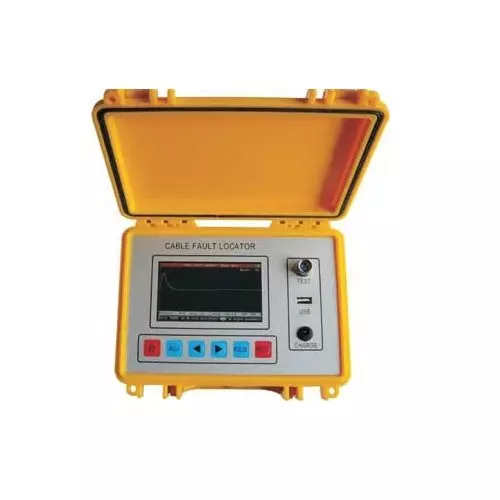

Kusam Meco KM CFPL 620 Cable Fault Locator
Kusam Meco KM CFPL 620 Cable Fault Locator
KUSAM-MECO” underground Cable Fault Pre-locator is an automatic Cable Fault Locator which adopts ARM, FPGA & Dot Matrix Color LCD display Technology. This tester combines pulse reflecting technology (TDR) for measuring the exact fault location such as broken line, cross faults, earthing
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 98,500
(GST inclusive price) i-
Base Value: ₹ 83474.6
-
GST: (18) % ₹ 15025.4
-
Total Value ₹ 98500
₹1,61,650.00
( - 23% OFF )
Description
Key Features
- Small size, light weight and ABS plastic housing which is ergronomically designed for easy use by user.
- Menu driven simple operation.
- Measurement maximum 8 km in selectable ranges.
- Tests any type of copper telecom and signal cables.
- Range, VOP and Gain are selected automatically.
- Color LCD Display (480 x 280 dots).
- Automatic testing mode.
- Pulse reflection (TDR) for open, short.
- With mega meter it enables to test insulation resistance and loop resistance.
- Six function keys and simple operation.
- Manual testing function is also available.
- With 4 GB USB Pen drive, it is easy to upload memory data to computer.
- Rechargeable lithium battery with intelligent charger
- Continued 8 hours operating time on internal battery.
- Rugged construction and easy to carry on site.
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Display Readout : Color LCD : 480*280·
• Continued operating time : 8 hours
• Charging time : 3 hours
• Power Supply : 7.4V Rechargeable Li-ion battery. Charging voltage 230V +/-10%, 50Hz, single phase.
• Storage Temperature : -15°C ~ + 55°C; RH <85%RH.
• Working Temperature : -15°C ~ + 55°C; RH <85%RH.
• Dimension : 212 (L) × 170 (W) × 90 (H) mm (approx.)
• Weight : 1.20 Kg Net (approx.)
TECHNICAL
- Measurement Mode: TDR (Time Domain Reflectometer)
- Fault Distance Range : 8 km (240m, 480m, 1000m, 2000m,4000m,8000m)
- Fault Measurement Accuracy : 1 meter
- Cable Constant (VOP) range : 100 - 300
- Sampling Speed : 100 MHZ
- Testing accuracy : +/- 1% × cable length
- Auto Measurement dead zone : 0 Meter
- Measurement dead zone : 0 Meter
- Pulse Width : 40ns---10us
- Pulse Waveform : Two polarity pulse
- Pulse Amplitude : 0 - 30V adjustment adaptive
- Impedance matching : Automatic
- Output Impedance : 25 - 120 adaptive
- Gain adjustment: Automatic and Manual
- Gain Range Control: 0 - 9
- Resolution : 1 Meter
- Memory Location : U - disk
- Serial port for PC / Printer : USB
