Metravi PRO CL-2150 Cable Route Tracer and Locator
Click To Zoom
Metravi PRO CL-2150 Cable Route Tracer and Locator
Metravi PRO CL-2150 Cable Route Tracer and Locator

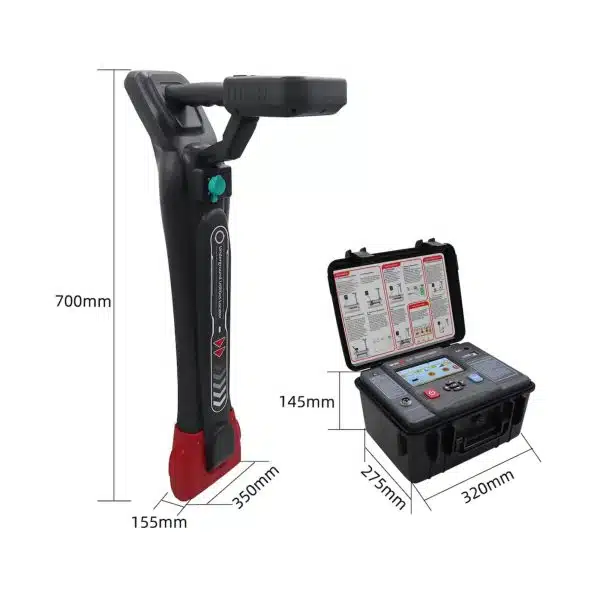

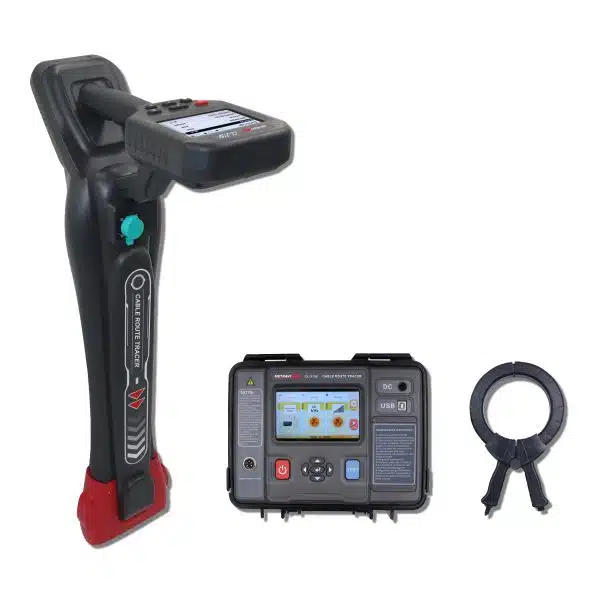

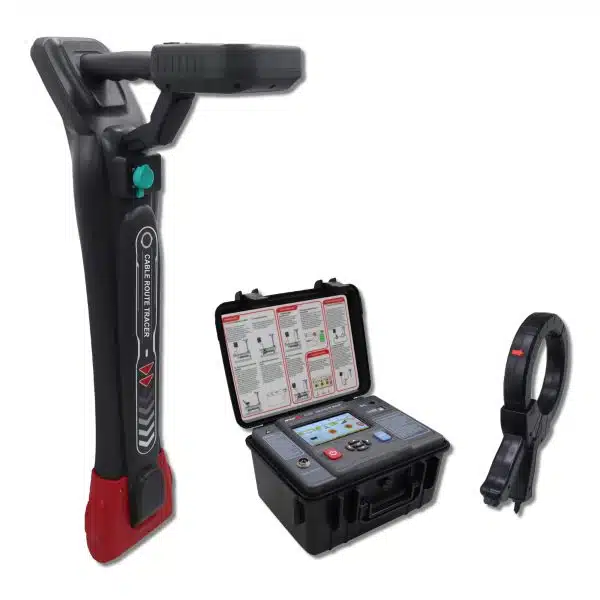

A comprehensive cable path detection instrument. Pipeline path detection, cable identification, fault search & other functions. Composed of transmitter, transmitting current clamp, receiver, receiving flexible current clamp, connecting test line, A-word frame (optional), etc. Anti-interference ability and can accurately locate & measure the depth.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 2,06,499.00
(GST inclusive price) i₹2,40,000.00
( - 14% OFF )
Description

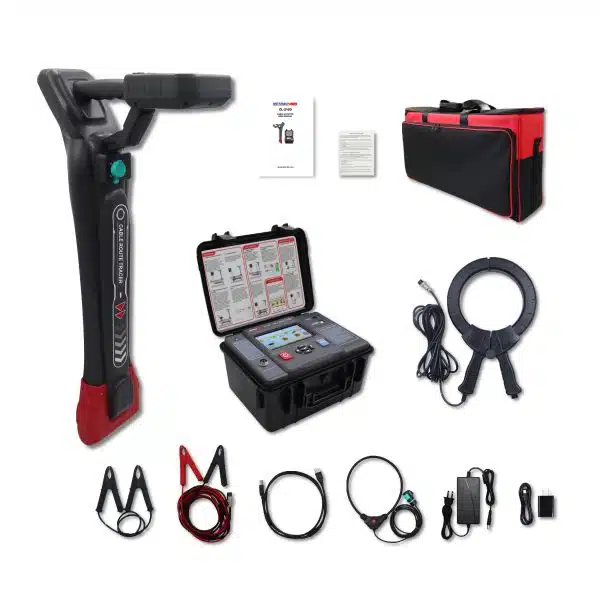

What's in the box?
|
Rating & Reviews
Rating
| RECEIVER SPECIFICATIONS | |
| Function | Utility detector(cable position tracking, direction display, depth measurement, current measurement), cable identification, A-frame fault detection (optional function) |
| Power | 8.4V large-capacity Rechargeable Lithium battery |
| Input Mode | Built-in receiving coil, flexible caliper, A-frame (optional function) |
| Receive Frequency | Active detection frequency:250Hz, 577Hz, 640Hz, 1.28kHz, 2.56kHz, 3.20kHz, 4.09kHz, 8.19kHz, 10.2kHz, 33kHz, 66kHz, 82kHz, 197kHz |
| Power frequency passive detection frequency: 50Hz, 60Hz | |
| RF passive detection frequency band: the central frequency is divided into 33kHz, 66kHz, 82kHz, 197kHz | |
| Utility Detector Modes | Wide Peak method, Narrow Peak method, Sound Valley method |
| Utility Detector Display Modes | Classic Positioning mode, Wire Cruise mode, Signal Distortion measurement mode |
| Scope of Detection | Direct connection method: generally can reach the cable length of 0~20 kilometers, mainly determined by the grounding resistance, cable resistance and cable buried depth |
| Coupling method:generally can reach the length of the cable 0~10 kilometers, mainly determined by the grounding resistance, cable resistance and cable buried depth | |
| Induction method:suitable for cables with buried depth less than 2m | |
| Depth & Current | Displays the cable depth and current value in real time |
| Measurement Depth | 0-20m |
| Deep Precision | Flat position precision accuracy: Central axis position of the target cable or pipeline: ± 5% (buried depth in 0-3m) -10% (buried depth in 3m-20m) |
| Positive & Wrong Prompt | Excluding the interference of adjacent cables, in the measurement of adjacent cables, the measurement of the adjacent cables can be distinguished according to the different signal strength and the measured current phase of the adjacent cables. In the process of tracking the cables, the phase dial and pointer can be observed to distinguish the measured cables and the adjacent cables |
| Sound Instructions | FM tone with signal intensity |
| Capacity of resisting Disturbance | Very narrow receiving frequency band and unique digital processing method can fully suppress the power frequency and harmonic interference of adjacent operating cables and pipelines |
| Interference Distance | When using the coupling method and the induction method, the transmitter will produce interference in close distance. The distance of interference is related to the transmitting power and frequency. The greater the power, the higher the frequency, the stronger the interference. The minimum distance of the receiver free from the transmitter interference often needs to be determined by test. |
| Utility detection:5m away, 20m away as no interference. | |
| Cable identification: the coupling method beyond 2~5m can be confirmed as no interference | |
| Cable Identification | Identification mode: flexible caliper intelligent identification; number of calibrable cables:1~20. |
| Calibration value: the current percentage of the received signal and the transmitted signal between 75% and 135% of the calibration value is one of the conditions for successful identification | |
| Directionality : the transmitter clamp, receiver clamp must be in the same direction as the loading signal, which is one of the conditions for successful identification | |
| Cable Identification Range of Detection | Direct connection method: can identify the signal with a circuit resistance of 0 Ω ~ 8 kΩ (generally, the length of the cable can reach 0~20 km, mainly determined by the grounding resistance and cable resistance) |
| Coupling method: can identify the signal with circuit resistance of 0 Ω ~ 1 kΩ;(generally the cable length is 0~6 km, mainly determined by the grounding resistance and cable resistance) | |
| Display | 4.3" color Touchscreen LCD (highlight screen), visible in the sun |
| Size | 350mm (length) × 155mm (width) × 700mm (high) |
| 350mm (length) × 155mm (width) × 700mm (high) | Around 2kg |
| Connection Interface | Type-C USB Interface, air socket |
| Coil Inner Diameter | φ200mm (a larger caliber can be customised if needed) |
| Working Environment | -10°C ~ 40°C ; ≤ 80%RH |
| Storage Environment | -10°C ~ 50°C ; ≤ 95%RH, no condensation |
| Withstand Voltage | AC 2000V/rms (Before the front and rear ends of the shell) |
| Safety | IEC61010-1 CAT III 600V, IEC61010-031, IEC61326, Pollution Grade 2 |
| TRANSMITTER SPECIFICATIONS | |
| Function | Multiple frequency signal transmission modes |
| Power | 10.8V Large-capacity rechargeable lithium battery |
| Output Method | Direct connection method, caliper coupling method, induction method |
| Output Frequency | 250Hz, 577Hz, 640Hz, 1.28kHz, 2.56kHz, 3.20kHz, 4.09kHz, 8.19kHz, 10.2kHz, 33kHz,66kHz, 82kHz, 197kHz |
| Output Mode | Automatic identification, according to different accessories |
| Output Power | 15W max., 9 gears - adjustable |
| Impedance | Automatic real-time impedance matching and protection function |
| Direct Output Voltage | 150Vpp max. |
| Circuit Protection | With overload and short-circuit protection |
| Display | 5" Colour Touchscreen LCD |
| Instrument Size | 320mm (length) × 275mm (width) × 145mm (high) |
| Weight | Transmitter about 3.85kg; Transmitter Clamp about 1.18kg |
| Charger | DC 11.1V 3A |
| Dimensions of Transmitter Clamp Launch | (Length, width and thickness) 297mm × 194mm × 39mm |
| Clamp Inner Diameter | φ125mm |
| Length of Transmitter Clamp | 3m |
| P-wire | Red test line 3m, Black test line 3m |
| Connection Interface | USB interface, DC interface, aviation socket |
| Resist Compression | The transmitter adopts an integrated special tool box type design, and the box body can withstand the pressure of about 200kg |
| Withstand Voltage | AV 3700V/rms (before the top surface and bottom surface of te instrument) |
| Electromagnetic Characteristics | IEC61326 (EMC) |
| Safety | IEC61010-1 CAT III 300V, CAT IV 150V, Pollution Grade 2 |
