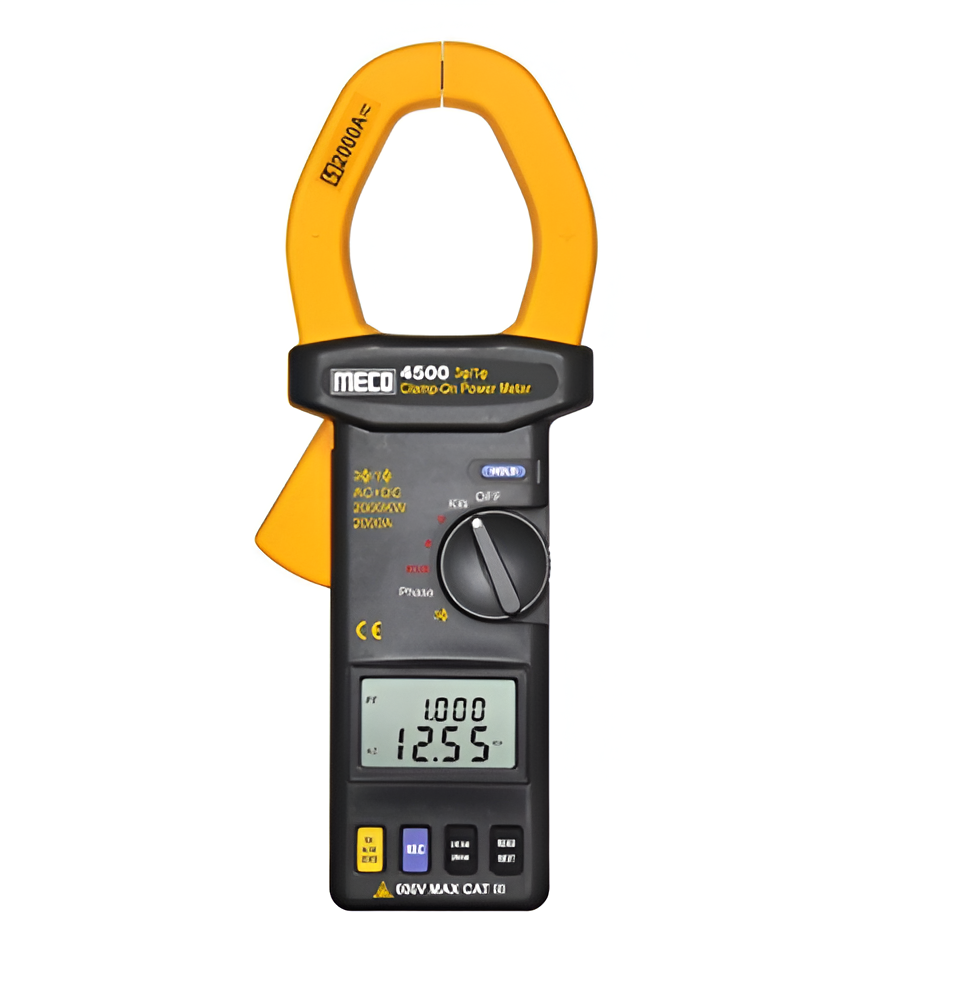

MECO 4500 Clamp-On Auto ranging Power Meter

MECO 4500 Clamp-On Auto ranging Power Meter
MECO 4500 Clamp-On Auto ranging Power Meter

MECO 4500 Clamp-On Auto ranging Power Meter

Click To Zoom

MECO 4500 Clamp-On Auto ranging Power Meter

MECO 4500 Clamp-On Auto ranging Power Meter

(Based On 10 Reviews)

The Meco 4500 is a portable, auto-ranging TRMS clamp-on power and power factor meter. It accurately measures electrical parameters (V, A, W, PF, Hz) in single and three-phase AC/DC systems, ideal for energy audits and plant maintenance.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 48,792

(GST inclusive price) i
  • Base Value: ₹ 41349.2
  • GST: (18) % ₹ 7442.8
  • Total Value ₹ 48792

₹67,194.00

( - 27% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • 3f4W, 3f3W, 3fBalanced, 1f2W, 1f3W
  • AC + DC 2000KW(3f), 1200KW(1f)
  • Dual displayKW+ PF,
  • KVA+KVAR, V + A, V + Hz, A + Hz
  • Phase AngleMeasurment (±900), Phase
  • Sequence Indication (R,S,T)
  • AC 600V, DC 600V, AC + DC 2000A
  • Power Factor
  • AC/DC Auto Detection
  • TRMS Values
  • Memory of 4 records
  • Auto Range



What's in the box?

  • Carrying Bag x 1 Pc
  • Users Manual x 1 Pc
  • Battery (Installed) x 1 Pc
  • Test Leads x 1 Pai

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General Specification
Jaw OpeningCable Dia.55mm. (approx.)
Bus Bar 65 (D) x 24 (W) mm
Power9V Battery
Display2 x 4 Digits Dual Display LCD
Range SelectionAuto
Overload Indication OL
Power Consumption25mA (approx.)
Sampling Time0.5 sec. (V and A)
1.6 sec. (W)
Operating Temp.0.5 sec. (V and A)
1.6 sec. (W)
Operating Humidity<85% RH
Storage Temperature-200
C to 60 0
C
Storage Humidity<75% RH
Dimensions271 x 112 x 46 mm
Weight650gms Battery Including (approx.)
AC+DC True Power (PF 0.2~1.0, 3f3W, 3f4W, 1f2W, and 1f3W)
RangeResolutionAccuracy (of rdgRange
0~99.99KW 0.01KW± 2.0% ± 0.05KWAC 600V, DC 600V,
ACA/DCA 2000A
100~999.9KW 0.1KW Â± 2.0% ± 0.5KWAC 600V, DC 600V,
ACA/DCA 2000A
1000~1200KW 1KW Â± 2.0% ± 5KWAC 600V, DC 600V,
ACA/DCA 2000A
AC+DC True Power (Power Factor 0.2~1.0, 3 f Balanced Power
RangeResolutionAccuracy (of rdgRange
0~99.99KW 0.01KW± 2.0% ± 0.05KWAC 600V, DC 600V,
ACA/DCA 2000A
100~999.9KW 0.1KW Â± 2.0% ± 0.5KWAC 600V, DC 600V,
ACA/DCA 2000A
1000~1200KW 1KW Â± 2.0% ± 5KWAC 600V, DC 600V,
ACA/DCA 2000A
Phase Angle (Must zero the current reading before measurement)
RangeAccuracy SensitivityRemark

-90O to + 90O

(50/60 Hz

± 2.00V> 100V, A> 10AZero Crossing
 Detection
Frequency (if <10 Hz, Hz = 0)
RangeAccuracy Sensitivity
50/60 Hz± 2dgtsV > 1V, A > 5A
10-400 Hz± 0.5% ± 2dgt V > 1V, A > 5A
