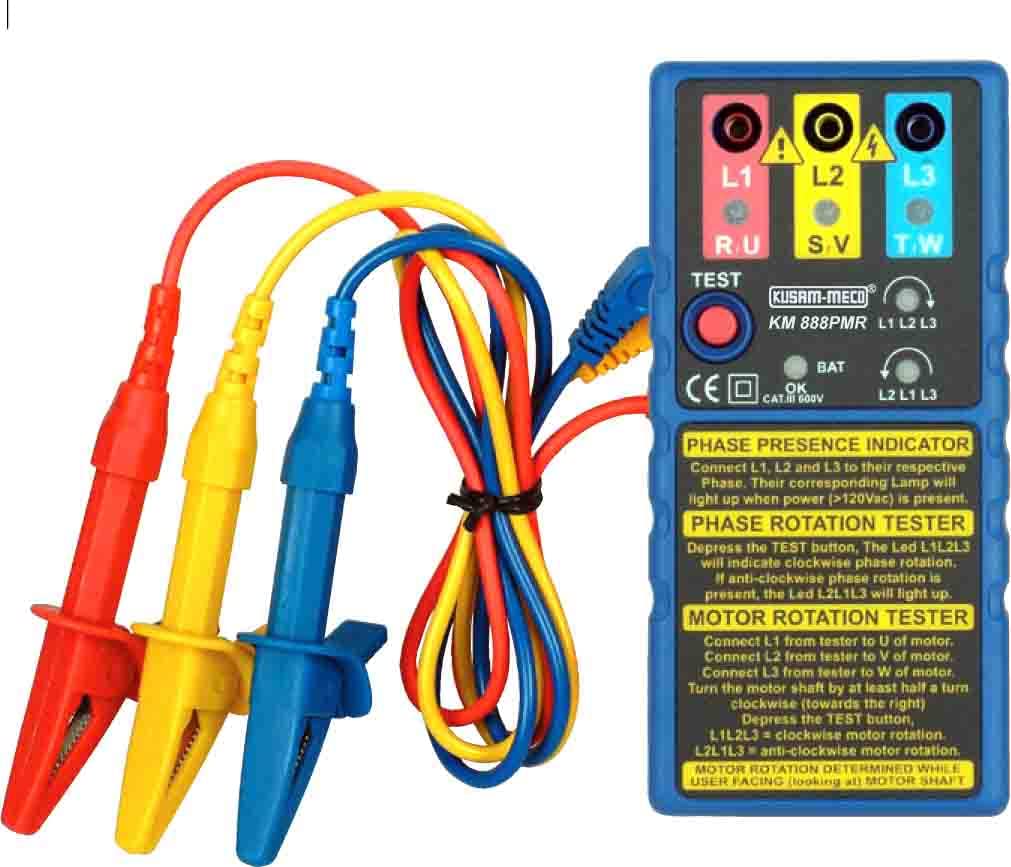

The Kusam Meco KM 888PMR is a versatile 3-phase tester. It acts as a presence and rotation indicator for live systems, showing phase presence and rotation. Additionally, it functions as a motor rotation tester for unpowered motors, identifying correct R, S, T connections and preventing damage from reversed rotation. LED indicators show rotation direction.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

₹ 9,200

(GST inclusive price) i
  • Base Value: ₹ 7796.6
  • GST: (18) % ₹ 1403.4
  • Total Value ₹ 9200

₹14,950.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Indicates Phase Presence
  • Indicates Phase Rotaton
  • Indicates Motor Rotation / wiring
  • Indicates Battery Status
  • Phase Rotation & Motor Rotation Indication works from as low as 1 Vac.
  • and rugged enclosure
  • Color coded test Leads.
  • Phase Presence Indication from as low as 100Vac.
  • Very low consumption.
  • Fused
  • Lightweight, Robust & Compact.
  • Works from 2Hz to 400Hz sine.



What's in the box?

  • Kusam Meco KM 888PMR PHASE SEQUENCE INDICATOR
  • Test leads (AL-34) Vinyl case
  • User’s Manual
  • Battery

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

Phase Presence
Nominal Voltage for Phase
Presence Indication (The
Voltage required for the neon
Lamps L1, L2, L3 to light up)		Voltage Freq100 VAC to 600 VAC
10-400Hz
Determination of Phase
Rotation Field Direction		Voltage Freq1 VAC to 600 VAC
2-400Hz
Determination of Motor Connections (requires > ½ turn of the Shaft)Voltage Freq1 VAC to 600VAC
2-400Hz
Maximum Current Consumption18mA18mA
Over VoltageCLASS III-600V towards Ground
Over Load550V (between all terminals)
Battery OK goes off when battery voltage<6.5 VDC<6.5 VDC
Power Source9V x 1 battery9V x 1 battery
Dimensions : 153(L) x 72(W) x 35(D) mm153(L) x 72(W) x 35(D) mm
WeightApprox. 185g. (Battery included)
