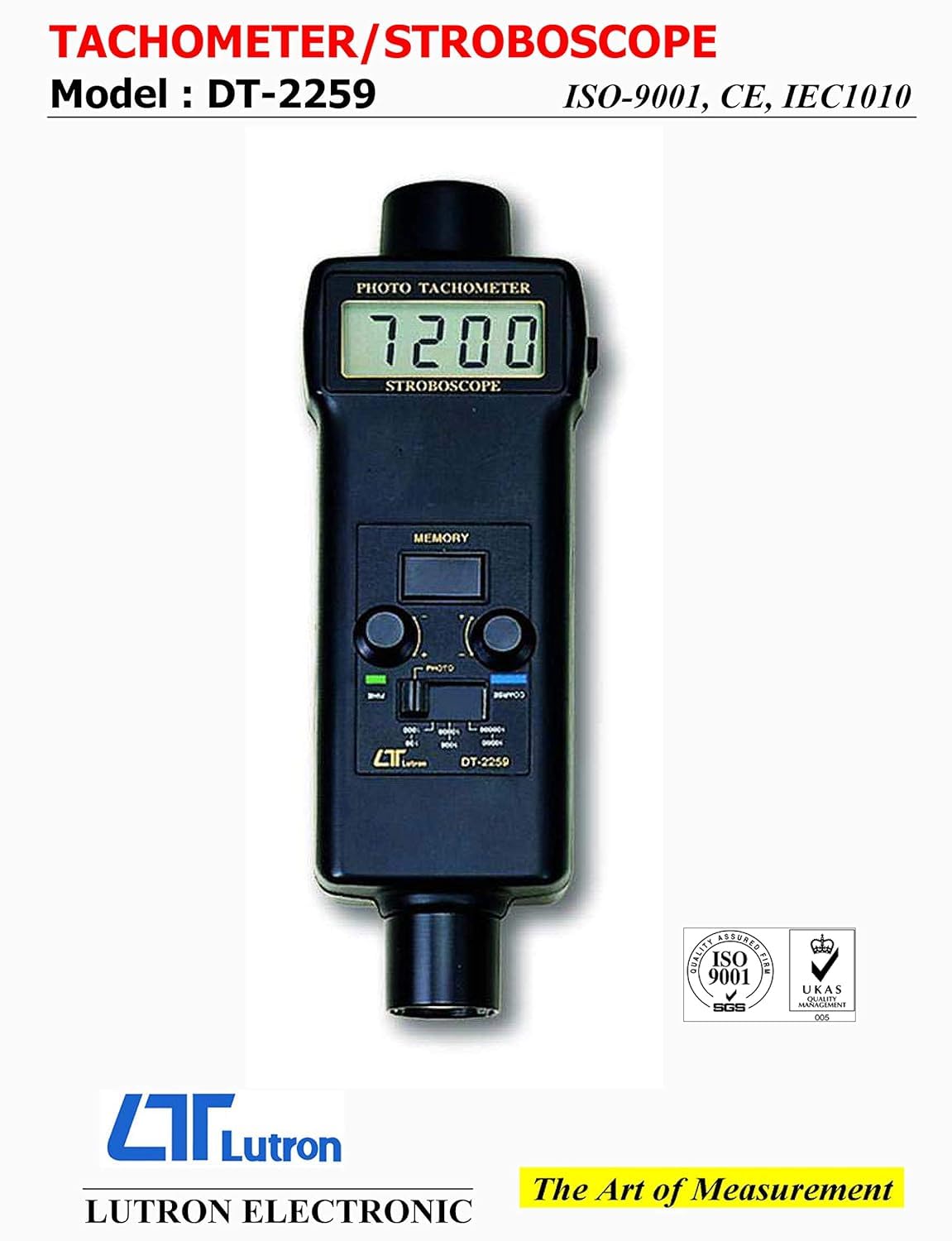

Lutron DT-2259 2 in 1, DIGITAL PHOTO TACHOMETER with DIGITAL STROBOSCOPE
Click To Zoom
Lutron DT-2259 2 in 1, DIGITAL PHOTO TACHOMETER with DIGITAL STROBOSCOPE
Lutron DT-2259 2 in 1, DIGITAL PHOTO TACHOMETER with DIGITAL STROBOSCOPE
The DT-2259 Tachometer/Stroboscope offers accurate and reliable measurements of rotational speed and strobe light synchronization, making it an essential tool for various industrial applications, including maintenance, production, quality control, and educational demonstrations.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 18,580
(GST inclusive price) i-
Base Value: ₹ 15745.8
-
GST: (18) % ₹ 2834.2
-
Total Value ₹ 18580
₹21,680.00
( - 14% OFF )
Description
Key Features
- Dual Functionality: Combines Digital Photo Tachometer and Digital Stroboscope in one instrument, providing versatile measurement options.
- Wide Measurement Range:
- Digital Photo Tachometer: Measures from 0.5 to 100,000 RPM.
- Digital Stroboscope: Offers a setting range from 100 to 100,000 RPM with high accuracy.
- High Accuracy and Resolution: Tachometer provides 0.1 RPM resolution for measurements under 1,000 RPM , Stroboscope offers coarse and fine adjustment knobs for precise flash rate control.
- Memory Function: Automatically stores the last value, maximum value, and minimum value, which can be recalled using the Memory Call Button.
- User-Friendly Design: Features a high visibility LCD display, lightweight ABS plastic housing, and ergonomic design for comfortable handling.
What's in the box?
|
Rating & Reviews
Rating
Display: 5 digits, 10 mm (0.4 inch) LCD with function annunciation.
Accuracy: ±(0.1% + 2 digits)
Sampling Time: 1 second (at 60 RPM)
Time Base: Quartz crystal
Circuit: Exclusive one-chip microprocessor LSI circuit
Power Supply: 4 x 1.5V AA (UM-3) batteries
Operating Temperature: 0 to 50℃ (32 to 122℉)
Operating Humidity: Less than 80% RH
Dimensions: 215 x 65 x 38 mm (8.5 x 2.6 x 1.5 inch)
Weight: 300 g (0.66 lb) including batteries
Photo Tachometer Specifications:
Measurement Range: 5 to 99,999 RPM
Resolution: 0.1 RPM (< 1,000 RPM), 1 RPM (≥ 1,000 RPM)
Detecting Distance: 50 to 150 mm (2 to 6 inch), typical max 300 mm (12 inch) depending on ambient light
Stroboscope Specifications:
Stroboscopic Flash Rate: 100 to 100,000 FPM/RPM
Flash Tube: High efficiency orange LED lamp
Flash Duration: Approximately 60 to 1,000 microseconds
Flash Color: Orange
Flash Adjust Range:
- Range A: 100 to 1,000 FPM
- Range B: 1,000 to 10,000 FPM
- Range C: 10,000 to 100,000 FPM
Resolution: 0.1 FPM/RPM (Less than 1,000 FPM/RPM), 1 FPM/RPM (Over 1,000 FPM/RPM)
Calibration: Crystal time base and microprocessor circuit
