Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER

Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER
Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER
Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER
Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER
Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER
Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER
Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER
Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER

Click To Zoom

Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER

Lutron DT-2236 DIGITAL PHOTO | CONTACT TACHOMETER

(Based On 10 Reviews)

The DT-2236 Digital Tachometer combines both photo and contact tachometer functions, providing accurate and reliable measurements of rotational speed and surface speed, making it an essential tool for various industrial applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 9,714.00

(GST inclusive price) i
  • Base Value: ₹ 8232.2
  • GST: (18) % ₹ 1481.8
  • Total Value ₹ 9714

₹14,000.00

( - 31% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

  • Key features
  •
  •  Dual Functionality: Combines Photo Tachometer (RPM) and Contact Tachometer (RPM, m/min, ft/min) in one instrument, offering versatile measurement options.
  •  Wide Measurement Range:
  •  Photo Tachometer: Measures from 5 to 99,999 RPM.
  •  Contact Tachometer: Measures from 0.5 to 19,999 RPM.
  •  Surface Speed: Measures 0.05 to 1,999 m/min and 0.2 to 6,560 ft/min.
  •  High Accuracy and Resolution:Provides 0.1 RPM resolution for measurements under 1,000 RPM.Ensures high precision with 0.05% accuracy.
  •  Memory Function: Automatically stores the last value, maximum value, and minimum value, which can be recalled using the Memory Call Button.
  •  User-Friendly Design: Features a high visibility LCD display, lightweight ABS plastic housing, and ergonomic design for comfortable handling.
  •  Versatile Measurement: Suitable for a wide range of applications including industrial machinery maintenance, production, quality control, and laboratory measurements.
  •  High Accuracy: Ensures reliable and precise measurements with a high accuracy of 0.05%.
  •  User-Friendly Interface: Easy-to-read LCD display and ergonomic design for comfortable use in various settings.

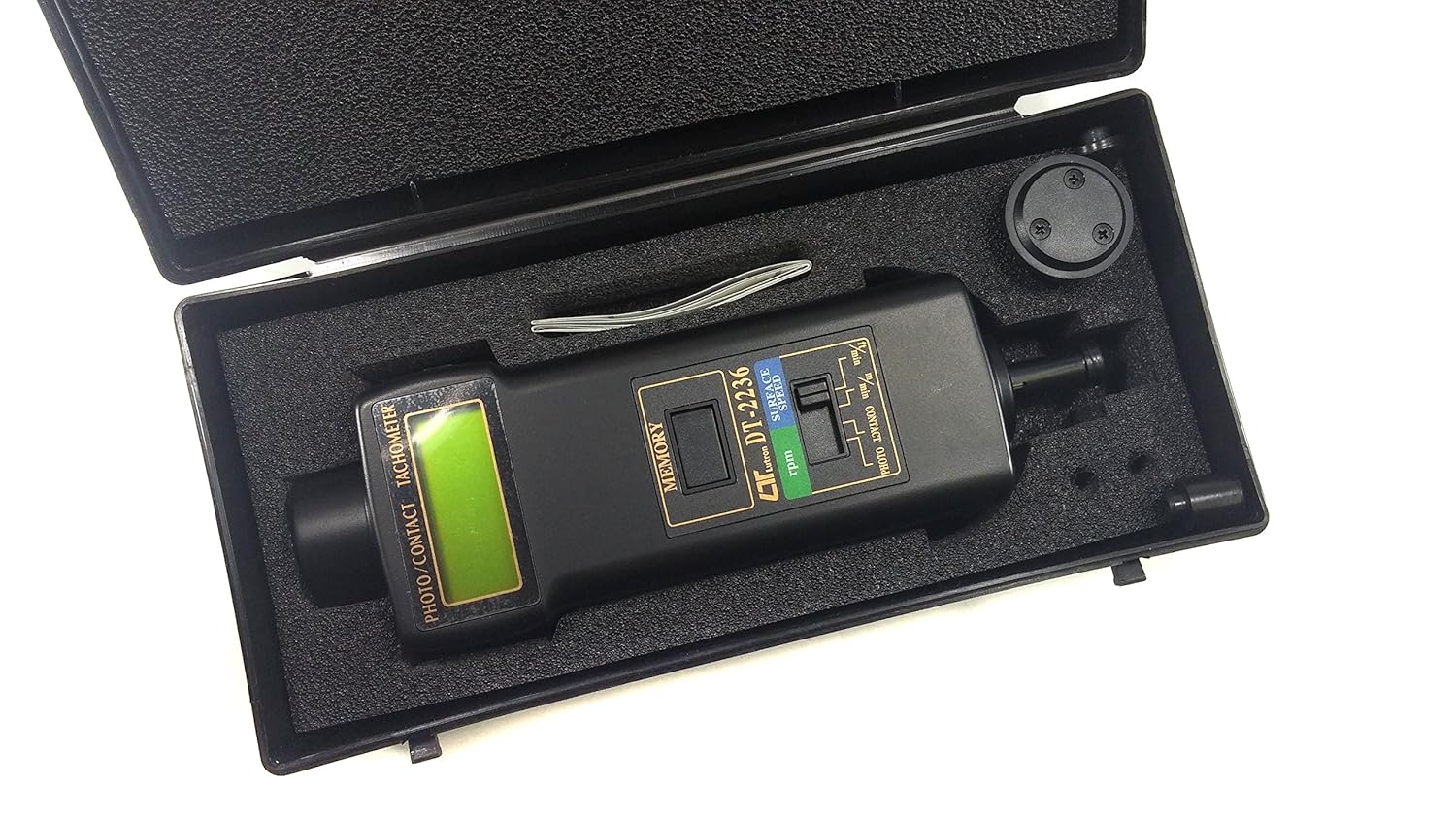

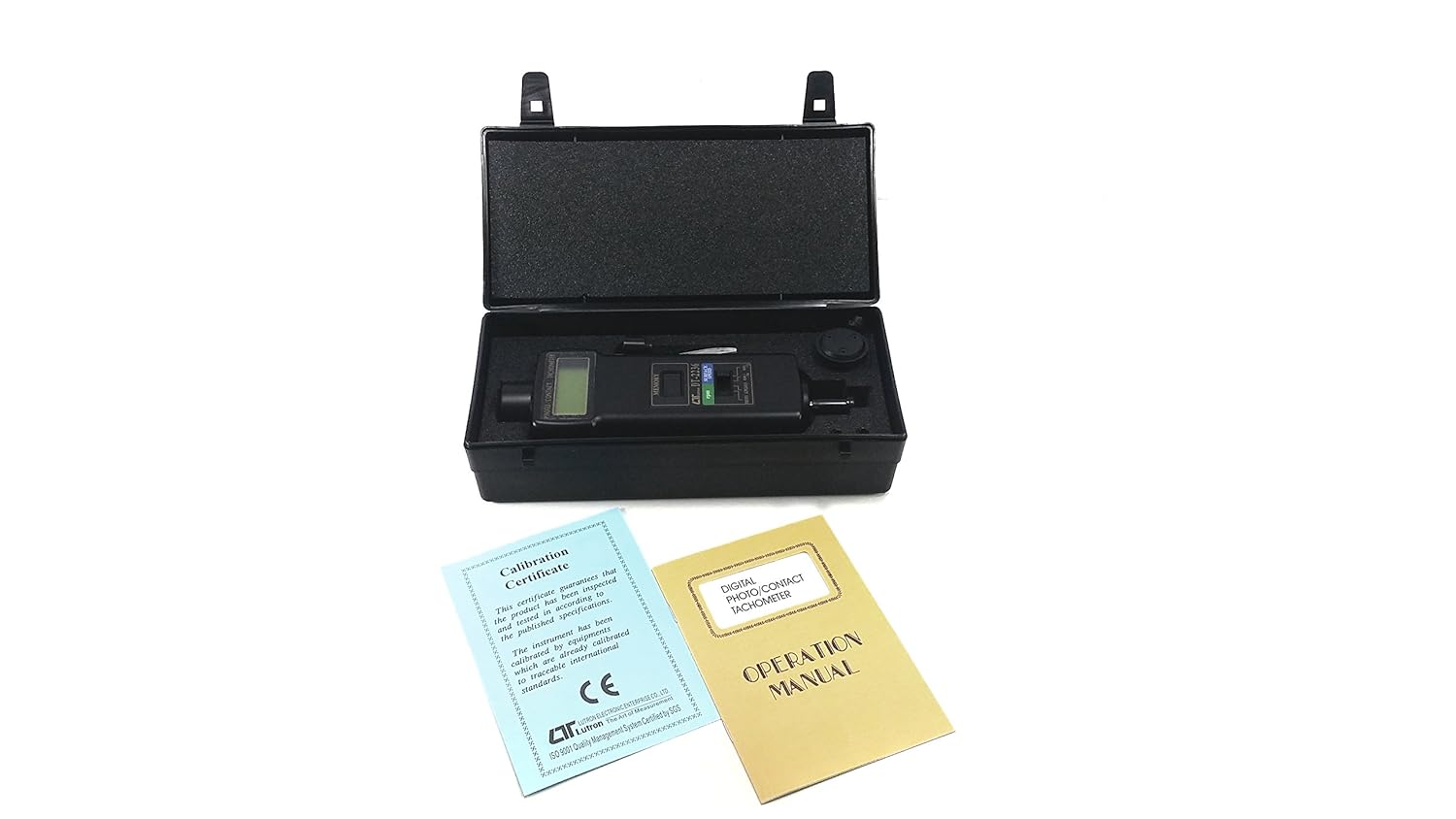

What's in the box?

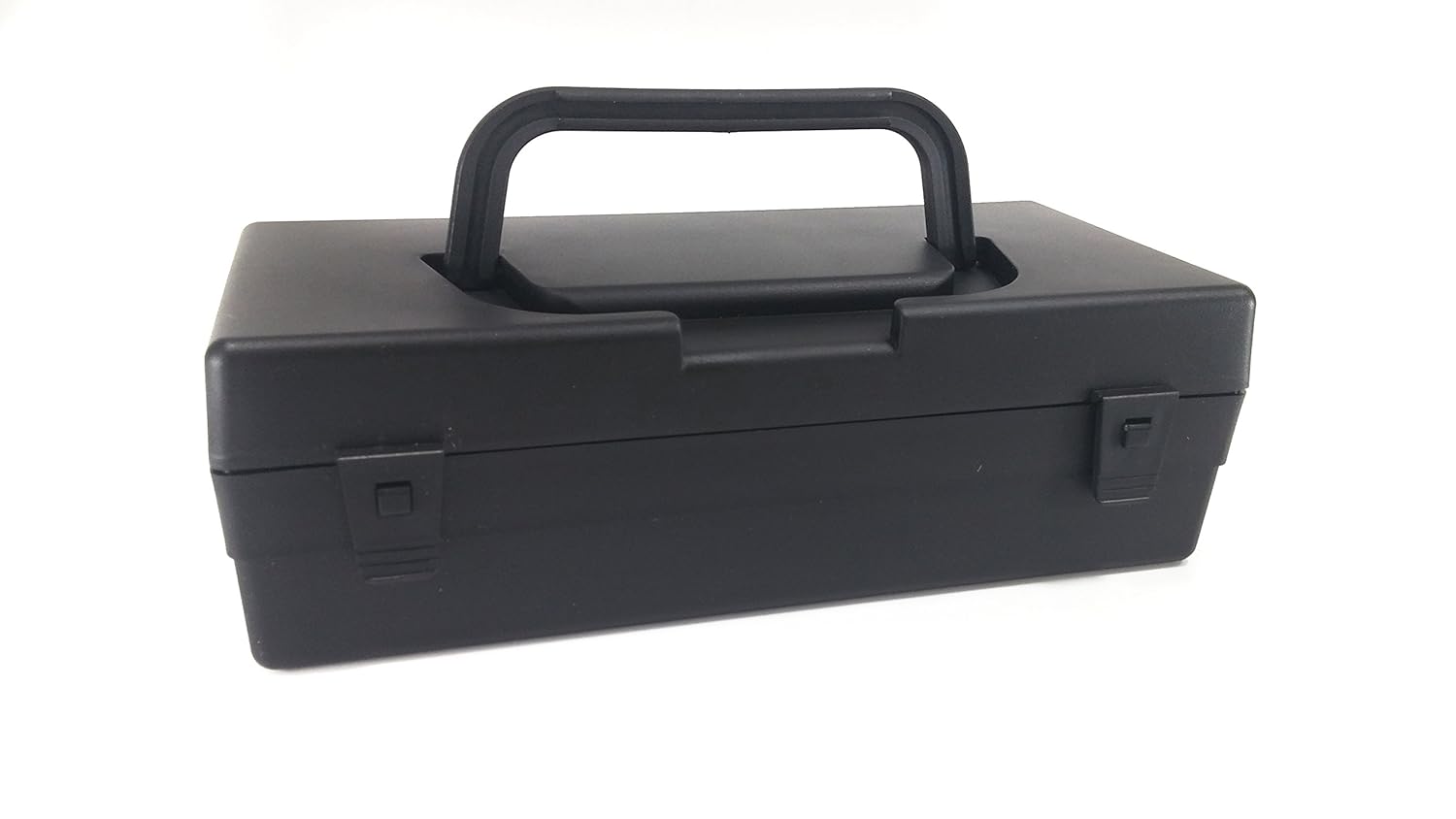

  • Carrying Case: 1 PC
  •  RPM Adapter (CONE): 1 PC
  •  RPM Adapter (FUNNEL): 1 PC
  •  Surface Speed Test Wheel: 1 PC
  •  Operation Manual: 1 PC



Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specifications:





 General Specifications:

   Display:

  • 5 digits, 10 mm (0.4 inch) LCD


   Accuracy:

  • ±(0.05% + 1 digit)


   Time Base:

  • Quartz crystal


   Circuit:

  • Exclusive one-chip microprocessor LSI circuit


   Power Supply:

  • 4 x 1.5V AA (UM-3) batteries


   Power Consumption:

  •      Photo Tachometer: Approx. DC 44 mA
  •      Contact Tachometer: Approx. DC 8 mA


   Operating Temperature:

  • 0 to 50℃ (32 to 122℉)


   Operating Humidity:

  • Less than 80% RH


   Dimensions:

  • 195 x 61 x 38.5 mm (7.6 x 2.4 x 1.5 inch)


   Weight:

  • 211 g (0.46 lb) without batteries




   Photo Tachometer Specifications:

   Measurement Range:

  • 5 to 99,999 RPM


   Resolution:

  • 0.1 RPM (< 1,000 RPM), 1 RPM (≥ 1,000 RPM)


   Detecting Distance:

  • 50 to 150 mm (2 to 6 inch), typical max 300 mm (12 inch) depending on ambient light





  Contact Tachometer Specifications:

   Measurement Range:

  • 0.5 to 19,999 RPM


   Resolution:

  •      RPM: 0.1 RPM (< 1,000 RPM), 1 RPM (≥ 1,000 RPM)
  •      m/min: 0.01 m/min (< 100 m/min), 0.1 m/min (≥ 100 m/min), 1 m/min (≥ 1,000 m/min)
  •       ft/min: 0.1 ft/min (< 1,000 ft/min), 1 ft/min (≥ 1,000 ft/min)
