LUTRON CD-4322 CONDUCTIVITY METER
Click To Zoom
LUTRON CD-4322 CONDUCTIVITY METER
LUTRON CD-4322 CONDUCTIVITY METER
The CD-4322 Conductivity Meter is designed for high precision and versatility, featuring automatic calibration, data logging capabilities, and multiple measurement ranges, making it an ideal tool for various applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 10,020
(GST inclusive price) i-
Base Value: ₹ 8491.5
-
GST: (18) % ₹ 1528.5
-
Total Value ₹ 10020
₹10,855.00
( - 33% OFF )
Description
Key features
- Three Measurement Ranges: Measures conductivity with ranges of 2000 µS, 20 mS, and 100 mS, featuring auto-ranging for ease of use.
- Automatic Temperature Compensation (ATC): Ensures accurate readings by automatically adjusting for temperature variations from 0 to 50℃ (32 to 122℉).
- Data Logging Capabilities: Equipped with a manual and auto data logger that can store up to 1,600 data points. Data can be easily transferred to a computer via RS232/USB interfaces.
- Innovative Features: Built-in microprocessor circuit provides high accuracy and special functions, including adjustable temperature compensation factors between 0 to 5.0% per ℃.
- Durable and Compact Design: Constructed with a heavy-duty ABS plastic housing, ensuring durability and longevity in various environments.
Optional Accessories:
- 1.413 mS Conductivity StandardSolution：CD-14
- RS232 cable：UPCB-02
- USB cable：USB-01
- Data Acquisition software：SW-U80

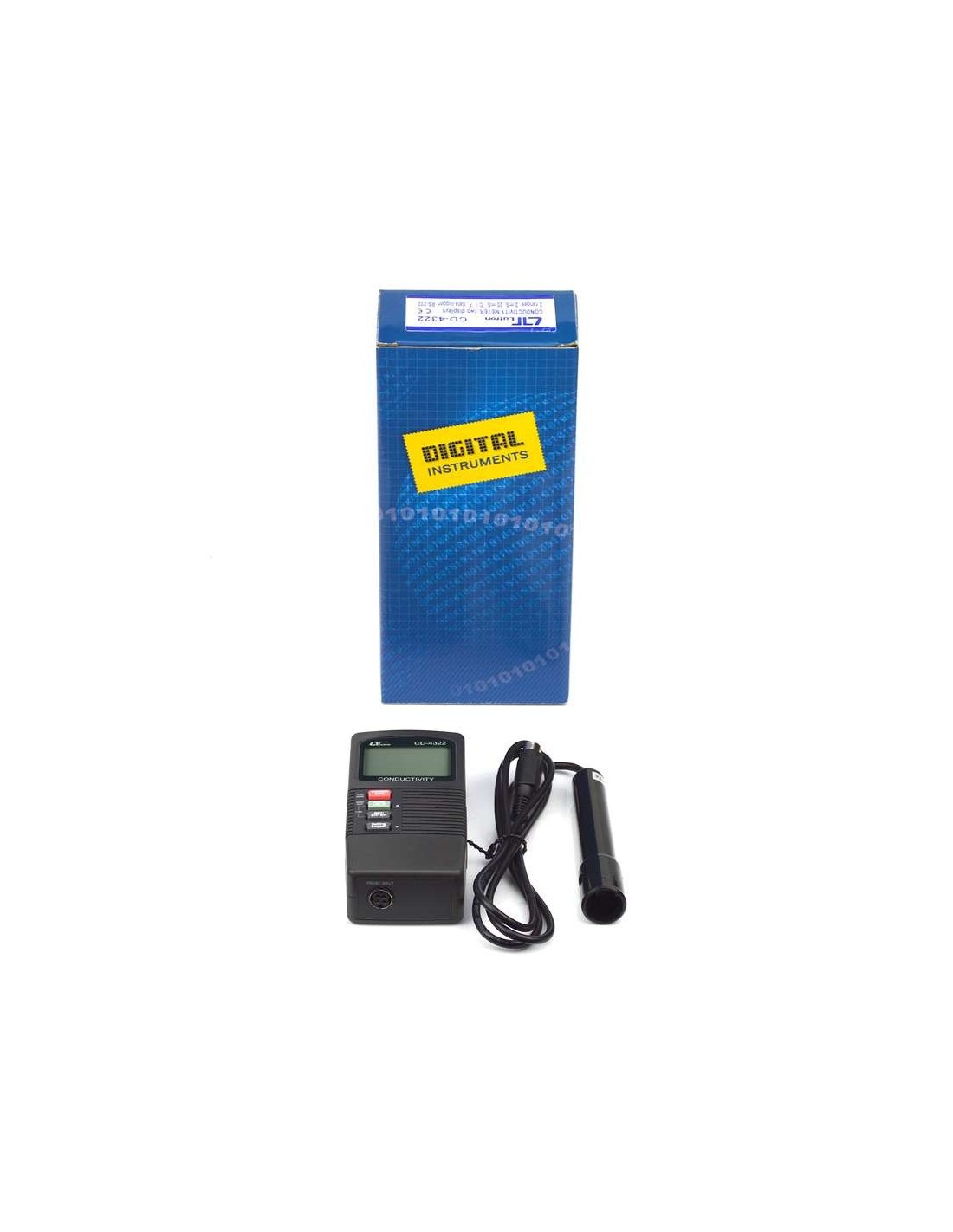

What's in the box?
|
Rating & Reviews
Rating
Display
LCD size : 44 mm x 29 mm.
Dual function LCD
Measurement & Range
Resolution
TDS range : 1200 ppm/12,000 ppm/66,000 ppm.
TDS resolution : 1 ppm/10 ppm/100 ppm.
Accuracy
± ( 2% FS + 1 d )
* FS : full scale
Over Range Indicator
Sampling Time
Approx. 1 second.
Temp.Compensation
Automatic from 0 to 50 (32 - 122 ), with temperature compensation factor variable between 0 to 5.0% per C.
Operating Temp.
0 to 50 .
Operating Humidity
Less than 80% RH.
Power Supply
006P DC 9V battery ( Alkaline or Heavy duty type ) or DC 9V adapter input.
* AC/DC power adapter is optional.
Power Current
Approx. DC 5.7 mA.
Dimension
Main instrument : 135 x 60 x 33 mm.
Conductivity Probe : Round, 22 mm Dia. x 120 mm length.
Electrode Size
Calibrtaion Solution
Dala Hold
Freeze the display reading.
Memory Recall
Records Maximum, Minimum readings with recall.
CD Calibration
Circuit
Custom one-chip of microprocessor LSI circuit.
Power Consumption
Weight
295 g/0.65 LB. * Include probe and batterry
Power off
Auto power off saves battery life, or manual off by push button.
* Auto power off :
Power will off automatically after 10 min., if no button be presse
Function
Conductivity, TDS.
Ranges and Resolution
Conductivity range : 2000 uS/20.00 mS/100 mS.
Conductivity resolution : 1 uS/0.01 mS/0.1 mS.
Conductivity Probe Structure
Carbon rod electrode for long life.
Data Output
RS 232 PC serial interface.
Sampling Time of Data Logger
Manual：Push the data logger button once will save data one time.
Auto：1, 2, 5, 10, 30, 60, 600, 1800, 3600 seconds.
Data Logger number
Max. 1,600-point Data logger
