Lutron LX-102 Light Meter
Click To Zoom
Lutron LX-102 Light Meter
Lutron LX-102 Light Meter
The LX-102 Digital Light Meter provides accurate and reliable measurements of light intensity, making it an essential tool for various industrial, environmental, and laboratory applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 5,000.00
(GST inclusive price) i₹7,500.00
( - 33% OFF )
Description
1. High Precision Measurement: Uses an exclusive photo diode and color correction filter that meets C.I.E. photopic standards, ensuring high accuracy in measuring light intensity.
2. Versatile Measurement Ranges: Offers three ranges for Lux (0 to 50,000 Lux) and Foot-candle (0 to 5,000 Fc), allowing for precise measurements in different lighting conditions.
3. User-Friendly Design: Equipped with a large LCD display for easy reading, separate light sensor for optimal positioning, and features such as data hold and zero adjustment for convenient operation.
4. Durable and Reliable: Built with an LSI-circuit for high reliability and durability, and includes a built-in low battery indicator to prevent unexpected power loss.
5. Analog Output: Provides analog output (0.1 mV/1 digit, max. 200.0 mV) for integration with other systems and data logging equipment.
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
Technical Specifications:
- Display:
- Type: LCD
- Size: 13 mm (0.5 inch)
- Measurement Units:
- Lux: 0 to 50,000 Lux, 3 ranges
- Foot-candle (Fc): 0 to 5,000 Fc, 3 ranges
- Resolution and Accuracy:
- Lux:
- 2,000 Lux: 1 Lux, ±(5% + 2d)
- 20,000 Lux: 10 Lux, ±(5% + 2d)
- 50,000 Lux: 100 Lux, ±(5% + 2d)
- Foot-candle:
- 200 Fc: 0.1 Fc, ±(5% + 2d)
- 2,000 Fc: 1 Fc, ±(5% + 2d)
- 5,000 Fc: 10 Fc, ±(5% + 2d)
- Analog Output:
- 0.1 mV/1 digit, Max. 200.0 mV

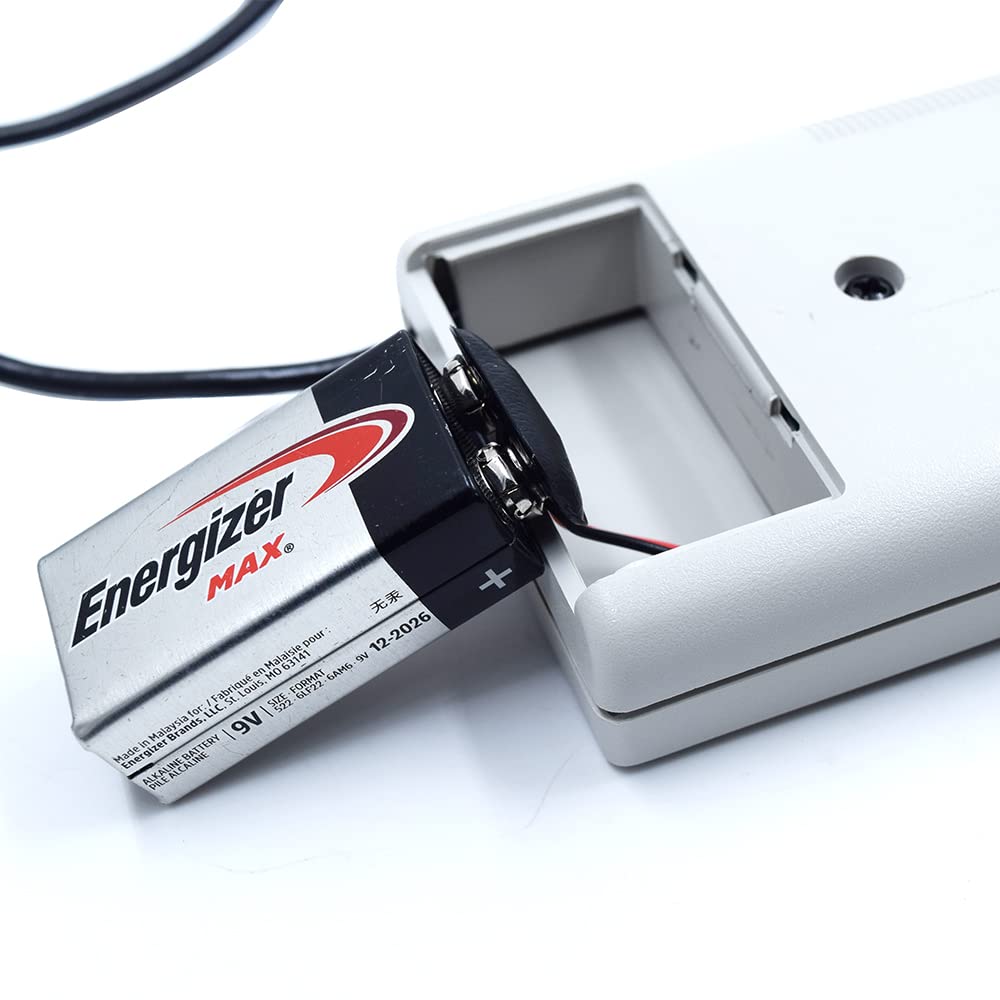

- Power Supply:
- DC 9V battery (006P, MN1604, PP3 or equivalent)
- Power Consumption:
- Approx. DC 2 mA
- Operating Environment:
- Temperature: 0 to 50℃ (32 to 122℉)
- Humidity: Less than 80% RH
- Dimensions:
- Main Instrument: 163 x 70 x 30 mm (6.4 x 2.8 x 1.2 inches)
- Sensor Probe: 82 x 55 x 7 mm (3.2 x 2.2 x 0.3 inches)
- Weight:
- 220 g (0.52 lb) including batteries
Advanced Features:
- Microprocessor Circuit: Ensures high accuracy and reliability.
- COS Correction Factor: Meets standard for accurate measurements.
- Data Hold Function: Stores the desired value on the display for easy reference.
- Zero Adjustment: Internal adjustment for easy calibration.
- Over-Input Indication: Displays "1" when the input exceeds the measurement range.
Applications:
- Environmental Monitoring: Measure light intensity in various environments.
- Industrial Maintenance: Monitor light levels in industrial settings.
- Laboratory Use: Ensure proper lighting conditions in laboratories.
- General Lighting Assessment: Evaluate lighting in residential and commercial spaces.
Invest in the LX-102 Digital Light Meter for precise and reliable light intensity measurements,
ensuring high performance and versatility in various industrial, environmental, and laboratory applications.
| SPECIFICATIONS | |
| Display | 13 mm ( 0.5" ) LCD. |
| Measurement | Lux, Ft-candle, Data hold, Analog output. |
| Operating Humidity | Less than 80% R.H. |
| Operating Temperature | 0 to 50℃ ( 32 to 12℉). |
| Over Input Display | / |
| Power Supply | DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent. |
| Power Consumption | Approx. DC 2 mA. |
| Weight | 220g ( 0.52 LB ) with batteries. |
| Dimension | Main Instrument : 163x70x30 mm(6.4x2.8x1.2 inch ) Sensor probe: 82x55x7 mm ( 3.2x2.2x0.3 inch ). |
| Circuit | / |
| Range | Lux : 0 to 50,000 Lux, 3 ranges. Ft-candle : 0 to 5,000 Ft-candle, 3 ranges. |
| Unit | / |
| Sensor Structure | Approx. 0.4 second. |
| Zero Adjustment | Internal adjustment . |
| Over Indication | / |
| Data Hold | / |
| Sampling Time of display | / |
| Power off | / |
| Power Current | / |
