Metravi DT-230 Digital TRMS AC/DC Clamp Meter
Click To Zoom
Metravi DT-230 Digital TRMS AC/DC Clamp Meter
Metravi DT-230 Digital TRMS AC/DC Clamp Meter
The Metravi DT-230 Digital TRMS AC/DC Clamp Meter is a multifunction, ergonomically-designed, battery-operated, robust and reliable device which is made of good quality material and will last long.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 2,740
(GST inclusive price) i-
Base Value: ₹ 2322
-
GST: (18) % ₹ 418
-
Total Value ₹ 2740
₹3,915.00
( - 30% OFF )
Description
Key Features
- 3999 Counts Backlit LCD Display
- MAX/MIN Record Function
- Flashlight to access dark areas
- Auto-Ranging
- Auto Power Off
- Data Hold
- Low Battery Indication

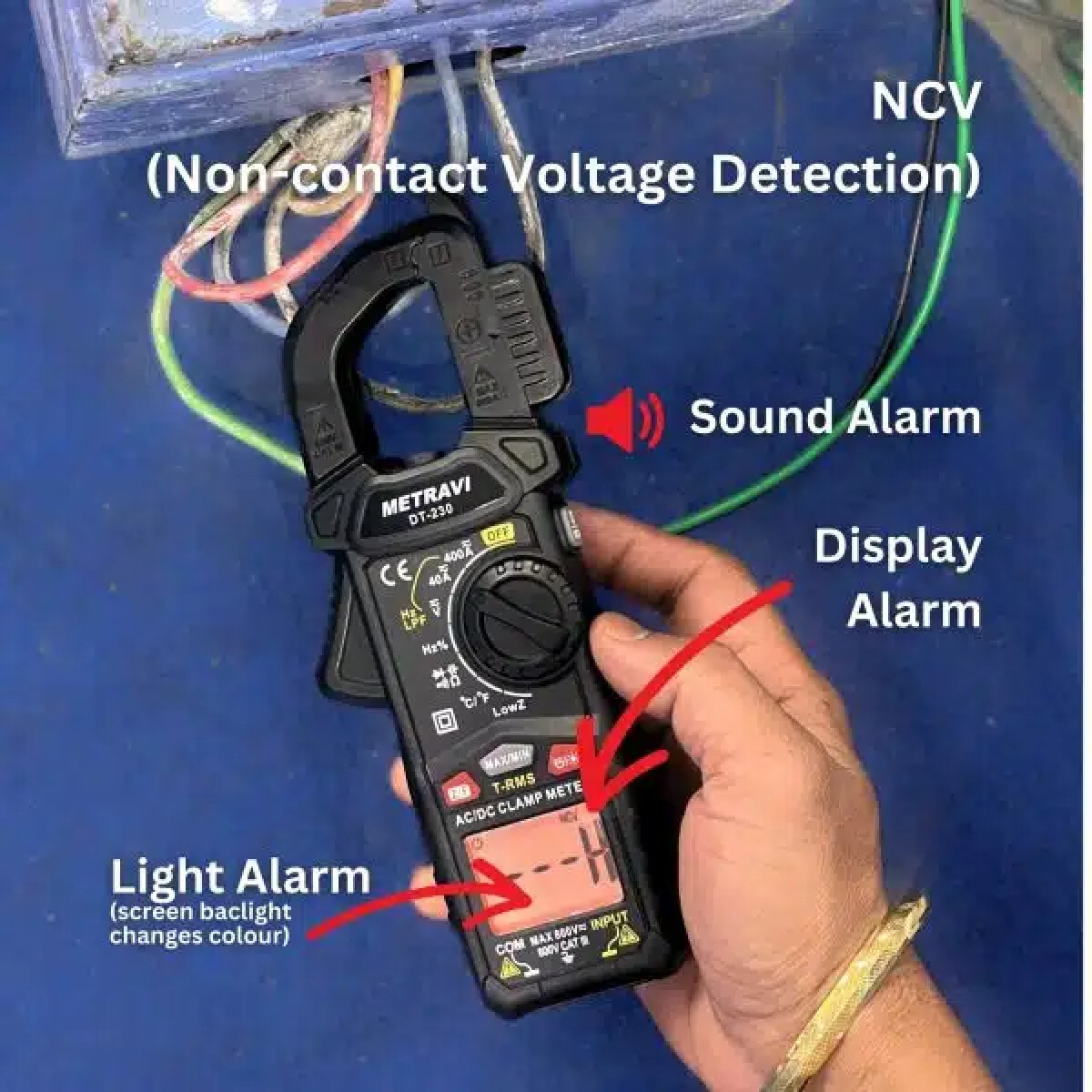

- Non-contact Voltage Detection (NCV)
- Live Wire Indication
- Low Pass Filter (LPF)
- Low Z Voltage Measurement
- Safety: Confirms to EN61010-1,-2-030, EN61010-2-033, EN6132601, CATIII 600V
- DC Voltage: 0 – 400m/4/40/400/600V
- Accuracy: ±0.5%
- AC Voltage (T-RMS): 0 – 4/40/400/600V
- Accuracy: ±1.0%
- DC Current: 0 – 40 / 400A
- Accuracy: ±2.5%
- AC Current (T-RMS): 0 – 40/400A
- Accuracy: ±2.5%
- Resistance: 0 – 400/4k/40k/400k/4M/40M.Ohms
- Accuracy: ±1.0%
- Capacitance: 0 – 40n/400n/4u/40u/400u/4mF
- Accuracy: ±4.0%
- Frequency: 0 – 10/100/1k/10k/100k/1M/10MHz
- Accuracy: ±1.0%
- Temperature: -20 to 1000°C
- Diode Test & Continuity Test
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | ||
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400mV | 0.01mV | ± (0.5%reading+5) |
| 4V | 0.001V | |
| 40V | 0.01V | |
| 400V | 0.1V | |
| 600V | 1V | |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 40A | 0.01A | ± (2.5%reading+8) |
| 400A | 0.1A | |
| AC CURRENT (T-RMS) | ||
| Range | Resolution | Accuracy |
| 40A | 0.01A | 40~400Hz:±(2.5% reading +5) other: ±(3.0% reading +10) |
| 400A | 0.1A | |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 400Ω | 0.1Ω | ± (1.0%reading+5) |
| 4kΩ | 0.001kΩ | |
| 40kΩ | 0.01kΩ | |
| 400kΩ | 0.1kΩ | |
| 4MΩ | 0.001MΩ | |
| 40MΩ | 0.01MΩ | |
| FREQUENCY/DUTY | ||
| Range | Resolution | Accuracy |
| 10Hz | 0.001Hz | ± (1.0%reading+3) |
| 100Hz | 0.01Hz | |
| 1000Hz | 0.1Hz | |
| 10kHz | 0.001kHz | |
| 100kHz | 0.01kHz | |
| 1000kHz | 0.1kHz | |
| 10MHz | 0.001mHz | ± (3.0%reading+3) |
| 1~99% | 0.1% | |
| TEMPERATURE | |||
| Resolution | Accuracy | ||
| °C | 1°C | -20°C~ 0°C | ± 3°C |
| 0°C ~ 400°C | ± 1.0% or ± 2°C | ||
| 400°C ~ 1000°C | ± 2.0% | ||
| °F | 1°F | -4°F~ 32°F | ± 6°F |
| 32°F~ 752°F | ± 1.0% or ± 4°F | ||
| 752°F~ 1832°F | ± 2.0% | ||
