Metravi PRO AI-09 Industrial Acoustic Imager
Metravi PRO AI-09 Industrial Acoustic Imager
The Metravi Pro AI-09 Industrial Acoustic Imager helps industries reduce losses caused due to gas leakage, partial discharge, and other accidents. It shows you the exact location of leaks and the software tells you how much they cost annually, assisting you in keeping energy expenditures and hence, production costs low.
Compared to traditional ultrasonic leak detectors and other conventional methods, the Metravi Acoustic Imager is considerably more accurate and improves energy efficiency.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 8,50,000
(GST inclusive price) i-
Base Value: ₹ 720339
-
GST: (18) % ₹ 129661
-
Total Value ₹ 850000
₹10,90,000.00
( - 22% OFF )
Description
Key Features
- High-performance Microphones for Efficient
- Detection and High Accuracy
- 128 digital MEMS microphones provide
- exceptionally high sensitivity, sound resolution
- and detection accuracy, real-time audio-visual
- display, anti-jamming, help detection.
- Leakage Assessment
- By activating the leak measurement function, the
- camera continuously displays the amount of leaks
- and losses as well as the level of loss.
- PD Detection & PD Type Identification
- Partial discharges are detected before serious
- faults occur, even faster than a thermal camera
- would detect them.
- Analytics and reports
- Template-based processing and recording of data, waveforms, spectra and spectrograms are supported by a report analysis
- tool software, generating ISO-50001 compliant, editable protocols in Excel format.
- Multi Gas Detection
- Leaks of all pressurized gases can be detected, regardless of the type of gas, including SF6.
- Fully Functional
- All-round recordings of test results with photos, audio, and video. Automatic export of reports, ledgers, and data processing
- function.
- Large Test Distance Range: The effective test distance is
0.3m-120m - High Test Accuracy: The leak detection rate is
1m,7bar, 0.37ml/s,
10m,7bar,0.7ml/s. - High efficiency With the high refresh rate of 25FPS and a large field of view of 62°, it helps make efficient inspections.
- High resistance to interference With the “focus” function and advanced anti-interference algorithms, it eliminates peripheral interference.

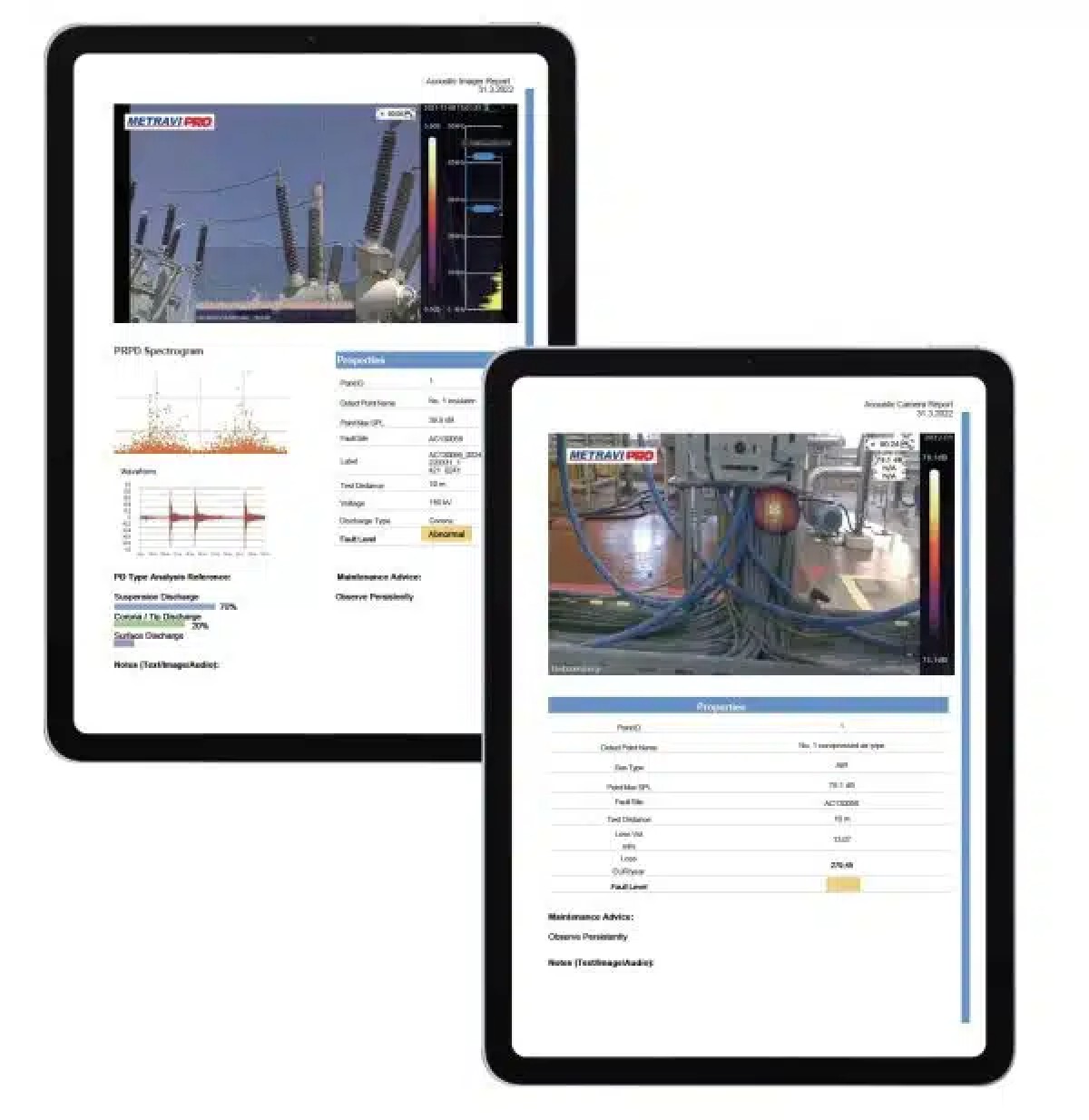

- REPORTING SOFTWARE FEATURES:
- Supports PD Identification and Leak Quantification
To develop a detailed report, the user can input certain variables such as gas type, pressure, gas cost, tester information, etc,
among many other useful and necessary information. The analysis tool calculates leak and loss value estimates for all pressurized
gas leaks and assesses the severity of partial discharges, as well as judges the PD type with PPRD pattern. - Meets ISO 50001-compatible Standards
Reporting software allows the creation of organized and detailed ISO 50001-compatible reports with the images captured and videos
taken using the Metravi Pro AI-09 handheld acoustic imager - Provides Intelligent Algorithm
The built-in software, with cutting-edge algorithms, helps make intelligent maintenance decisions. The user does not need to have indepth knowledge and understanding to explain the results. Metravi developed and manufactured the acoustic imager and
designed the software to fully work in sync to give comprehensive results and analysis, ensuring the accuracy and consistency of
reporting.
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| ACOUSTIC SPECIFICATIONS | |
| Microphone array | 128 channels MEMS microphone |
| Effective test bandwidth | 2kHz-48kHz |
| Dynamic range | 0.5dB-12dB user adjustable |
| Test sound pressure level range | 25.7-132.5dBA |
| Auto max/min dB gain | User-settable, minimum test bandwidth 1kHz |
| Number of digits | 24bit |
| Sound image FOV | 62° |
| Sound image frame rate | At least 25 FPS |
| Leak detection rate | 10m 5bar 0.92ml/s 0.5m 5bar 0.55ml/s |
| Detect distances | 0.3m-120m |
| CAMERA | |
| Camera FOV | 62° |
| Camera focal length | 3.04mm fixed focal length |
| Camera pixel | 8 million pixel |
| DISPLAY | |
| Resolution | 1024*600 (614,400 pixels) |
| Size | 7 inch |
| Touchscreen | Capacitive touchscreen |
| Brightness | Adjustable |
| Photo notes | Up to 5 photos notes for reference |
| Source | Show single or multiple sources |
| Standard palettes | 3: Grayscale, Ironbow, Blue-Red |
| Playback function | View photos, videos anytime, and add notes or tags |
| INTERFACE |
| USB 3.0 Type-C USB host port |
| 3.5mm headphone socket |
| OPERATING ENVIRONMENT | |
| Operating environment | -20°C - +50°C RH 10% - 95% no condensation |
| Storage temperature | -20°C - +60°C |
| Charging temperature | 10°C - 45°C |
| STORAGE | |
| Internal storage | About 8G |
| External storage | TF memory card, at least 64G, expandable to 256G |
| Data storage format | .jpg (picture), mp4 (video), .wav (recordings) |
| Video length | 5 minutes |
| Digital export | TF Card |
| SOFTWARE | |
| Report types | Gas/Electricity, ISO 50001-compliant |
| Analysis | Waveform, Spectrum, Spectrogram, leakage assessment, discharge type discrimination |
| GENERAL | |
| Ingress Protection (IP) | IP54 |
| Size | 272mm×174mm×42mm |
| Weight | 1.7kg |
| Warranty | 2 years |
| Self-diagnostic notification | Array-health test function to identify when microphone array needs attention |
| System | Linux system |
| Certification | CE, FCC, RoHS-compliant, MSDS, CNEX, ATEXCE, FCC, RoHS-compliant, MSDS, CNEX, ATEX |
| GENERAL | |
| Ingress Protection (IP) | IP54 |
| Size | 272mm×174mm×42mm |
| Weight | 1.7kg |
| Warranty | 2 years |
| Self-diagnostic notification | Array-health test function to identify when microphone array needs attention |
