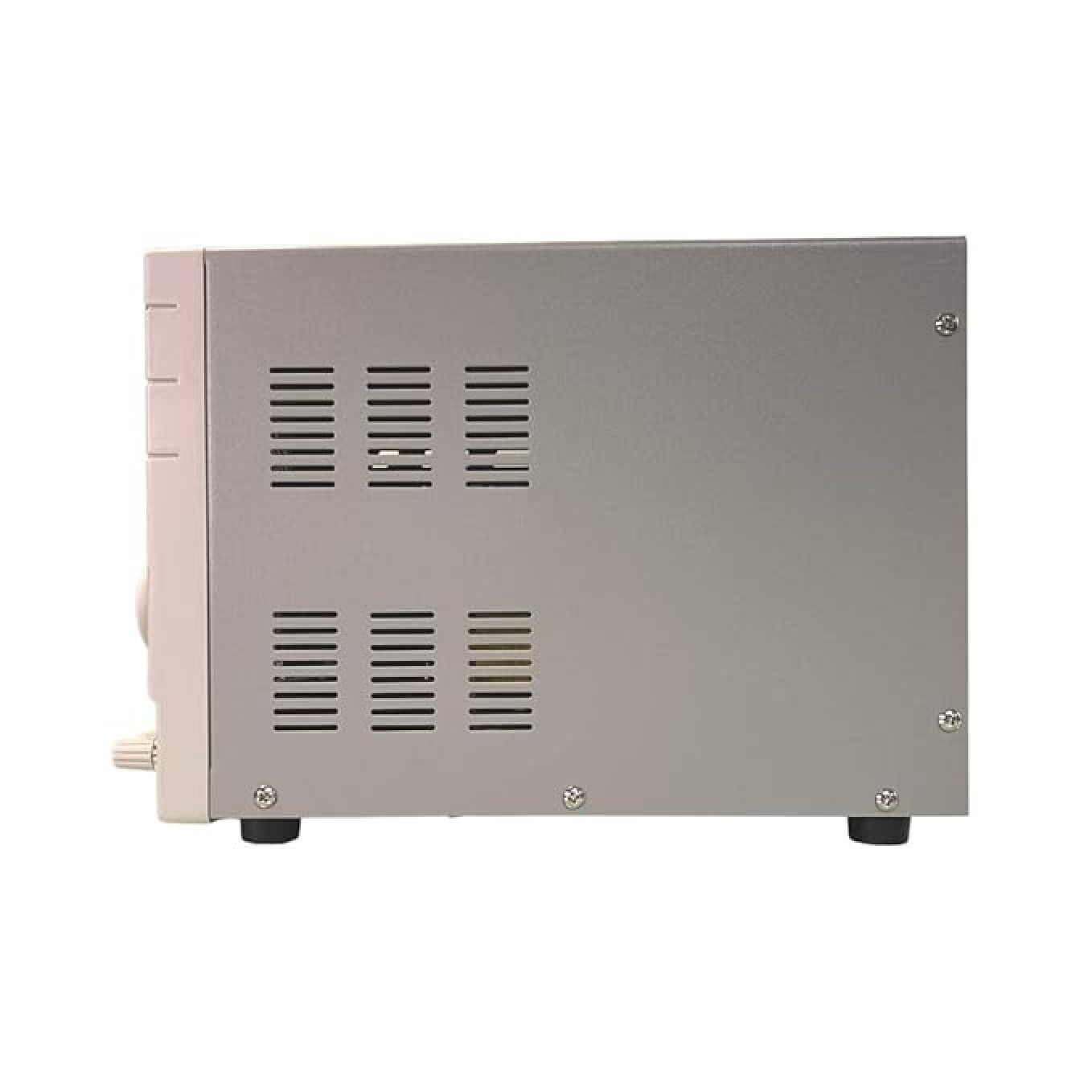

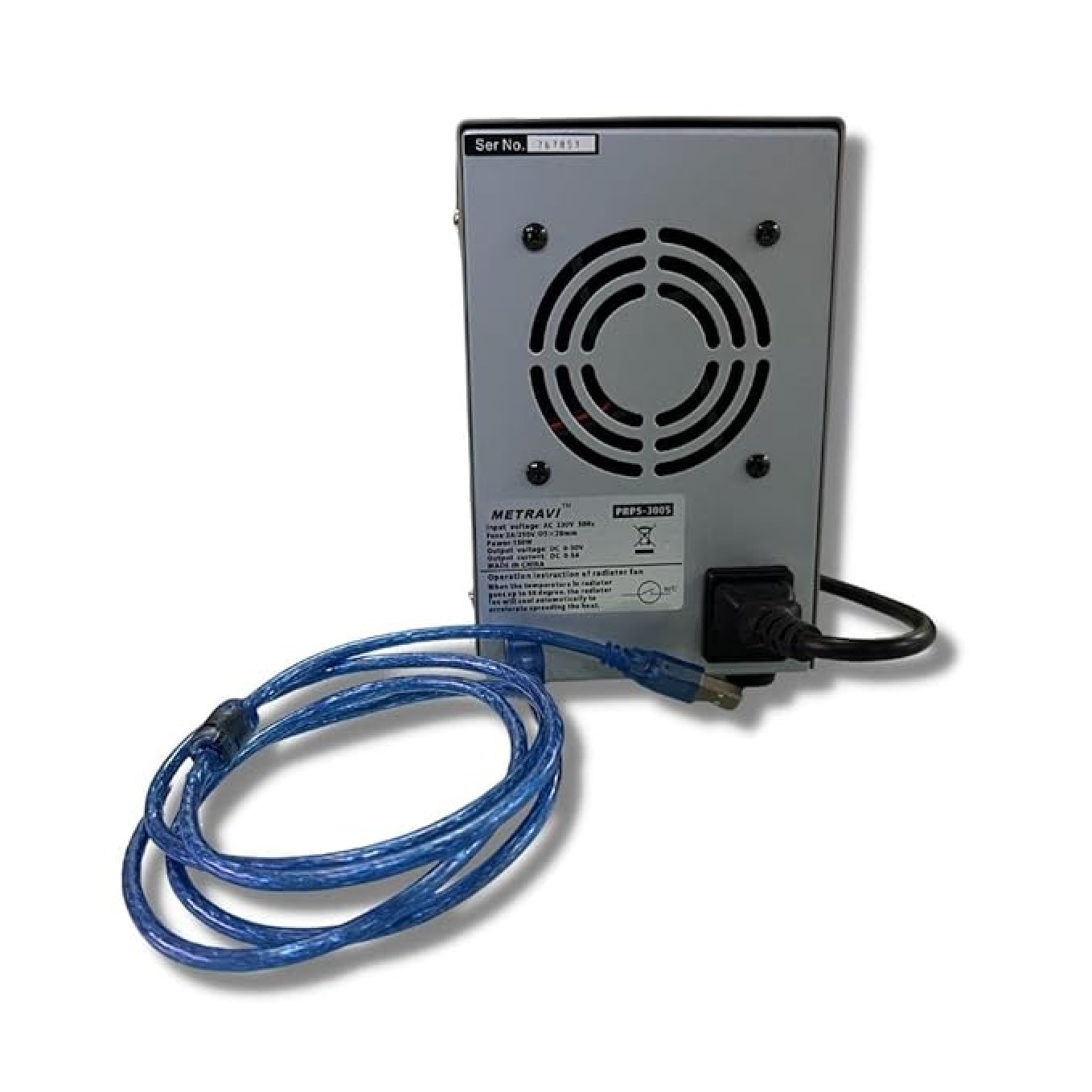

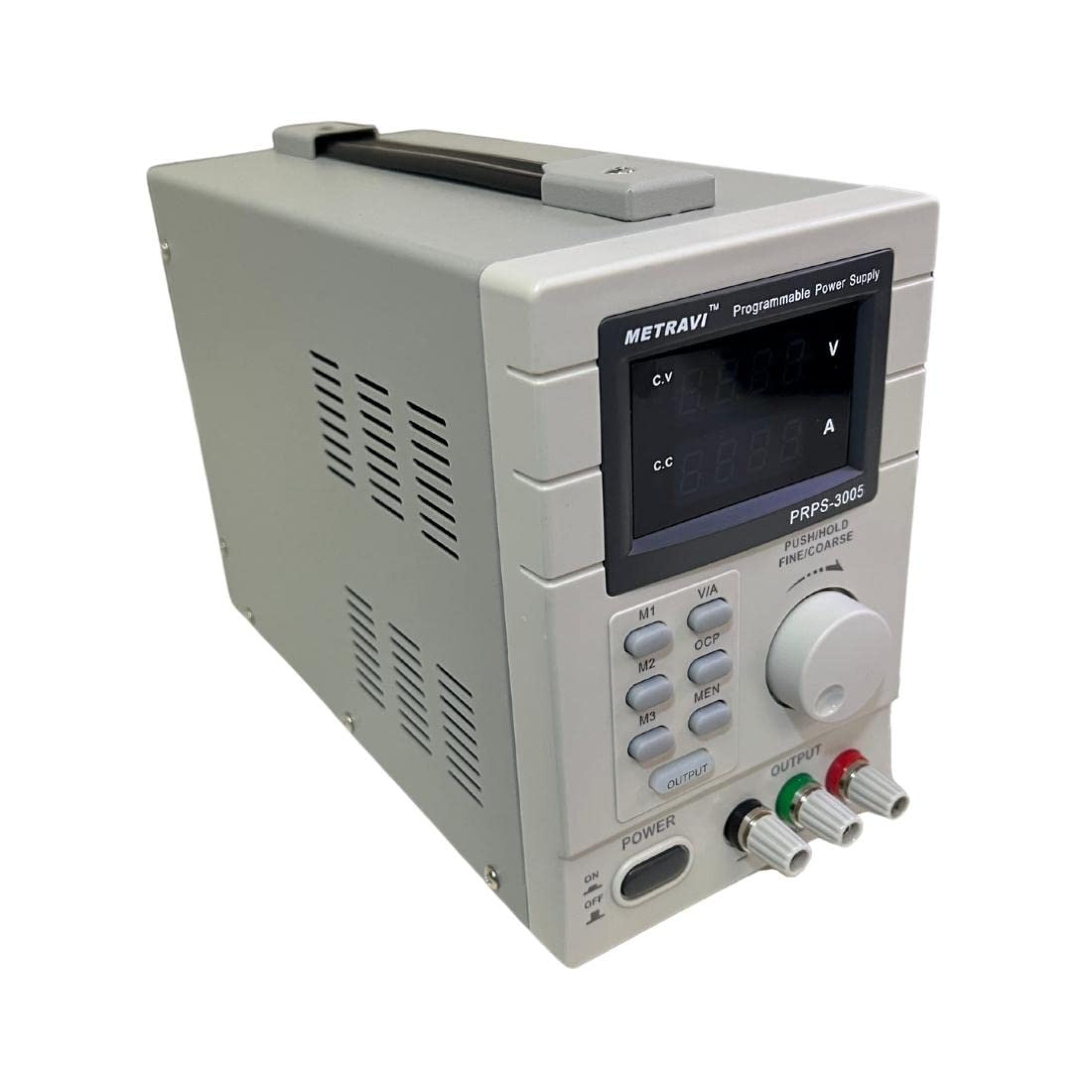

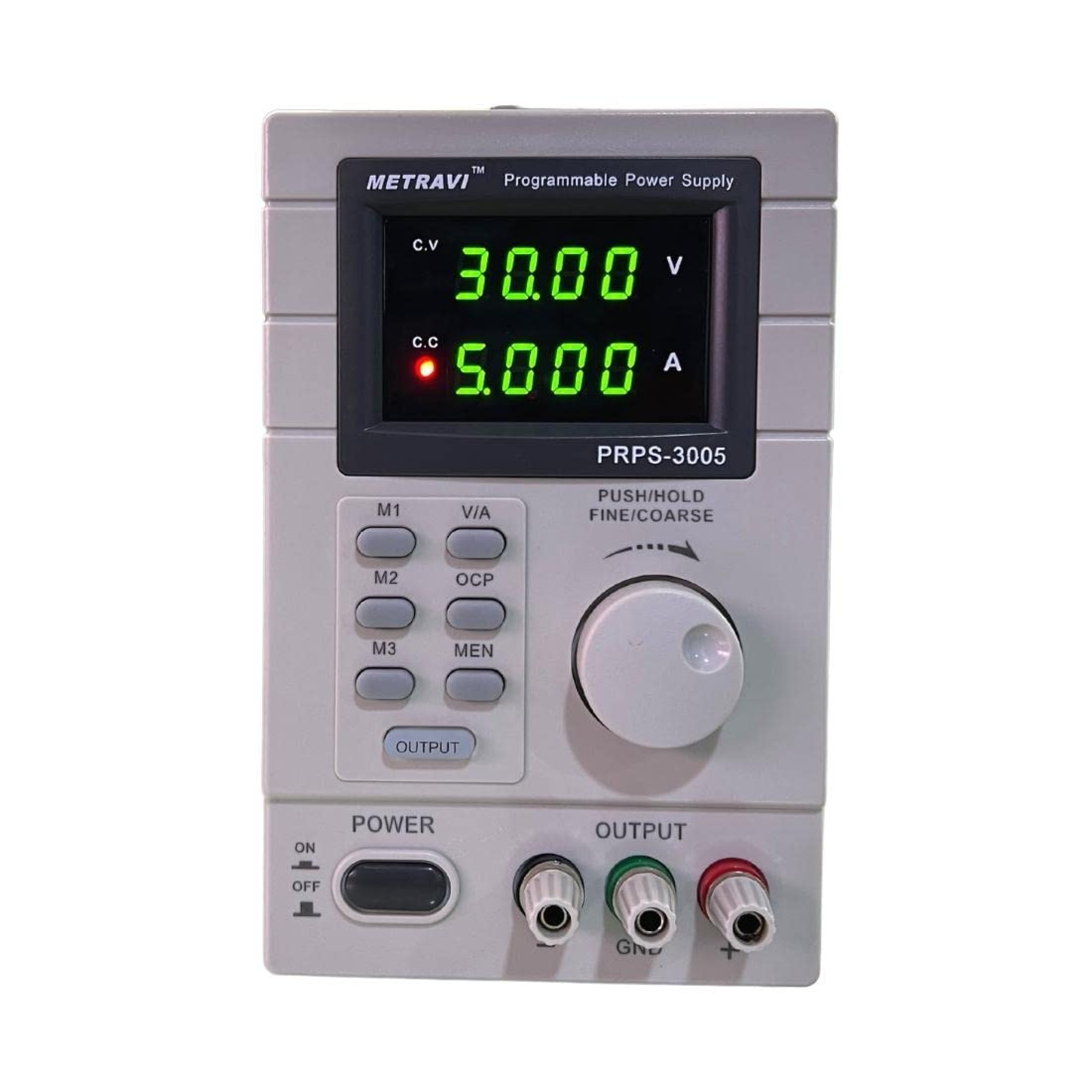

Metravi PRPS-3005 Programmable DC Regulated Power Supply
Click To Zoom
Metravi PRPS-3005 Programmable DC Regulated Power Supply
Metravi PRPS-3005 Programmable DC Regulated Power Supply
The PRPS-3005 is a highly accurate, DC-regulated power supply with an adjustable output. This output can be used for constant voltage (C.V.) and constant current (C.C.).
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 12,620
(GST inclusive price) i-
Base Value: ₹ 10694.9
-
GST: (18) % ₹ 1925.1
-
Total Value ₹ 12620
₹18,043.00
( - 30% OFF )
Description
Key Features
- Input Voltage 220V/50Hz
- Output Voltage 0-30V DCOutput Current 0-5A DC
- Dual LED display for Voltage and Current
- Coarse and fine adjustments of Voltage and Current
- Protection mode: current limiting
- Output connectors: insulated safety plugs
- Organic glass front panel / other panels made of steel
- Memory: 3 programmable memories
- Computer connectivity: PC remote control via USB interface
- Software included
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| Input Voltage | 220 V~/50 Hz |
| Fuse | 2A/250 V |
| Output Voltage | 0-30 V |
| Output Current | 0-5 A |
| Source Effect | C.V.≤ 0.01% + 3 mV |
| C.C. ≤ 0.1% + 3 mA | |
| Load Effect | C.V. ≤ 0.01% + 2 mV |
| C.C.≤ 0.1% + 10 mA | |
| Setup Resolution | 10 mV |
| 1 mA | |
| Setup Accuracy (25°C ± 5°C) | ≤0.5% + 20 mV |
| ≤0.5% + 10 mA | |
| Ripple (20Hz-20MHz) | ≤ 2 mV rms |
| ≤ 3 mA rms | |
| Temperature Coefficient | ≤ 100 ppm + 10 mV |
| ≤ 100 ppm + 5 mA | |
| Read Back Accuracy | 10 mV |
| 1 mA | |
| Read Back Temp. Coefficient | ≤ 100 ppm +10 mV |
| ≤ 100 ppm + 5 mA | |
| Reaction Time (10% rated load) | voltage rise: ≤ 100 ms |
| voltage drop: ≤ 100 ms | |
| Dimensions | 115 (W) x 190 (H) x 240 (D) mm |
| Weight | 5.3Kg |
| Operating Time | 8 hours of continuous use at maximum load |
