Metravi ST-09B Socket Polarity and Earth Leakage Tester

Metravi ST-09B Socket Polarity and Earth Leakage Tester

Metravi ST-09B Socket Polarity and Earth Leakage Tester

(Based On 10 Reviews)

The new Metravi ST-09B is an advanced, electrical socket tester for rapidly detecting whether the socket’s wire connection is correct or not. With RCD test function, it is also a practical
and safe device.

Request Callback

Order In Bulk

Generate Quote

₹ 1,283.00

(GST inclusive price) i
  • Base Value: ₹ 1087.3
  • GST: (18) % ₹ 195.7
  • Total Value ₹ 1283

₹1,283.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features

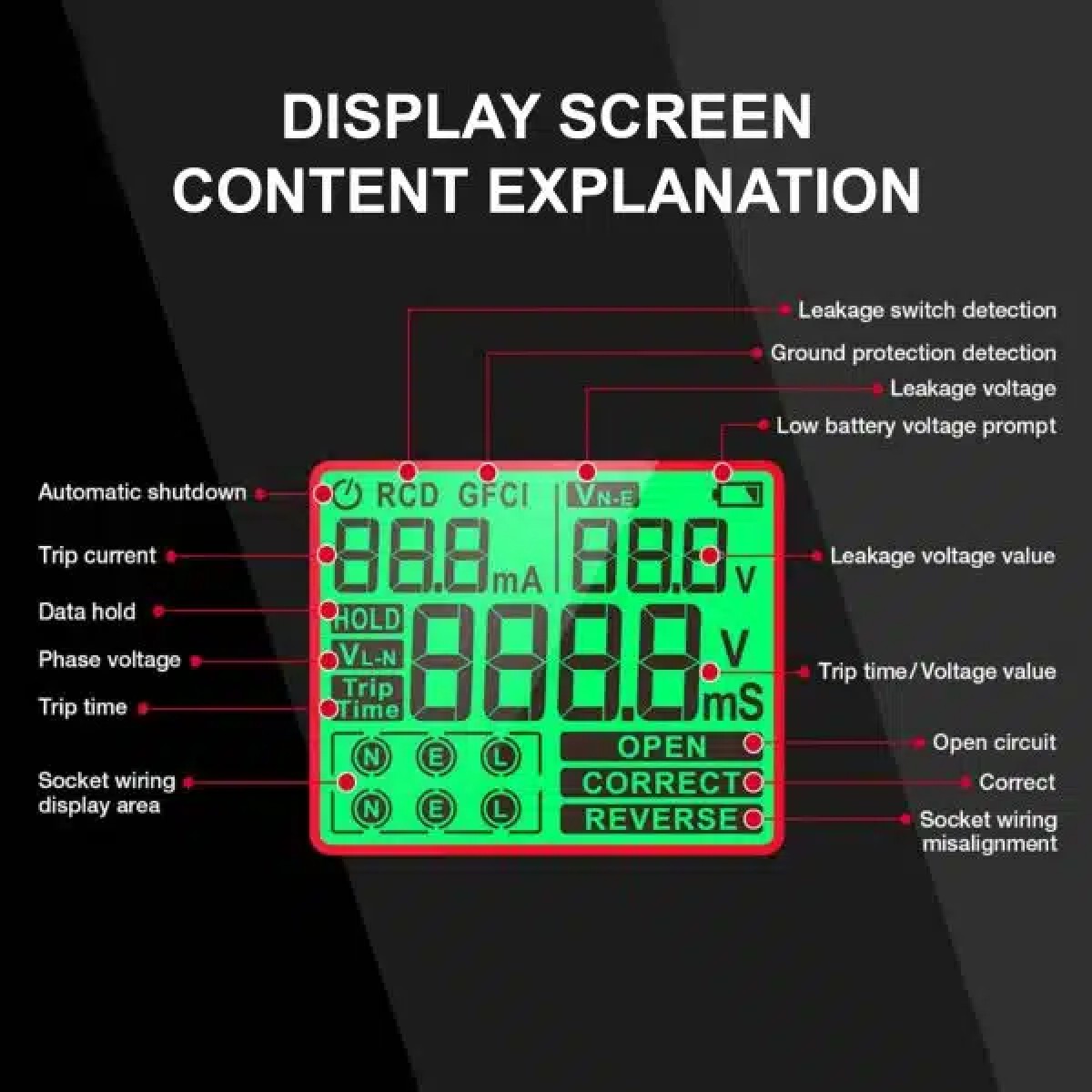

  • Large, back-lit, high-definition display
  •  Socket sequence test
  •  Three-hole socket Line Neutral Earth (L-N-E) detection
  •  Phase Voltage (L_N) measurement
  •  Leakage Voltage (N_E) measurement
  •  RCD Test
  •  Change in the display back-lit color indicates problems
  •  Automatic shutdown
  •  Data Hold



What's in the box?

  • Socket Polarity and Earth Leakage Tester

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical Specification
Display High definition, large, back-lit LCD
Phase voltage30~260V/45~65Hz
Accuracy± (3.0%+2)
Leakage voltage0~99V/45~65Hz
Accuracy± (2.0%+2)
Trip-time10-1000ms
Accuracy± (2.0%+4)



GFCI Test
RCD Test>30mA
Data holdAutomatically locks the data after
three seconds of plugging into the socket
Operating Temperature0°C~40°C
Operating Humidity 20%~75%RH
Storage temperature-10°C~50°C
Storage Humidity20%~80%RH
Altitude≤2000m
Automatic shutdownAbout 5 minutes if no
operation
Weight103 gms
Dimensions67 x 65 x75 mm
SafetyEN61010-1, -2-030, EN61326-1,
CAT II 300V
Power Supply2 x 1.5 AA Alkaline Batteries
