Metravi PRO TI-10P Pocket Thermal Imager
Click To Zoom
Metravi PRO TI-10P Pocket Thermal Imager
Metravi PRO TI-10P Pocket Thermal Imager
The Metravi PRO TI-10P Thermal Imager is a handy, compact, handheld imaging camera used for predictive maintenance, verification.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 42,500
(GST inclusive price) i-
Base Value: ₹ 36016.9
-
GST: (18) % ₹ 6483.1
-
Total Value ₹ 42500
₹60,750.00
( - 30% OFF )
Description
Key Features
- Object Temperature Range: -20° to 150°C (4° to 302°F) / 0° to 550°C (32° to 1022°F)
- Accuracy ±2°C (3.6°F) or ±2% of reading (Environment temperature 10-35°C; Object temperature >0°C)
- Field of View (FoV)/Minimum Focus Distance: 50°x 37°/ 0.5m
- Thermal Sensitivity/NETD: <0.05°C at 30°C (86 °F)/ 80mK
- Image Frequency: 50Hz
- Focus Free
- Zoom: 1-32x continuous, Digital Zoom
- Focal Plane Array (FPA)/Spectral Range: Uncooled microbolometer/8-14μm
- IR Resolution: 120×90 pixels
- Display: 3.5 inch Touchscreen Display, 640×480 pixels
- Image Modes: IR Image, Visual Image, Picture in Picture, Auto-fusion
- Colour Palettes: Iron. Rainbow, Grey. Grey Inverted. Brown, Blue-Red, Hot-Cold. Feather, Above Alarm. Below Alarm. Zone Alarm. Vision Zone
- Center Spot, Three Manual Spots
- Automatic Hot/Cold Markers
- Analysis: Three Area Analysis, Two Line Analysis
- Measurement Corrections: Emissivity. Reflected temperature, Ambient temperature. Atmospheric humidity. Infrared compensation. Distance compensation
- Storage Media: 8GB MicroSD card and 3.4GB internal EMMC
- Video Storage Format: Standard MPEG-4 encode. 640×480 at 30fps, on memory card >60 minutes
- Simultaneous storage of IR and visual images
- Image Storage Format: Standard JPEG or HIR files including measurement data, on memory card >6000 pictures
- Internal image analysis tools. Complete function.

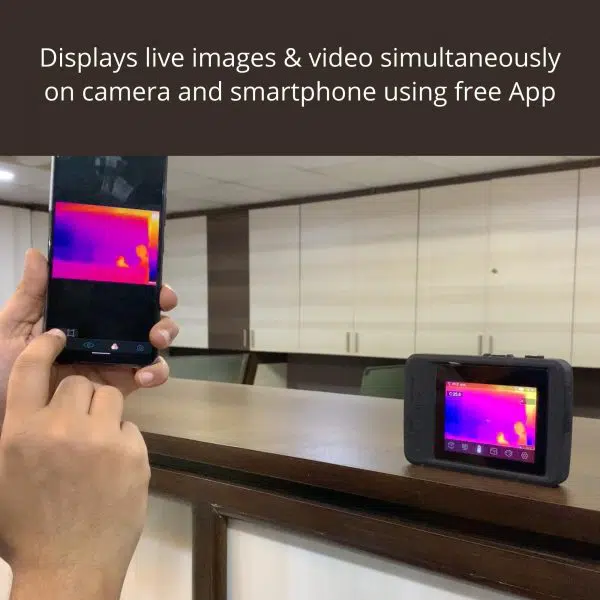

- Interfaces: USB Type C and WiFi Data transfer between camera and PC. Live video on camera and PC.
- IP54 Water splash & dust-proof
- Battery: Li-Ion battery, 4 hours operating time
- Auto Power-of
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Imaging and Optical Data | |
| Field of View (FoV)/Minimum Focus Distance | 50°x 37°/0.5m |
| Thermal Sensitivity/NETD | <0.05°C at 30°C (86 °F)/ 80mK |
| Image Frequency | 50Hz |
| Focus Mode | Focus-free |
| Zoom | 1-32x continuous, Digital Zoom |
| Focal Plane Array (FPA)/Spectral Range | Uncooled microbolometer/8-14µm |
| IR Resolution | 120x90 pixels |
| Image Presentation | |
| Display | 3.5 inch Touchscreen Display, 640x480 pixels |
| Image Modes | IR Image, Visual Image, Picture in Picture, Auto-fusion |
| Colour Palette | Iron. Rainbow, Grey. Grey Inverted. Brown, Blue-Red, Hot-Cold. Feather, Above Alarm. Below Alarm. Zone Alarm. Vision Zone |
| Measurement | |
| Object Temperature Range | -20° to 150°C (4° to 302°F) 0 to 550°C (32° to 1022°F) |
| Accuracy | ±2°C (3.6°F) or ±2% of reading (Environment temperature 10-35°C; Object temperature >0°C) |
| Measurement Analysis | |
| Spot | Center Spot, Three Manual Spots |
| Automatic Hot/Cold Detection | Auto Hot or Cold markers |
| Area | Three Area Analysis |
| Line | Two Line Analysis |
| Measurement Corrections | Emissivity. Reflected temperature, Ambient temperature. Atmospheric humidity. Infrared compensation. Distance compensation. |
| Storage of Videos | |
| Storage Media | 8GB MicroSD card and 3.4GB internal EMMC |
| Video Storage Format | Standard MPEG-4 encode. 640x480 at 30fps, on memory card >60 minutes |
| Video Storage Mode | IR/visual images; simultaneous storage of IR and visual images |
| Storage of Images | |
| Image Storage Format | Standard JPEG or HIR files including measurement data, on memory card >6000 pictures |
| Image Storage Mode | IR/visual images: simultaneous storage of IR and visual images |
| Image Analyses | Internal image analysis tools. Complete function |
| Set-Up | |
| Set-Up Commands | Local adaptation of units, language, date and time formats. information of camera |
| Languages | Multinational |
| Digital Camera | |
| Built-in Digital Camera | 2 Megapixels |
| Built-in Digital Lens Data | FoV 59° |
| Data Communication Interfaces | |
| Interfaces | USB Type C and WiFi |
| USB | Data transfer between camera and PC. Live video on camera and PC |
| WIFI | 802.11, transfer images and realtime video stream |
| Power System | |
| Battery | Li-lon battery, 4 hours operating time |
| Input Voltage | DC 5V |
| Charging System | In camera |
| Power Management | Auto Power-off |
| Environmental Data | |
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| Humidity (Operating and Storage) | 10%~90% |
| Drop Test | 2 mts. Drop-tested |
| Bump | 25g (IEC60068-2-29) |
| Vibration | 2g (IEC60068-2-6) |
| Physical Data | |
| Camera Weight. Incl. Battery | <500g |
| Camera Size (LxWxH) | 133x87x24mm |
