Metravi DIT-911 Digital Insulation Tester
Click To Zoom
Metravi DIT-911 Digital Insulation Tester
Metravi DIT-911 Digital Insulation Tester

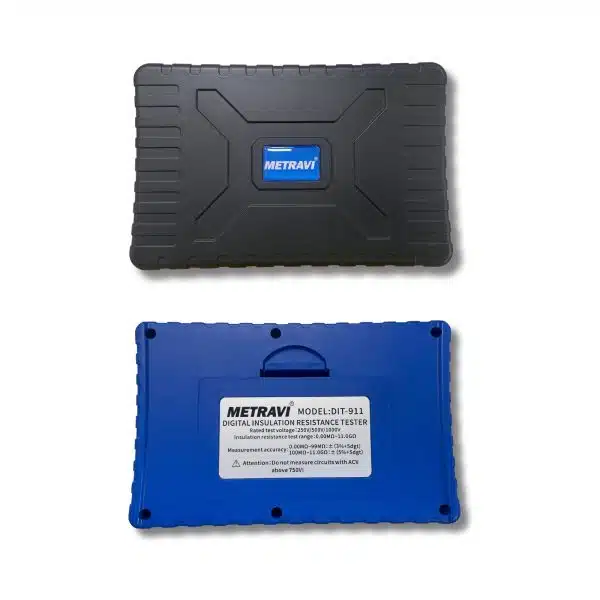

The Metravi DIT-911 is a handy, multi-functional, Digital Insulation Resistance Tester with 3 1/2 Digits 1999 Counts Backlit Display, and measures 0.00MΩ~11.0GΩ at 250V / 500V / 1000V, with high accuracy.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 4,250
(GST inclusive price) i-
Base Value: ₹ 3601.7
-
GST: (18) % ₹ 648.3
-
Total Value ₹ 4250
₹6,075.00
( - 30% OFF )
Description
Key Features
- 3 1/2 Digits 1999 Counts LCD Backlit Display
- Backlight On/Off function
- Lock function for hands-free operation
- Insulation Resistance
- AC Voltage Test
- PI - Polarisation Index measurement
- DAR - Insulation Resistance Value Absorption Ratio
- Automatic Discharge function
- Complies to IEC 61010-1, CATIII 600V
- Double-insulated Housing
- Alarm function
- Power: Battery Operated (6 x 1.5AA batteries)
- Weight: 400gms (including protective cover)
- Dimensions: 165 x 105 x 63mm
- Operating Temperature: 0° to 40°C
- Operating Humidity: 30% to 85%RH
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |||
| Rated Voltage | 250V MAX:5.5GΩ | 500V MAX:5.5GΩ | 1000V MAX:11.0GΩ |
| Range of Accuracy | 0.00MΩ~99MΩ：± （3 %+5dgt） | ||
| Measuring Range | 0.00MΩ~11.0GΩ（When the value is less than or equal to 4.0 MΩ, the buzzer alarms） | ||
| DC Open Circuit Voltage | 250V ±10% | 500V ±10% | 1000V ±10% |
| Rated Test Current | 250KΩ load 0.9mA~1.1mA | 500KΩload 0.9mA~1.1mA | 1MΩload 0.9mA~1.1mA |
| Short Circuit Current | Approximately less than 1.8mA | ||
AC Voltage Test | |||
| Measuring range | AC30V~ AC750V（50Hz/60Hz）Resolution:1V | ||
| Accuracy | ±（2%+3dgt） | ||
