Metravi DIT-913A Digital Insulation Tester

Metravi DIT-913A Digital Insulation Tester
Metravi DIT-913A Digital Insulation Tester
Metravi DIT-913A Digital Insulation Tester
Metravi DIT-913A Digital Insulation Tester
Metravi DIT-913A Digital Insulation Tester

Metravi DIT-913A Digital Insulation Tester

Click To Zoom

Metravi DIT-913A Digital Insulation Tester

Metravi DIT-913A Digital Insulation Tester

(Based On 10 Reviews)

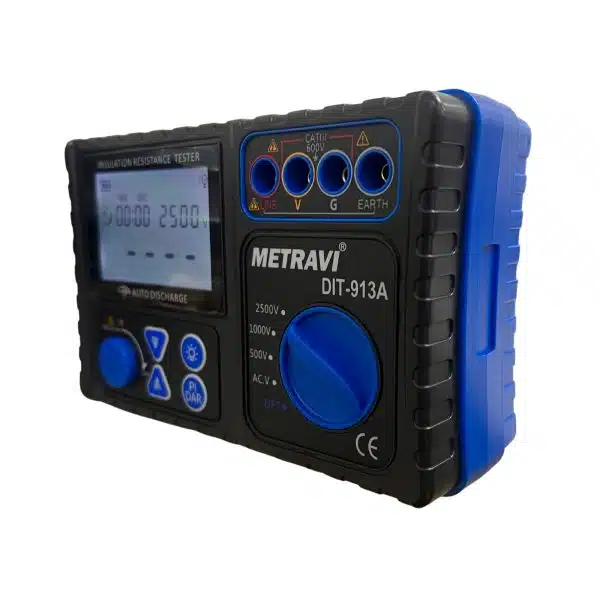

The Metravi DIT-913A is a handy, multi-functional, Digital Insulation Resistance Tester with 3 1/2 Digits 1999 Counts Backlit Display, and measures 0.00MΩ~22.0GΩ at 500V / 1000V / 2500V, with high accuracy.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 5,004

(GST inclusive price) i
  • Base Value: ₹ 4240.7
  • GST: (18) % ₹ 763.3
  • Total Value ₹ 5004

₹7,155.00

( - 30% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • 3 1/2 Digits 1999 Counts LCD Backlit Display
  • Backlight On/Off function
  • Lock function for hands-free operation
  • Insulation Resistance
  • AC Voltage Test
  • PI - Polarisation Index measurement
  • DAR - Insulation Resistance Value Absorption Ratio
  • Automatic Discharge function
  • Complies to IEC 61010-1, CATIII 600V
  • Double-insulated Housing
  • Alarm function
  • Power: Battery Operated (6 x 1.5AA batteries)
  • Weight: 400gms (including protective cover)
  • Dimensions: 165 x 105 x 63mm
  • Operating Temperature: 0° to 40°C
  • Operating Humidity: 30% to 85%RH

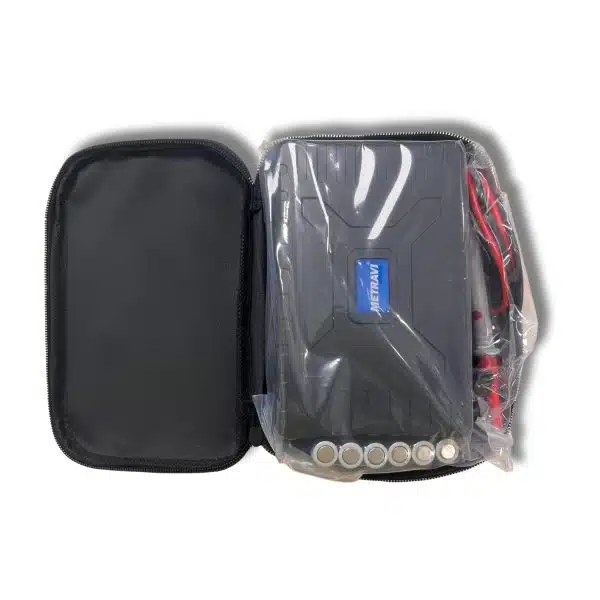

What's in the box?

  • Metravi DIT-913A Digital Insulation Tester
  • Test Leads
  • 1 pair of Crocodile Clips
  • 10MΩ Standard Resistor
  • User Manual
  • Soft Carrying Case

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specification
Rated Voltage500V
MAX:5.5GΩ		1000V
MAX:11.0GΩ 		2500V
MAX:22.0GΩ
Range of Accuracy

0.00MΩ~99MΩ：± （3 %+5dgt)

100MΩ~22.0GΩ：± （5 %+5dgt)

Measuring Range

0.00MΩ~22.0GΩ（When the value is less than or equal to 4.0 MΩ, the buzzer alarms）

DC Open Circuit Voltage500V ±10% 1000V ±10% 2500V ±10%
Rated Test Current250KΩ load
0.9mA~1.1mA		500KΩ load
0.9mA~1.1mA		1MΩ load
0.9mA~1.1mA
Short Circuit Current

                                                                                                                                                                       Approximately less than 1.8mA

AC Voltage Test
Measuring rangeAC30V~ AC750V（50Hz/60Hz）Resolution:1V
Accuracy±(2%+3dgt）
