Metravi 19-TRMS Digital TRMS Multimeter
Click To Zoom
Metravi 19-TRMS Digital TRMS Multimeter
Metravi 19-TRMS Digital TRMS Multimeter

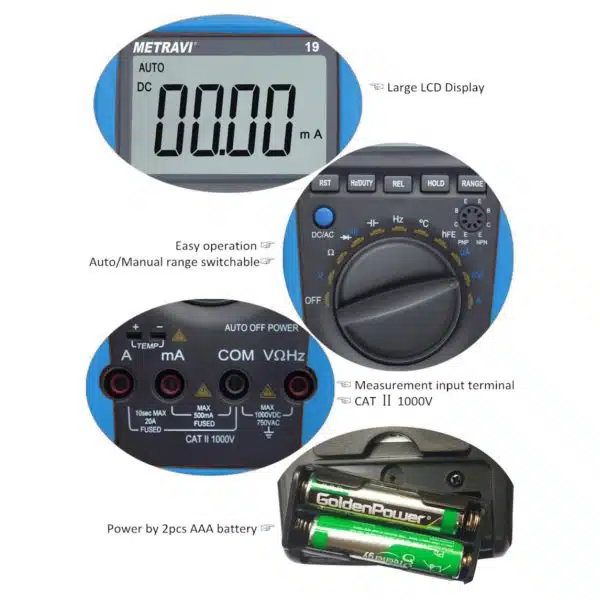

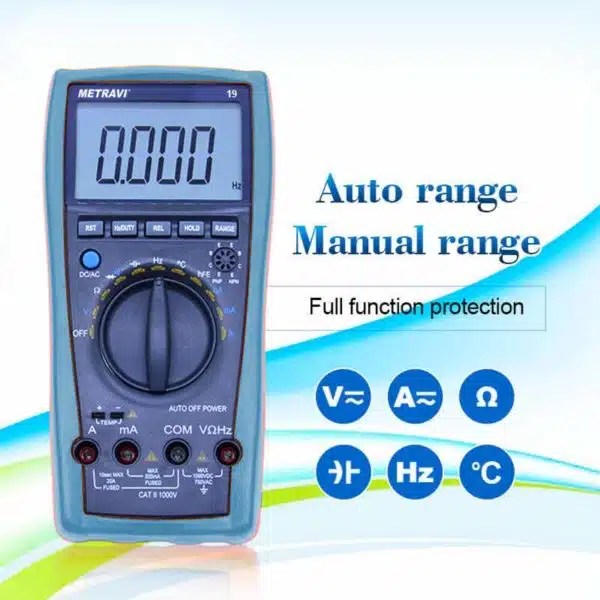

The 19-TRMS Digital TRMS Multimeter is a 3 3/4 digital multimeter with high stability and performance. It uses an LCD with a 20mm high figure, which makes the reading clearer and the operation more convenient. It can test DCV, ACV, DCA, ACA, resistance, capacitance, frequency, NCV, duty cycle, temperature, diode, and continuity.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 2,460
(GST inclusive price) i-
Base Value: ₹ 2084.7
-
GST: (18) % ₹ 375.3
-
Total Value ₹ 2460
₹3,510.00
( - 30% OFF )
Description
Key Features
- 3-3/4 Digits 3999 Counts Jumbo LCD Display
- T-RMS Auto-ranging
- Non Contact Voltage Detector
- Auto Power Off
- AC Bandwidth 40 – 400Hz
- Transistor Test
- Data Hold, MAX-MIN Record
- DC Voltage: 0 – 400mV/4V/40V/400V/1000V
- Accuracy: ±0.5%
- AC Voltage (T-RMS): 0 – 400mV/4V/40V/400V/750V
- Accuracy: ±0.8%
- DC Current: 0 – 400uA/4000uA/40mA/400mA/4A/20A
- Accuracy: ±1.0%
- AC Current (T-RMS): 0 – 400uA/4000uA/40mA/400mA/4A/20A
- Accuracy: ±1.5%
- Resistance: 0 – 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Accuracy: ±0.8%
- Capacitance: 0 – 40nF/400nF/4uF/40uF/400uF/4mF/40mF
- Accuracy: ±2.5%
- Frequency: 0 – 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/30MHz
- Accuracy: ±0.5%
- Temperature: -40°C~1000°C
- Low battery indication
- Accuracy: ±1.0%
- Diode Test and Continuity Test
- Confirms to CE, EMC/LVD, IEC101
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display | LCD |
| Max Display | 4000 (3 3/4 digits, automatic polarity, and unit symbol display) |
| Measurement Method | Analog to digital converter (in micro processor ADC+MCU) |
| Sampling rate | Approx.3 times/sec. |
| Over-Range Display | "OL" displayed |
| Working Environment | (0~40)°C |
| Relative Humidity | <80% |
| Storage Condition | (-10~50)°C, relative humidity: <80% |
| Battery | 2 pieces 1.5V battery ("AAA" 7# battery) |

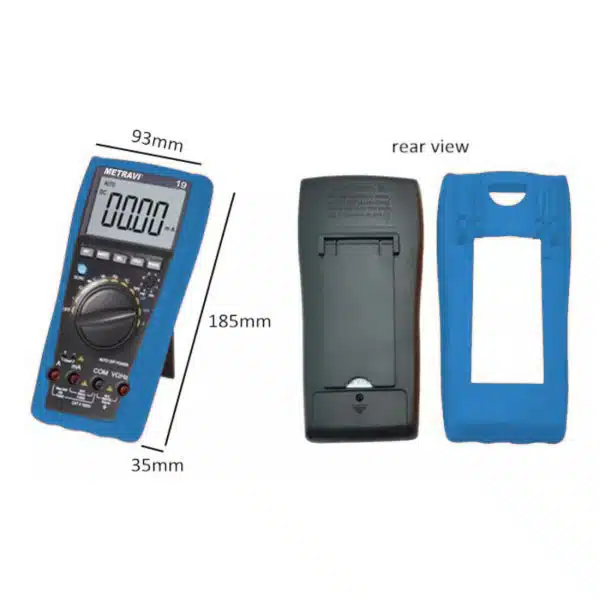

| Dimension | 185×93×35mm (length x width x height) |
| Weight | Approx. 290g (including battery) |
| DC Voltage (DCV) | ||
| Range | Accuracy | Resolution |
| 400mV | ±(0.5%+5d | 0.1mV |
| 4V | 1mV | |
| 40V | 10mV | |
| 400V | 100mV | |
| 1000V | ±(1.0%+5d) | 1V |
| AC Voltage (ACV) (True RMS) | ||
| Range | Accuracy | Resolution |
| 400mV | ±(1.5%+10d) | 0.1mV |
| 4V | ±(0.8%+10d) | 1mV |
| 40V | 10mV | |
| 400V | 100mV | |
| 750V | ±(1.0%+10d) | 1V |
| Resistance (Ω) | ||
| Range | Accuracy | Resolution |
| 400Ω | ±(0.8%+5) | 0.1Ω |
| 4ΚΩ | ±(0.8%+2) | 1Ω |
| 40ΚΩ | 10Ω | |
| 400ΚΩ | 100Ω | |
| 4ΜΩ | 1ΚΩ | |
| 40ΜΩ | ±(1.2%+5) | 10ΚΩ |
| DC Current (DCA) | ||
| Range | Accuracy | Resolution |
| 400uA | ±(1.0%+5) | 0.1μΑ |
| 4000uA | 1μΑ | |
| 40mA | 10μΑ | |
| 400mA | 100μΑ | |
| 4A | 1mA | |
| 20A | ±(2.0%+5) | 10mA |
| AC Current (ACA) | ||
| Range | Accuracy | Resolution |
| 400uA | ±(1.2%+10) | 0.1μΑ |
| 4000uA | 1μΑ | |
| 40mA | 10μΑ | |
| 400mA | 100μΑ | |
| 4A | 1mA | |
| 20A | ±(2.0%+10 | 10mA |
| Capacitance (C) | ||
| Range | Accuracy | Resolution |
| 40nF | ±(2.5%+6) | 10pF |
| 400nF | ±(2.5%+5) | 100pF |
| 4uF | 1nF | |
| 40uF | 10nF | |
| 400uF | ±(5.0%+8) | 100nF |
| 4mF | 1uF | |
| 40mF | 10uF | |
| Frequency (F) | ||
| Range | Accuracy | Resolution |
| 10Hz | ± (0.5% + 4) | 0.001Hz |
| 100Hz | 0.01Hz | |
| 1000Hz | 0.1Hz | |
| 10kHz | 1Hz | |
| 100kHz | 10Hz | |
| 1MHz | 100Hz | |
| 30MHz | 1kHz | |
| Transistor (hFE) | ||
| Measurement | Display Range | Test Conditions |
| hFE NPN or PNP | 0~1000 | Base current is approx 15uA, Vce is about 4.5V |
| Temperature(°C ) | ||
| Range | Accuracy | Resolution |
| -40° C ∼ 1000 °C | < 400 °C± (1% + 5) ≥400 °C ± (1.5% + 15) | 1 °C |
| 0° F ∼ 1832 °F | < 750° + (1% + 5) ≥ 750° + (1.5% + 15) | 1°F |
