Metravi XB-30 Digital Multimeter
Click To Zoom

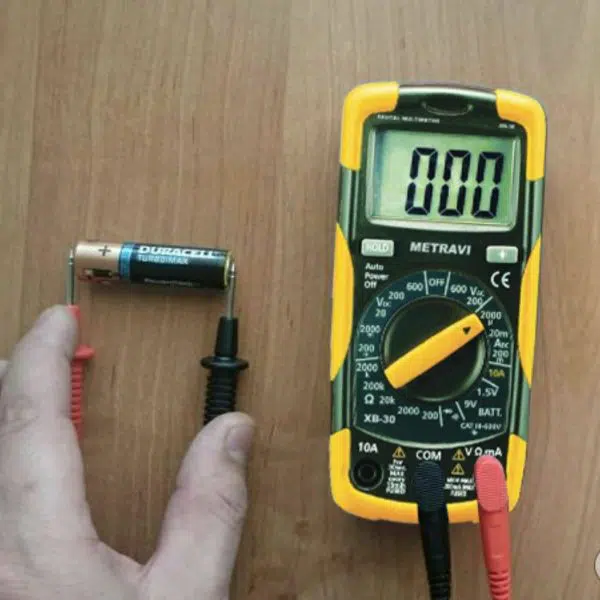

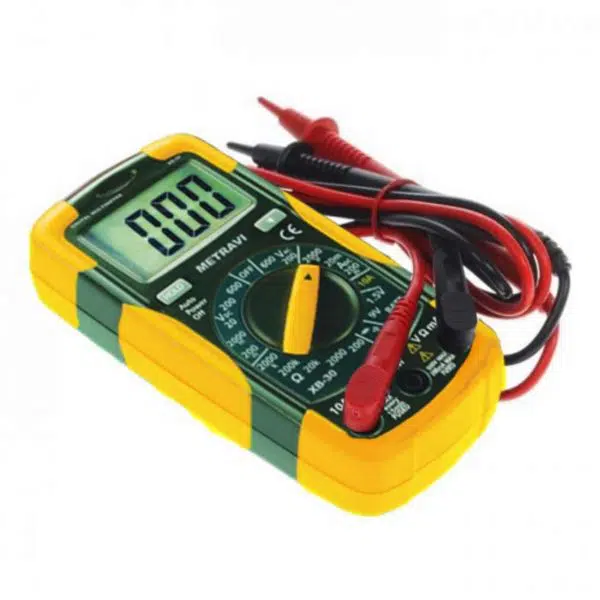

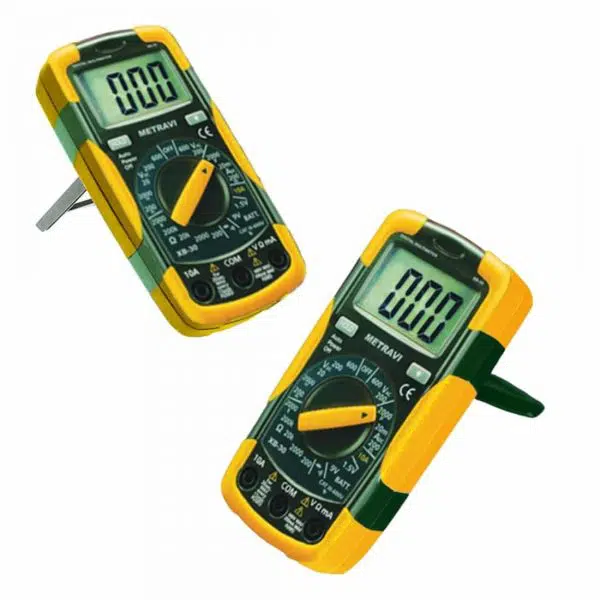

Metravi XB-30 Digital Multimeter
Metravi XB-30 Digital Multimeter
3-1/2 Digits, Backlit LCD, Fully Protected, Data Hold, AC Voltage, DC Voltage, DC Current, Resistance, Diode & Continuity Test.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,670
(GST inclusive price) i-
Base Value: ₹ 1415.3
-
GST: (18) % ₹ 254.7
-
Total Value ₹ 1670
₹2,228.00
( - 25% OFF )
Description
Key Features
- Display: 1999 (3 ½) Count , 15mm Backlit LCD
- Auto Power Off
- Over Load Protection of 500V DC/AC RMS
- DC Voltage: 0-200mV/2V/20V/200V/600V
- Accuracy: ±0.5%
- AC Voltage: 0-200V/600V
- Accuracy: ±1.2%
- DC Current: 0-2000µA/20mA/200mA/10A
- Accuracy: ±1.0%
- Resistance: 0-200/2K/20K/200K/2M.ohms
- Accuracy: ±1.0%
- Battery Test: 9V/1.5V
- With Diode Test, Continuity Test and Data Hold.
- Confirms to CE, CAT-III 600V, IEC 1010-1

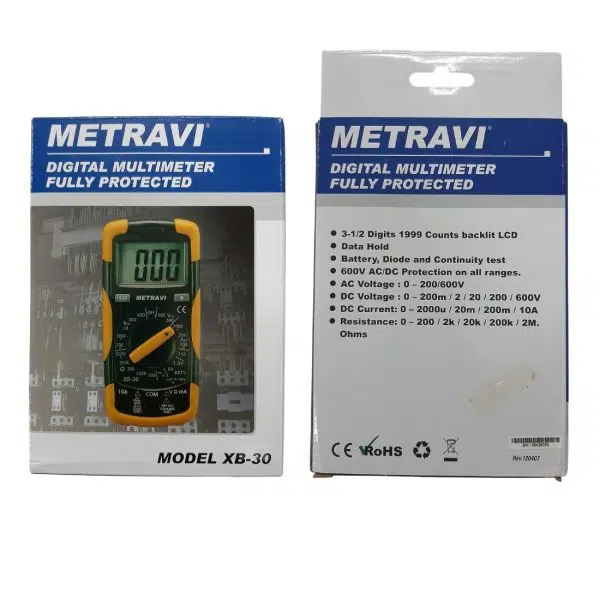

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display | 31½ digit, 2000 count Backlit LCD, 1.1" digits |
| Data Hold | To Freeze the displayed data |
| Overrange indication | "1" is displayed |
| Polarity | Automatic (no indication for positive polarity); Minus (-) sign for negative polarity. |
| Measurement Rate | 2 times per second, nominal |
| Low Battery Indication | "BAT" is displayed if battery voltage drops below operating voltage |

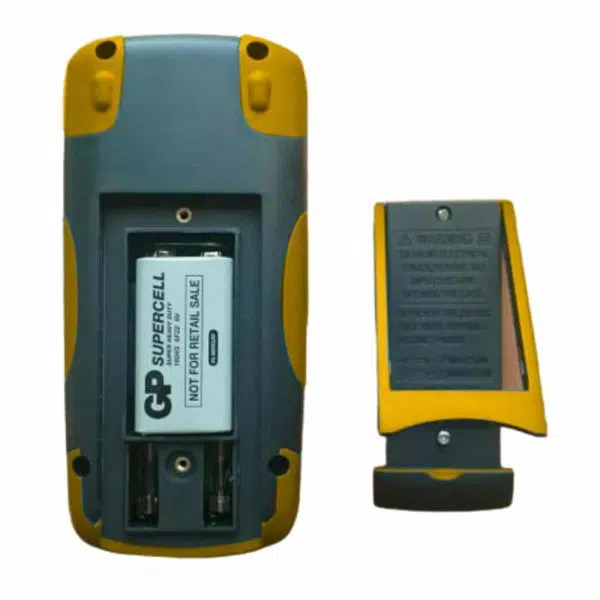

| Battery | one 9 volt (NEDA 1604) battery |
| Fuses | mA, µA ranges; 0.2A/250V fast blow A range; 10A/250V fast blow |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative Humidity | <70% operating, <80% storage |
| Operating Altitude | 7000ft. (2000) meters maximum. |
| Weight | 255g |
| Size | 150mm x 70mm x 48mm |
| Safety | For indoor use and by Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient over voltages less than Overvoltage Category III. |
| Diode Test | Test current of 1mA maximum, open circuit voltage 2.8V DC typical |
| Continuity Check | Audible signal will sound if the resistance is less than approximately 302 |
| Battery Test current | 9V (6mA); 1.5V (100mA) |
| Input Impedance | >1ΜΩ |
| ACV Bandwidth | 45Hz to 450Hz |
| DCA voltage drop | 200mV |
| Technical Specification | |||
| Function | Range | Resolution | Accuracy |
| DC Voltage (V DC) | 200mV | 0.1mV | ± (0.5% reading + 2 digits) |
| 2000mV | 1mV | ||
| 20V | 0.01V | ||
| 200V | 0.1V | ± (0.8% reading + 2 digits) | |
| 600V | 1V | ||
| AC Voltage (V AC) | 200V | 0.1V | ± (1.2% reading + 10 digits 50/60Hz) |
| 600V | 1V | ||
| DC Current (A DC) | 2000μΑ | 1μΑ | ± (1.0% reading + 2 digits) |
| 20mA | 10μΑ | ||
| 200mA | 100μΑ | ± (1.2% reading + 2 digits) | |
| 10A | 10mA | ± (2.0% reading + 2 digits) | |
| Resistance | 200Ω | 0.1Ω | ± (0.8% reading + 2 digits) |
| 2000Ω | 1Ω | ± (1.0% reading + 2 digits) | |
| 20ΚΩ | 0.01kΩ | ||
| 200ΚΩ | 0.1kΩ | ||
| 2000ΚΩ | 1ΚΩ | ||
| Battery Test | 9V | 10mV | ± (1.0% reading + 2 digits) |
| 1.5V | 1mV | ||
