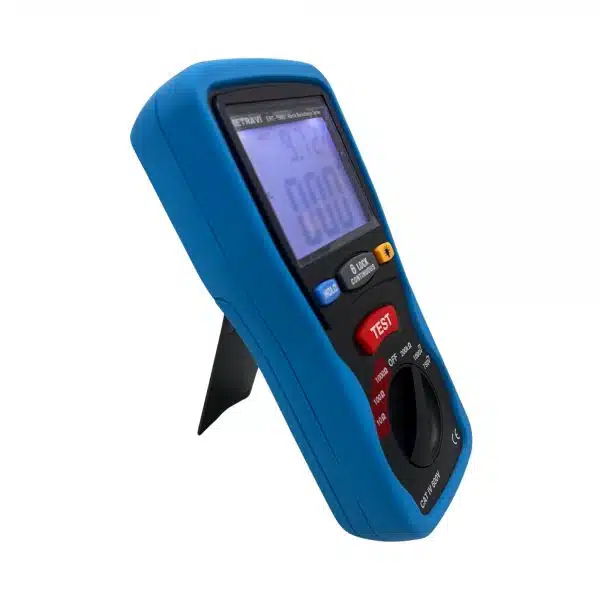

Metravi ERT-1502R Digital Earth Resistance Tester with Kit

Click To Zoom

Metravi ERT-1502R Digital Earth Resistance Tester with Kit

Metravi ERT-1502R Digital Earth Resistance Tester with Kit

(Based On 10 Reviews)

The Metravi ERT-1502 is an electronic, digital, earth resistance tester and a direct replacement or the conventional hand generator type tester for 0-20 / 200 / 2000Ω, and features 4 Terminals with a Testing Kit and Cables in a hard carrying case

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 12,938.00

(GST inclusive price) i
  • Base Value: ₹ 10964.4
  • GST: (18) % ₹ 1973.6
  • Total Value ₹ 12938

₹17,415.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features

  • Data Hold facility
  • Displays test result and battery voltage on the same screen
  • LOCK Button for continuous HANDS-FREE measurement
  • Both Earth Resistance and Earth Resistivity can be measured
  • Can be used in 4 Terminal and 3 Terminal configurations
  • 4 Digits EXTRA LARGE Backlit Dual LCD Display
  • Earth Resistance Range : 0 – 20/200/2000 Ohms
  • Accuracy: ±2%
  • Low Resistance Range : 0 – 200 k.Ohms
  • Accuracy: ±2%
  • DC Voltage : 0 – 1000V
  • Accuracy: ±0.8%
  • AC Voltage : 0 – 750V
  • Accuracy: ±1.2%
  • Complies with CE, CAT-III 1000V
  • Low Battery Indication
  • Complete with Testing Kit
  • Rechargeable Battery and Battery Charger can be provided at extra cost



What's in the box?

  • Metravi  ERT-1502R Digital Earth Resistance Tester with Kit
  • 4 sets of Test kits
  • 4pcs iron rods
  • 6pcs battery
  • Hard Carrying Case
  • Manual

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General Specification
Earth resistance range0-20/200/2000Ω
DisplayLarge Backlit LCD with dual display
Multimeter function Range200kΩ, 750V/ACV, 1000V/DCV.
Sampling Rate2.5 times per second.
Zero AdjustmentAutomatic.
Over Range IndicatorNumber 1 of highest digit is displayed.
Data HoldTo freeze the displayed data
Lock FacilityFor continuous hands free operation
Operating Temperature0°C to 40°C (32°F to 104°F); < 80% RH
Storage Temperature-10°C to 60°C (14°F to 140°F); < 70% RH
Power sourceDC9V (6x1.5V Size "AA" battery or Equivalent
Dimensions200(L) x 92(W) x 50(H) mm
WeightApprox. 700g include battery
Optional AccessoriesRe-chargeable Battery and battery charger
Electrical SpecificationsAccuracies are specified in the way: ± (...% of reading +...digits) at 23°C ± 5°C, below 80% RH.



Technical Specification
Earth resistance
RangeResolutionAccuracy
20Ω0.01Ω+(3%+12)
200Ω0.12+(3%+3d)
20002±(3%+3d)



OHMS
RangeResolutionAccuracyOverload Protection
200ΚΩ0.1ΚΩ±(1%+2d250VRMS



DC Voltage
RangeResolutionAccuracyInput ImpedanceOverload Protection
1000V1V±(08%+3d)10ΜΩ1000VRMS



AC Voltage (40Hz~400Hz)
RangeResolutionAccuracyInput ImpedanceOverload Protection
750V1V±(1.2%+10d)10ΜΩ750VRMS
