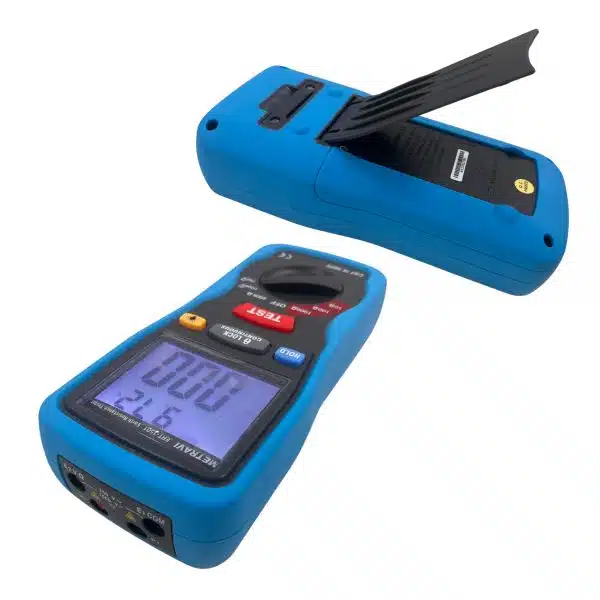

Metravi ERT-1501 Digital Earth Resistance Tester with Kit
Click To Zoom
Metravi ERT-1501 Digital Earth Resistance Tester with Kit
Metravi ERT-1501 Digital Earth Resistance Tester with Kit
The Metravi ERT-1501 is an electronic, digital, earth resistance tester and a direct replacement or the conventional hand generator type tester for 0-10/100/10002, and features 4 Terminals with a Testing Kit and Cables in a hard carrying case.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 8,030
(GST inclusive price) i-
Base Value: ₹ 6805.1
-
GST: (18) % ₹ 1224.9
-
Total Value ₹ 8030
₹11,475.00
( - 30% OFF )
Description
Key Features of Metravi ERT-1501 Digital Earth Resistance Tester
- Data Hold facility
- Displays test result and battery voltage on the same screen
- LOCK Button for continuous HANDS FREE measurement
- Both Earth Resistance and Earth Resistivity can be measured
- Can be used in 4 Terminal and 3 Terminal configurations
- Display : 4 Digits EXTRA LARGE Backlit Dual LCD Display
- Earth Resistance Range : 0 – 10/100/1000 Ohms
- Accuracy : ±3% + 2d
- Low Resistance Range : 0 – 200 k.Ohms
- Accuracy : ±2%
- DC Voltage : 0 – 1000V
- Accuracy : ±0.8%
- AC Voltage : 0 – 750V
- Accuracy : ±1.2%
- Complies with CE, CAT-III 1000V
- Low Battery Indication
- Complete with Testing Kit
- Re-Chargeable Battery and Battery Charger can be provided at extra cos
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Earth resistance range | 0-10/100/10002 |
| Display | Large Backlit LCD with dual display |
| Multimeter function Range | 200kΩ, 750V/ACV, 1000V/DCV. |
| Sampling Rate | 2.5 times per second. |
| Zero Adjustment | Automatic. |
| Over Range Indicator | Number 1 of highest digit is displayed. |
| Data Hold | To freeze the displayed data |
| Lock Facility | For continuous hands free operation |
| Operating Temperature | 0°C to 40°C (32°F to 104°F); < 80% RH |
| Storage Temperature | -10°C to 60°C (14°F to 140°F); <70% RH |
| Power source | DC9V (6x1.5V Size "AA" battery or Equivalent |
| Dimensions | 200(L) x 92(W) x 50(H) mm |
| Weight | Approx. 700g include battery |
| Optional Accessories | Re-chargeable Battery and battery charger |
| Electrical Specifications | Accuracies are specified in the way: ±(...% of reading +...digits) at 23°C±5°C, below 80% RH. |
| Technical Specification | ||
| Earth resistance | ||
| Range | Resolution | Accuracy |
| 10Ω | 0.01Ω | ±(3%+1Ω) |
| 100Ω | 0.1Ω | ±(3%+3d) |
| 1000Ω | 1Ω | ±(3%+3d) |
| OHMS | |||
| Range | Resolution | Accuracy | Overload Protection |
| 200ΚΩ | 0.1ΚΩ | ±(1%+2d) | 250VRMS |
| DC Voltage | ||||
| Range | Resolution | Accuracy | Input Impedance | Overload Protection |
| 1000V | 1V | ±(0.8%+3d) | 10ΜΩ | 1000 VRMS |
| DC Voltage | ||||
| Range | Resolution | Accuracy | Input Impedance | Overload Protection |
| 750V | 1V | ±(1.2%+10d) | 10ΜΩ | 750 VRMS |
