Metravi 1334 Lux Meter with USB PC Interface
Click To Zoom

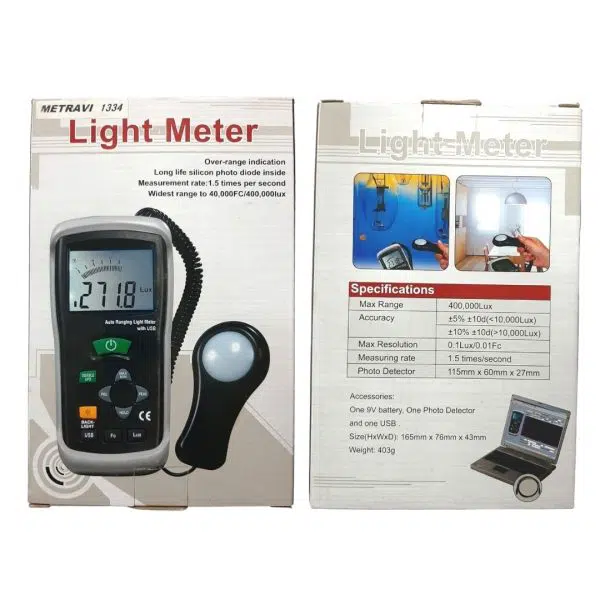

Metravi 1334 Lux Meter with USB PC Interface
Metravi 1334 Lux Meter with USB PC Interface
Measures up to 400000 Lux/40000 Ft Candle , Data & Peak Hold, Max Min Record, USB PC Interface, Backlit LCD With Analogue Bargraph.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 6,800
(GST inclusive price) i-
Base Value: ₹ 5762.7
-
GST: (18) % ₹ 1037.3
-
Total Value ₹ 6800
₹9,720.00
( - 30% OFF )
Description
Key Features
- Light-measuring levels ranging form 0.1Lux~0.1kLux/0.01FC~0.01kFC, repeatedly.
- High accuracy and rapid response.
- Data-hold function for holding measuring values.
- Unit and sign display for easy reading.
- Automatic zeroing.
- Meter corrected for spectral relative efficiency.
- Correction factor need not be manually calculated for non-standard light sources.
- Short rise and fall times.
- Peak-hold function for tracing the peak signal of light pulse with least duration 10µs and hold it.
- Capable of selecting measuring mode in Lux or FC scale alternatively.
- Auto power off 15minutes.
- Maximum and minimum measurements.
- Relative reading.
- Easy to read large backlit display
- USB output for PC connectivity
- Auto ranging
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display | 3-3/4 digit LCD with high speed 40 segment bar graph |
| Measuring Range | 400.0 Lux, 4000 Lux, 40.00K Lux and 400.0KLux 40.00 FC,400.0 FC, 4000 FC,40.00K FC |
| NOTE: 1FC-10.76Lux, 1K Lux =1000Lux, 1K FC =1000FC | |
| Over range Display | LCD will show "OL" symbol. |
| Spectral Response | CIE Photopic (CIE human eye response curve) |
| Spectral Accuracy | CIE Vγ, function f1 ≤ 6% |
| Cosine Response | f2'≤ 2 |
| Accuracy | ±5% rdg±10d.(<10,000Lux) ±10% rdg±10d.(>10,000Lux) |
| Repeatability | ±3% |
| Sampling Rate | 1.3 times/sec of analog bar-graph indication; 1.3times/sec of digital display |
| Photo Detector | One silicon photo diode and spectral response filter. |
| Operating temperature & Humidity | 0°C to 40°C (32°F to 104°F) & 0% to 80% RH. |
| Storage Temperature & Humidity | -10°C to 50°C (14°F to 140°F) & 0% to 70% RH. |
| Power Source | 1 piece 9V battery |
| Photo detector Lead Length | 150cm (approx.) |
| Photo detector Dimensions | 115 (L) × 60 (W) × 20 (H) (mm) |
| Meter Dimensions | 170 (L) × 80 (W) × 40 (H) |
| Weight | 390g |
