Metravi PG-01 Power Guard and Energy Meter
Click To Zoom
Metravi PG-01 Power Guard and Energy Meter
Metravi PG-01 Power Guard and Energy Meter
Multifunction Power Meter, works on 6A, 230V, indicates, voltage, current, power factor, Power, KWh, Calculates CO2 emission, Calculates total time the equipment is under test and calculates the cost of electricity consumed accordingly. During load shedding the instrument memorises the readings, ideal for analysing power consumed for different kinds of loads.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 2,171
(GST inclusive price) i-
Base Value: ₹ 1839.8
-
GST: (18) % ₹ 331.2
-
Total Value ₹ 2171
₹3,105.00
( - 30% OFF )
Description
Key Features
- Multifunction Power Meter
- Works on 6A / 230V AC
- Displays Voltage, Current, Power, Power Factor, Frequency, KWh, CO2, Cost of running the equipment.
- Calculates total time consumed
- Calculates cost of electricity consumed
- Retains the readings while load shedding
- Voltage: 100V AC ~ 260V AC
- Current: upto 6A
- Power: 0.5 – 1380W
- KWh: 0 – 9999KWh
- Frequency: 45 – 65 Hz
- Total Time: 0 – 9999
- Calculates CO2 emission
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| Voltage (V) | 100VAC-260VAC 50Hz 100VAC-150VAC 60Hz |
| Current (A) | OA-6A (UK) |
| Power (W) | 0.5-1380W (UK) |
| Power Factor | 0-1.00 |
| Energy | 0-9999kWh |
| Cost | 0-99999 |
| Total time | 0 Min-9999 Day |
| Frequency Measurement | 45Hz - 65Hz |
| Over-Current warning | >6A (UK) |
| Operation Temperature / Relative Humidity | 0°C-45°C / <95%RH |
| Storage Temperature / Relative Humidity | 10°C-60°C / <95%RH |
| Operating Height | Max.2000m (Above sea level) |
| Power Supply | 3V button cell (CR 2032) x 1 |
| LCE size | 50 x 36 mm |
| Color | Off-White |
| Weight | 155g |

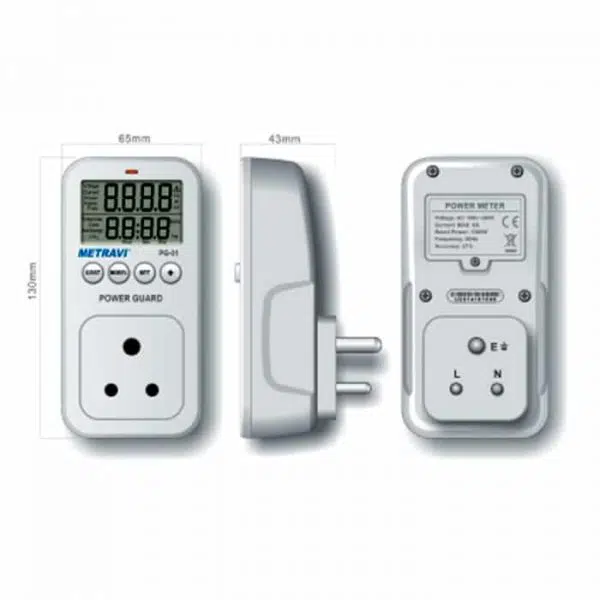

| Dimension | 130mm x 65mm x 37mm |
| Standard Fittings | Cell and Cell Insulating Strip |

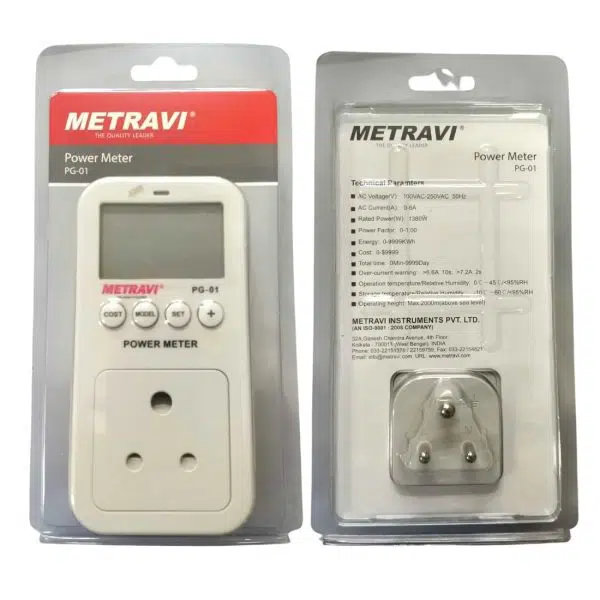

| Standard Packing | Blister Packing, Manual and Warranty Card |
