Metravi GM-197 Static cum Electromagnet Gauss Meter
Click To Zoom

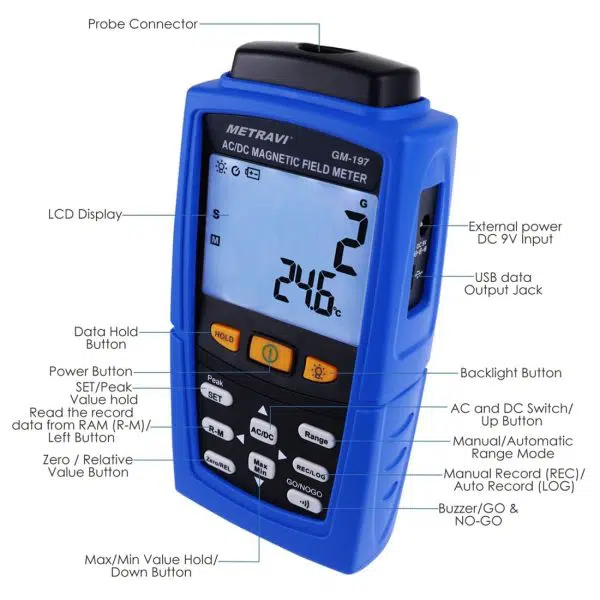

Metravi GM-197 Static cum Electromagnet Gauss Meter
Metravi GM-197 Static cum Electromagnet Gauss Meter
Gauss meter for both static and electromagnets, DC and AC (40-500Hz), determines N/S polarity of Static Magnets, can measure intensity of magnetic fields in both Gauss and Tesla, measures up to 0~3000mT(milli Tesla) / 0~30000G (Gauss), Relative / Peak Hold / Real-time Zero function.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 31,624
(GST inclusive price) i-
Base Value: ₹ 26800
-
GST: (18) % ₹ 4824
-
Total Value ₹ 31624
₹45,225.00
( - 30% OFF )
Description
Key Features
- Can measure DC and AC(40~500Hz) magnetic field
- Can display the N/S polarity of DC magnets
- Measurement for the residual magnetic field after processing of mechanical parts
- Measures the intensity of magnetic field in magnetic application products
- Measurement for the residual magnetic field generated from the stress after processing of stainless material
- Measures the magnetic force of magnetizable material
- Can measure the natural magnetism of various steel products
- Measures the magnetic field of motors and other home appliances
- Measure the Magnetic Field Intensity of Permanent Magnets
- Detection for the magnetic field of leakage generated from superconductive magnets
- Measures the Temperature along with the magnetic intensity, simultaneously
- Range : 0 ~ 3000mT (milli Tesla) / 0~30000G (Gauss)
- Unit Conversion : 1mT=10G(Gauss)
- Can display the N/S polarity of DC magnets
- Relative / Peak Hold / Real time Zero function
- Backlight display
- Auto Range
- DATA HOLD
- MAX/MIN hold
- GO / NO-GO Alarm, value can be set by user for Production testing
- Gauss/Tesla unit selection
- Manual Data Memory : 200 Records
- Auto Datalogging Memory : 6000 records, interval can be set from PC

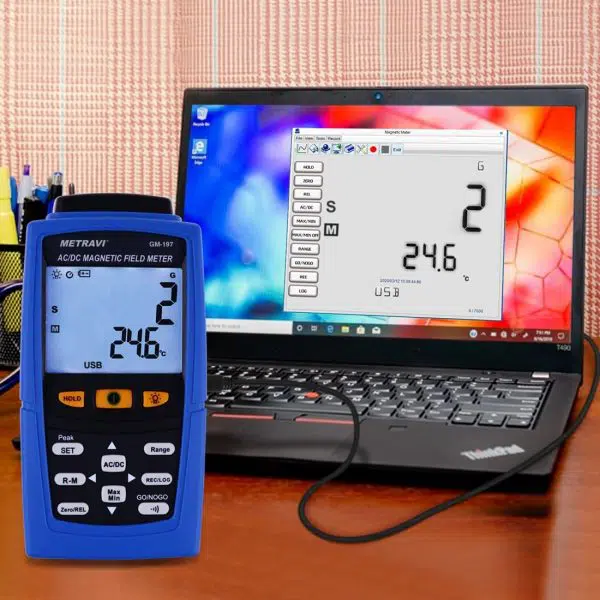

- USB PC interface, with software
- Power : 9V AAA*6
- Operating temperature and humidity : 5°C ~ 40°C
- External AC 100 ~ 240V to DC 9V/0.5A power supply
What's in the box?
|
Rating & Reviews
Rating
| General Specifications | |||
| Function | Range | Resolution | Accuracy |
| DC Milli Tesla | 300.00 mT | 0.01 mT | ±(4% + 10dgt) |
| 2000.0 mT | 0.1 mT | ||
| 2000.1 ~ 3000.0 mT | 0.1 mT | N/A | |
| DC Gauss | 3000.0G | 0.1G | ±(4% + 10dgt) |
| 20000G | 1G | ||
| 20001 ~ 30000 G | 1G | N/A | |
| AC Milli Tesla | 150.00mT | 0.01 mT | ±(5% + 20dgt) |
| 1500.0mT | 0.1 mT | ||
| AC Gauss | 1500.0G | 0.1G | |
| 15000G | 1G | ||
| Temperature | |
| Range | -20~50°C / -4~122°F |
| Resolution | ±0.1°C / ±0.1°F |
| Accuracy | ±1.0°C / ±1.8°F |
