Metravi DT-4672 AC|DC Leakage Current Clamp Meter

Click To Zoom

Metravi DT-4672 AC|DC Leakage Current Clamp Meter

Metravi DT-4672 AC|DC Leakage Current Clamp Meter

(Based On 10 Reviews)

AC/DC Leakage Current Clamp Meter 3-3/4 Digits, LCD, Data Hold, 23mm Jaw Size, AC/DC Voltage, AC/DC Leakage Current measurement, Capacitance, Resistance, Frequency, Duty Cycle, Diode & Continuity Test.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 6,996.00

(GST inclusive price) i
  • Base Value: ₹ 5928.8
  • GST: (18) % ₹ 1067.2
  • Total Value ₹ 6996

₹9,416.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features

  • Data Hold Function
  • Auto Power Off
  • High Precision AC/DC Low Current Measurement
  • Low battery and Overload Indication
  • Provides Analogue Output for Recording function.
  • DC Voltage: 0 – 400m / 4 / 40 / 400 / 600V
  • Accuracy: ±1.0%
  • AC Voltage: 0 – 400m / 4 / 40 / 400 / 600V
  • Accuracy: ±1.0%
  • DC Current: 0 – 4 / 80A
  • Accuracy: ±2.8%
  • AC Current: 0 – 4 / 80A
  • Accuracy: ±3.0%
  • Resistance: 0 – 400 / 4k / 40k / 400k / 4M / 40M.Ohms
  • Accuracy: ±1.0%
  • Capacitance: 0 – 40n / 400n / 4u / 40u / 100uF
  • Accuracy: ±3.0%
  • Frequency: 0 – 5 / 50 / 500 / 5k / 50k / 500k / 5M / 10MHz
  • Accuracy: ±1.2%
  • Duty Cycle: 0.5 to 99.0%
  • Accuracy: ±1.2%
  • Confirms to CE, CAT-III 600

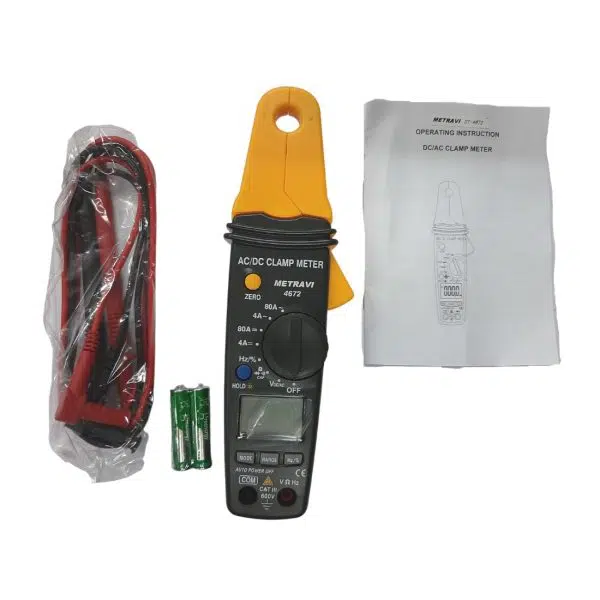

What's in the box?

  • Metravi DT-4672 AC|DC Leakage Current Clamp Meter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General Specification
Input Limits
FunctionMaximum Input
A AC, A DC80A
V DC, V AC600V DC/AC
Resistance, Diode Continuity, Frequency, Duty Cycle, Capacitance Test250V DC/AC



TECHNICAL SPECIFICATIONS
FunctionRange & ResolutionAccuracy (% of reading)
DC Current4.000 A DC , 80.0 A DC

± (2.8% + 10 digits, ± (3% + 8 digits



AC Current (50/60Hz4.000 AAC, 80.0A AC± (3.0% +10digits), ± (3.0% + 8 digits
DC Voltage

400.0 mV DC

4.000 V DC

40.00 V DC

400.0 V DC

600 V DC

± (1.0% + 15 digits)

± (1.0% + 3 digits)

± (1.5% + 3 digits)



± (2.0% + 3 digits)

AC Voltage (50/60Hz)

400.0 mV AC

4.000 V AC

40.00 V AC

400.0 V AC

600 V AC

± (1.0% + 30 digits



± (2.0% + 5 digits)



± (2.0% + 5 digits)

Resistance

400.0 Ω

4.000ΚΩ

40.00ΚΩ
400.0ΚΩ

4.000ΜΩ

40.00ΜΩ



± (1.0% + 4 digits)



± (1.5% + 2 digits)



± (2.5% + 3 digits

± (3.5% + 5 digits



Capacitance

40.00nF

400.0nF

4.000μF

40.00µF

100.0µF

± (5.0% reading + 30digits)

±(3.0% reading + 5 digits)

±(3.5% reading + 5 digits)



± (5.0% reading + 5 digits)

Frequency

5.000Hz

50.00Hz

500.0Hz

5.000kHz

50.00kHz

500.0kHz

5.000MHz

10.00MHz

±(1.5% reading + 5 digits)

±(1.2% reading + 2 digits)

Sensitivity: 10Vrms min. @ 20% to 80% duty cycle











Duty Cycle0.5 to 99.0%±(1.2% reading + 2 digits)
