Metravi MULTI-140 AC Leakage Current Clamp Meter
Click To Zoom
Metravi MULTI-140 AC Leakage Current Clamp Meter
Metravi MULTI-140 AC Leakage Current Clamp Meter
AC Leakage Current Clamp Meter 3-1/2 Digits, 3200 Counts LCD, Data Hold, 40mm jaw Dia, 0 – 30m/300m/30/300A AC.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 33,040
(GST inclusive price) i-
Base Value: ₹ 28000
-
GST: (18) % ₹ 5040
-
Total Value ₹ 33040
₹47,250.00
( - 30% OFF )
Description
Key Features
- High Accuracy Leakage Current tester
- Confirms to IEC 61010-1 (2001), IEC 61010-2-032 (2002), Installation Category II 600V Phase to Earth, Category III 300V Phase to Earth.
- Display: 3-1/2 Digits LCD Display 3200 Counts
- Range: 0 – 30m/300m/30A/300A (50/60Hz)
- Accuracy: ±1.2%
- Jaw Size: 40mm
- Over Range Indication
- Low battery indication
- Data Hold Function

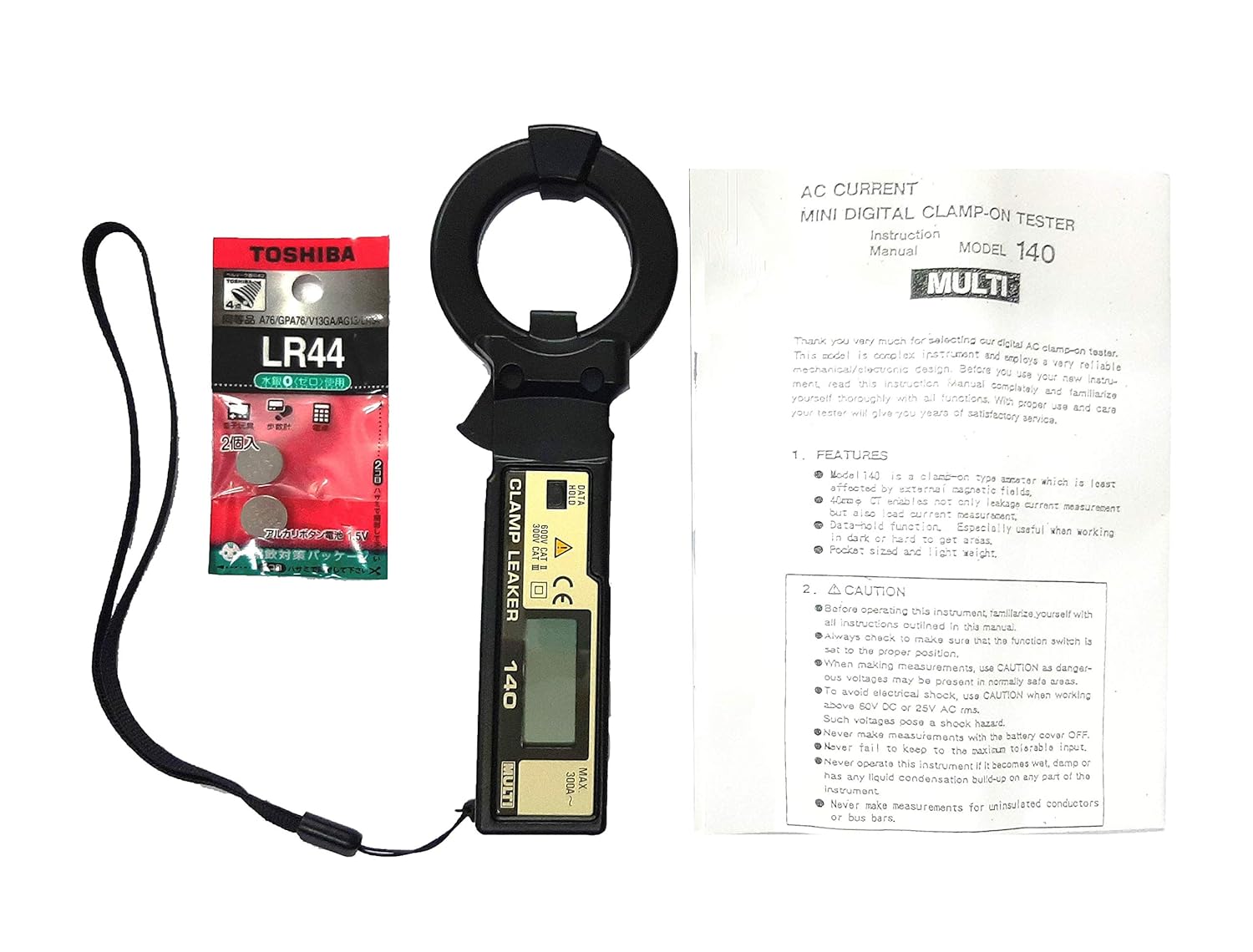

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Safety standard | Meets the requirements for double insulation to IEC 61010-1 (2001), IEC 61010-2-032 (2002) installation Category : 600V phase to earth, |
| E.M.C. standard | The instrument meets EN 61326 (2004) |
| Measuring method | Dual integration mode |
| Measuring function | Leakage current and load current |
| Display | 3.5 digital LCD, max. reading of 3200 |
| Range | 0~30mA/300mA/30A/300A (50/60Hz) |
| Ranging | 2 ranges manuals |
| Accuracy | 23ºC ±5ºC, 80% RH max |
| Jaw opening capability | 40mmø |
| Over range indication | “OL” mark on LCD readout |
| Maximum indication | 3200 counts |
| Sampling | Approx. 2 times/s.(Digital display) Approx. 12 times/s. (Bargraph display) |
| Data hold indication | DH” mark on LCD readout |
| Auto power off | The meter is set to power off mode approx. 10 minutes after the power switch on. |
| Withstanding voltage | AC3700V 1 minute max. (Between the core of CT and outer case) |
| Operating temperature | 0ºC to 40ºC, <80% RH (Non-condensing) |
| Storage temperature | -10ºC to 60ºC, <70% RH (Non-condensing) |
| Power supply | LR-44 or SR-44×2 |
| Power consumption | Approx. 5mW |
| Battery life | Approx. 50 hours (LR44) |
| Size | 64(W)×162(H)×23(D)mm |
| Weight | Approx. 125g |
| Range | Resolution | Accuracy |
| 30/300mA | 0.01mA | ±1.2% rdg ±5 dgt |
| 30/300A | 0.01A | 0~200A : ±1.2% rdg ±5 dgt 200~250A : ±3.0% rdg ±5 dgt 250~300A : ±5.0% rdg ±5 dgt |
