Metravi Pro EV-C1 Digital TRMS AC/DC Clamp Meter
Click To Zoom
Metravi Pro EV-C1 Digital TRMS AC/DC Clamp Meter
Metravi Pro EV-C1 Digital TRMS AC/DC Clamp Meter

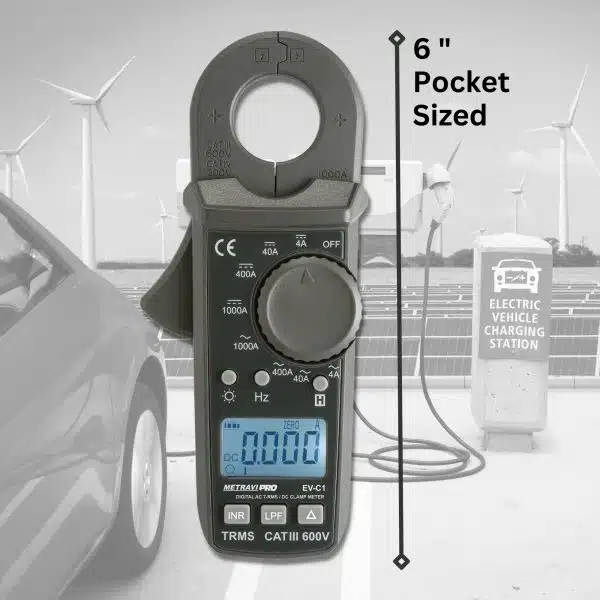

The Metravi Pro EV-C1 is a pocket-sized, compact Clamp Meter, specially designed for EVs (Electric Vehicles).
With a super-wide range for measuring DC Amperes (4.000A to 1000A), it is capable of the best accuracy (±1.5%±3dgts) for all ranges. It is a high-precision and solid AC/DC mini pocket-size clamp meter with True-RMS measurement capability.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 15,799.00
(GST inclusive price) i₹21,263.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Conductor Size | 0.98” 125mm max. (approx.) |
| Battery Type | Two 1.5V LR03 AAA size |
| Display | 3 3/4 LCD with 20 segments Bargraph |
| Range Selection | Manual |
| Overload Indication | OL |
| Power Consumption | 22mA with backlight off (approx.) |
| Sampling Time | 3 times/sec. (digits), 30 times/sec. (bargraph) |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | less than 85% RH |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | less than 75% RH |
| Operating Altitude | Upto 2000M |
| Dimension | 152mm (L) x 66mm (W) x 36mm (H) 6.0” (L) x 2.6’’ (W) x 1.4” (H) |
| Weight | 190g (battery included) |
| Technical Specification | |||||
| Function | Range | Resolution | Accuracy | Overload Protection | |
| DC Current | 4A | 1mA | ±1.5%±3dgts | DC 1000A | |
| 40A | 10mA | ||||
| 400A | 100mA | ||||
| 0-900A (1000A) | 1A | ||||
| 900-1000A (1000A) | 1A | ±2.0%±3dgts | |||
| AC Current | 4A | 1mA | ±1.5%±3dgts (50/60Hz) |
±2.0%±4dgts (40 - 400Hz) | DC 1000A |
| 40A | 10mA | ||||
| 400A | 100mA | ||||
| 0-900A (1000A) | 1A | ||||
| 900-1000A (1000A) | 1A | ±2.0%±3dgts ((50/60Hz) | ±2.5%±4dgts (40 - 400Hz) | ||
| Function | Range | Range (Hz) | Resolution (Hz) | Sensitive (A) | Accuracy |
| Frequency | 4A | 1 - 10 | 0.1 | 0.2 | ±0.5%±2dgts |
| 4A | 10 - 4K | 0.1/1 | 0.08 | ||
| 4A | 4K - 40K | 1/10 | 0.20 | ||
| 40A | 1 - 10 | 0.1 | 1.5 | ||
| 40A | 10 - 4K | 0.1/1 | 0.8 | ||
| 400A | 2 - 4K | 0.1/1 | 4 | ||
| 1000A | 1 - 4K | 0.1/1 | 40 |
| Function | Range | Trigger Current (threshold) |
| In-Rush Current (AC, start from 0A, Integration Time 100mS) | 4A | 0.2A |
| 40A | 2A | |
| 400A | 20A | |
| 1000A | 200A |
| Function | Range | Resolution | Accuracy |
| AC Low Pass Filter (LPF, Cut-off frequency (-3db) 1 KHz (approx.)) | 4A | 0.001 | 3%±5dgts |
| 40A | 0.01 | ||
| 400A | 0.1 | ||
| 0-900A (1000A) | 1 | ||
| 900-1000A (1000A) | 1 | 4%±5dgts |
