Metravi DT-8250 Digital AC|DC Clamp Meter
Click To Zoom
Metravi DT-8250 Digital AC|DC Clamp Meter
Metravi DT-8250 Digital AC|DC Clamp Meter
DT-8250 is a Digital AC/DC clamp meters with big jaw dia which can be used anywhere that high current and voltage measurements are needed. The unique feature of the DT-8250 is that it can measure Frequency through the Clamp Jaw, so it can measure frequency at high current as well.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 8,049.00
(GST inclusive price) i₹10,874.00
( - 26% OFF )
Description

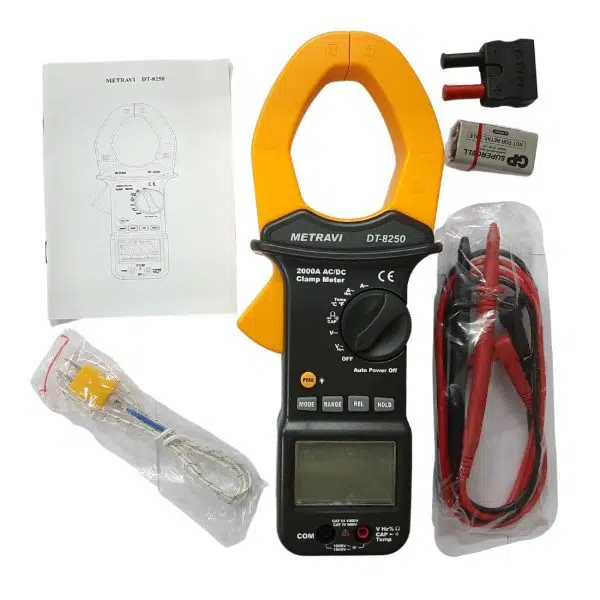

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Clamp Jaw Opening | 2” (52mm) approx |
| Display | 3-3/4 digits (4000 counts) Backlit LCD |
| Continuity Check | Buzzer sound at less than (60±30)W |
| Diode Test | Test current of 0.5mA typical; Open circuit voltage <2VDC typical |
| Low Battery Indication | Low Battery symbol is displayed |
| Over-Range Indication | ‘OL’ display |
| Measurement Rate | 2 readings per second, nominal |
| PEAK | Captures peaks > 1ms |
| Temperature Sensor | Type K thermocouple |
| Input Impedance | 10MW (VDC and VAC) |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Storage Temperature | -4°F to 104°F (-20°C to 60°C) |
| Operating Humidity | Max 80% up to 87°F (31°C) decreasing linearly to 50% at 104°F (40°C) |
| Storage Humidity | <80% |
| Operating Altitude | 7000ft. (2000meters) maximum |
| Battery | One (1) 9V Battery |
| Auto Range | Auto/Manual |
| Auto Power OFF | After approx. 15 minutes |
| Dimensions & Weigh | 27cm (H) x 10cm (W) x 4cm (D), 600 Grams Approx. |
| Safety | For indoor use and in accordance with the requirements for double insulation to IEC 1010-1 (2001) : EN61010-1 (2001) Over Voltage Category III 1000V and Category IV 600V, Pollution Degree |
| Technical Specification | ||
| DC Voltage | ||
| Range | Accuracy (% of reading + digits) | Resolution |
| 400mV | ± (1% + 10 digit) | 0.1mV |
| 4V | ± (1% + 3 digt) | 1mV |
| 40V | 10mV | |
| 400V | 100mV | |
| 1000V | 1V | |
| AC Voltage | ||
| Range | Accuracy (% of reading + digits) | Resolution |
| 400mV | ± (1% + 10 digit) | 0.1mV |
| 4V | ± (1% + 3 digt) | 1mV |
| 40V | 10mV | |
| 400V | 100mV | |
| 1000V | 1V | |
| DC Current | ||
| Range | Accuracy (% of reading + digits) | Resolution |
| 400A | ± (3.0% + 1A) | 100mA |
| 2000A | ± (3.5% + 5 digt) | 1A |
| AC Current | ||
| Range | Accuracy (% of reading + digits) | Resolution |
| 400A | ± (3.0% + 1A) | 100mA |
| 2000A | ± (3.5% + 5 digt) | 1A |
| Resistance | ||
| Range | Accuracy (% of reading + digits) | Resolution |
| 400Ω | ± (1.0% + 4 digit) | 0.1Ω |
| 4kΩ | ± (1.5% + 4 digit) | 1Ω |
| 40kΩ | 10Ω | |
| 400kΩ | 100Ω | |
| 4MΩ | 1kΩ | |
| 40MΩ | ± (2.0% + 4 digit) | 10kΩ |
| Frequency (Auto-Ranging) | |
| Range | Accuracy (% of reading + digits) |
| 10Hz to 100kHz | ± 1.0% ±5 digt |
| Duty Cycle | ||
| Range | Accuracy (% of reading + digits) | Resolution |
| (0.1% to 99.9%) | ± (1.2% + 5 digit) | 0.1% |
| Temperature | ||
| Range | Accuracy (% of reading + digits) | Resolution |
| (-20 to 1000°C) | ± (2.0% + 5°C) | 0.1°C |
| (-4 to 1832°F) | ± (3.0% + 9°C) | 0.1°F |
| Continuity | |
| Testing Condition | Reading |
| Open voltage is approx. 0.5V | Buzzer makes a long sound, While resistance is less than (60±30W) |
| Peak of AC Current | ||
| Range | Accuracy (% of reading + digits) | Resolution |
| 400A | ± (4.0% + 5 digit) | 100mA |
| 2000A | ± (4.0% + 5 digit) | 1A |
| Capacitance | ||
| Range | Accuracy (% of reading + digits) | Resolution |
| 4nF | ± (5.0% + 30 digt) | 0.1nF |
| 40nF | ± (5.0% + 20 digt) | 1nF |
| 400nF | ± (3.5% + 10 digt) | 10nF |
| 4mF | ± (5.0% + 10 digt) | 100nF |
| 40mF | 1mF | |
| 400mF | 10mF | |
| Diode | |
| Testing Condition | Reading |
| Forward DCA is approx. 0.5mA, backward Voltage is approx. 2V | Forward voltage drop of Diode |
