Metravi DT-5250 Digital TRMS AC|DC Clamp Meter
Click To Zoom
Metravi DT-5250 Digital TRMS AC|DC Clamp Meter
Metravi DT-5250 Digital TRMS AC|DC Clamp Meter
3-3/4 Digits, LCD, Data Hold, 30mm Jaw Size, T-RMS, AC/DC Voltage, AC/DC Current up to 1000A, Resistance, Capacitance, Temperature, Frequency, Diode & Continuity Test.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 7,765.00
(GST inclusive price) i₹10,449.00
( - 26% OFF )
Description

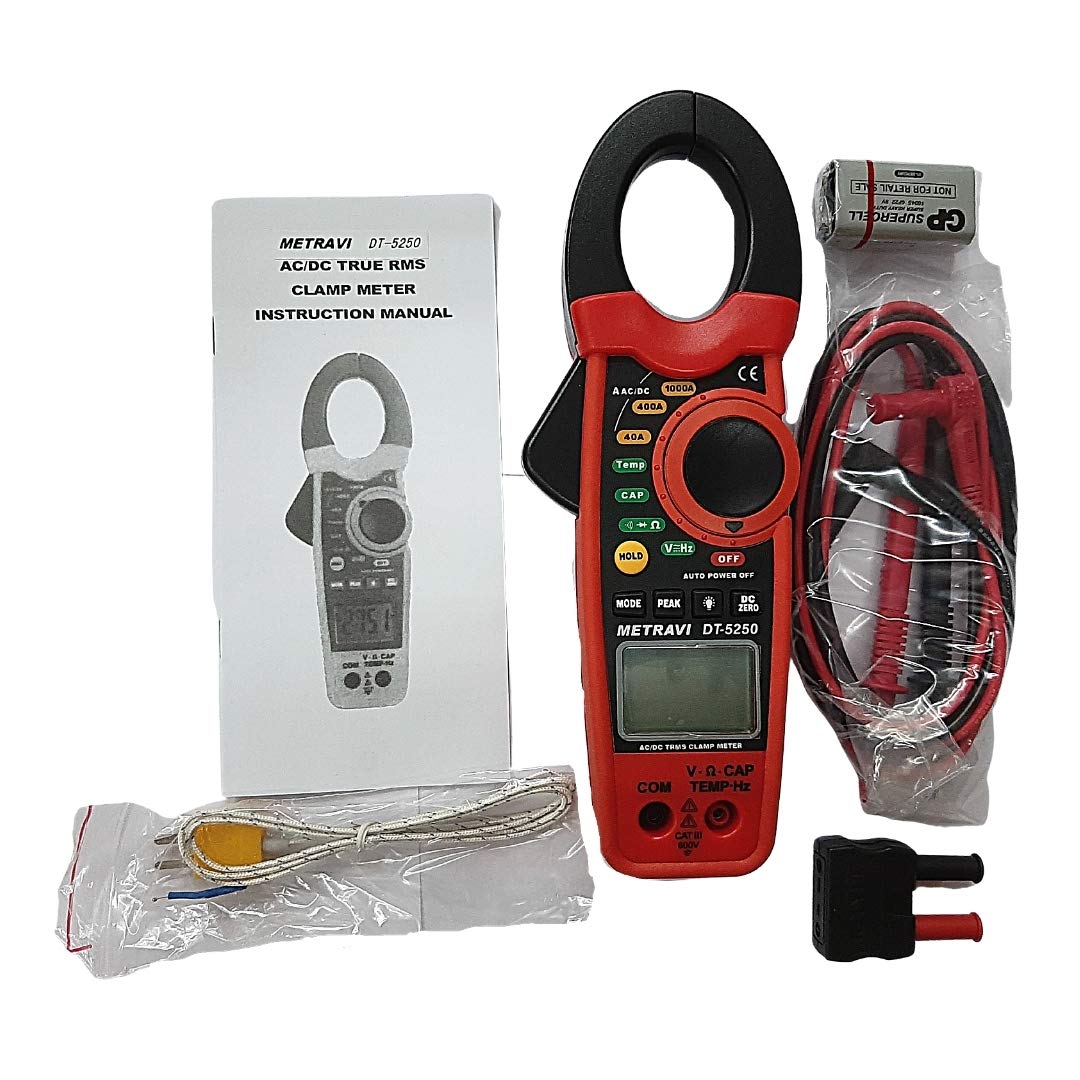

What's in the box?
|
Rating & Reviews
Rating
| Function | Range | Measuring Range | Resolution | Accuracy (% of Reading) |
| DC Current | 40A | 0-40.00A | 0.01A | ± (2.8% + 10 digits) |
| 400A | 0-400.0A | 0.1A | ± (2.8% +8 digits) | |
| 1000A | 0-1000A | 1A | ± (3.0% + 8 digits) | |
| AC Current (T-RMS) | 40A | 0-40.00A | 0.01A | ± (2.8% +10 digits) |
| 400A | 0-400.0A | 0.1A | ± (2.8% + 8 digits) | |
| 1000A | 0-1000A | 1A | ±(3.0% + 8 digits) | |
| DC Voltage | 400mV | 0~400.0 mV | 0.1mV | ± (0.8% + 2 digits) |
| 4V | 0~4.000V | 0.001V | ± (1.5% + 2 digits) | |
| 40V | 0-40.00V | 0.01V | ||
| 400V | 0~400.0V | 0.1V | ||
| 600V | 0~600V | 1V | ± (2.0% + 2 digits) | |
| AC Voltage (T-RMS) | 400mV | 0-400.0 mV | 0.1mV | ± (1.0% + 10 digits) |
| 4V | 0-4.000V | 0.001V | ± (1.5% + 8 digits) | |
| 40V | 0~40.00V | 0.01V | ||
| 400V | 0-400.0V | 0.1V | ||
| 600V | 0~600V | 1V | ± (2.0% + 8 digits) | |
| Resistance | 400Ω | 0~400.0Ω | 0.1Ω | ± (1.0% + 4 digits) |
| 4ΚΩ | 0-4.000KΩ | 1Ω | ± (1.5% + 2 digits) | |
| 40ΚΩ | 0~40.00KΩ | 10Ω | ||
| 400ΚΩ | 0-400.0KΩ | 100Ω | ||
| 4ΜΩ | 0-4.00MΩ | 1kΩ | ± (2.5% + 5 digits) | |
| 40MΩ | 0-40.00MΩ | 10kΩ | ± (3.5% + 10 digits) | |
| Capacitance | 4nF | 0~4.000nF | 0.001nF | ± (5.0% + 30 digits) |
| 40nF | 0~40.00nF | 0.01nF | ± (5.0% + 20 digits) | |
| 400nF | 0~400.0nF | 0.1nF | ± (3.0% + 5 digits) | |
| 4µF | 0~4.000μF | 0.001μF | ||
| 40µF | 0~40.00μF | 0.01μF | ||
| 400µF | 0~400.0μF | 0.1μF | ± (4.0% + 10 digits) | |
| 4mF | 0~4.000μF | 0.001μF | ± (4.5% + 10 digits) | |
| 40mF | 0~40.0mF | 0.01μF | ± (5.0% + 10 digits) | |
| Frequency | 4kHz | 0 - 4kHz | 0.001kHz | ± (1.5% +2 digits) Sensitivity: 5Vrms min |
| Temperature | °C | - 40 °C - 1000 °C | 1°C | ± (2.5% + 3 °C) |
| °F | - 40 °F- 1832 °F | 1 °F | ± (2.5% + 5 ^ 3 °F) |
