Metravi DT-1350AT Digital TRMS AC|DC Clamp Meter
Click To Zoom

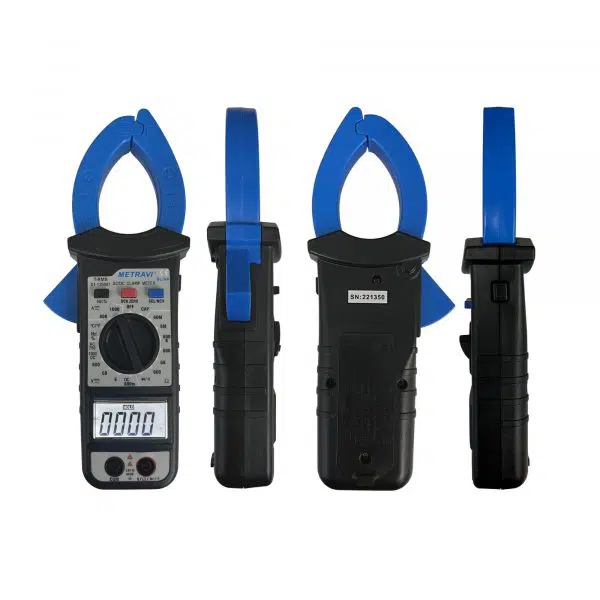

Metravi DT-1350AT Digital TRMS AC|DC Clamp Meter
Metravi DT-1350AT Digital TRMS AC|DC Clamp Meter
The Metravi DT-1350AT clamp meter is a 5 5/6 Digital Clamp Meter with backlit LCD and powered by two AAA Batteries. The Unit adopts full-function overload protection circuit and can be used for the measurement of DC/AC Voltage, AC Current, DC Current, Resistance, Capacitance, Frequency and Temperature.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,445
(GST inclusive price) i-
Base Value: ₹ 2919.5
-
GST: (18) % ₹ 525.5
-
Total Value ₹ 3445
₹4,928.00
( - 30% OFF )
Description
Key Features
- 3-5/6 Digits 6000 Counts Backlit LCD Display
- Confirms to IEC61010-1, IEC61010-2-032, CAT III 600V
- Over Range and Low Battery Indication
- Data Hold to freeze the displayed readings
- Non-contact Voltage Detector function (NCV)
- Clamp Jaw 40mm
- 500V AC/DC Protection in all ranges
- AC Current T-RMS: 0 – 600 / 1000A
- Accuracy: ±3.0%+8
- DC Current: 0 – 600 / 1000A
- Accuracy: ±3.0%+8
- AC Voltage T-RMS: 0-6 / 60 / 60o / 750V AC
- Accuracy: ±1.0%+3
- DC Voltage: 600mV / 6 / 60 / 600 / 1000V DC
- Accuracy: ±0.8%+3
- Resistance: 0–600Ω / 6K / 60K / 600K / 6M / 60MΩ
- Accuracy: ±0.8%+3
- Frequency: 0 – 9.999MHz
- Accuracy: ±(0.3%+4 )3VRMS
- Capacitance: 0 – 999.9uF
- Accuracy: ±3%+10
- Temperature: -20° to 750°C
- Diode and Audible Continuity Test
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display | 6000 Counts 3-5/6 Digits Backlit LCD |
| Battery | 2 x 1.5V AAA Batteries |
| Working Environment | 0°~40°C, 45%-70% RH (Non-condensing when temperature is less than 10°C ) |
| Storage Environment | -10°~50°C, RH is less than 80% |
| Dimension | 250 (L) x 97 (W) x 48 (H) mm |
| Weight | Approximately 345g |
| Maximum width of jaws when clamp opens | 40mm |
| Technical Specification | |||
| Function | Range | Accuracy | Resolution |
| AC Current Measurement | 600A | ±3.0%+8 | 0.1A |
| 1000A | 1A | ||
| DC Current Measurement | 600A | ±3.0%+8 | 0.1A |
| 1000A | 1A | ||
| AC Voltage Measurement | 6V | ±1.0%+3 | 0.001V |
| 60V | 0.01V | ||
| 600V | 0.1V | ||
| 750V | 1V | ||
| DC Voltage Measurement | 600mV | ±0.8%+3 | 0.1mV |
| 6V | 0.001V | ||
| 60V | 0.01V | ||
| 600V | 0.1V | ||
| 1000V | 1V | ||
| Resistance Measurement | 600 | ±1.0%+3 | 0.1Ω |
| 6K | ±0.8%+3 | 1Ω | |
| 60K | 0.01kΩ | ||
| 600K | 0.1kΩ | ||
| 6M | ±1.0%+3 | 1kΩ | |
| 60M | ±3 .0%+5 | 10kΩ | |
| Frequency Measurement | 9.999Hz | (±0.3%+4) 3VRMS | 0.001Hz |
| 99.99Hz | 0.01Hz | ||
| 999.9Hz | 0.1Hz | ||
| 9.999KHz | 1Hz | ||
| 99.99KHz | 10Hz | ||
| 99.99KHz | 100Hz | ||
| 9.999MHz | 1kHz | ||
| Duty (10%~90%) | ±0.5%+4 | 0.1% | |
| Capacitance Measurement | 9.999nF | ±4%,+40 | 1pF |
| 99.99nF | ±4%,+10 | 10pF | |
| 999.9nF | ±3%+10 | 100pF | |
| 9.999uF | 1nF | ||
| 99.99uF | 10nF | ||
| 999.9uF | 100nF | ||
| Temperature Measurement | -20°~750°C | -20°~400°C, (1%+10) -401°~750°C, (3%+10) | 1°C |
| -4°~1400°F | -4°~650°F, (1%+10) 651°~1400°F, (3%+10) | 1°F | |
