Metravi DT-2255 Digital AC Clamp Meter
Click To Zoom

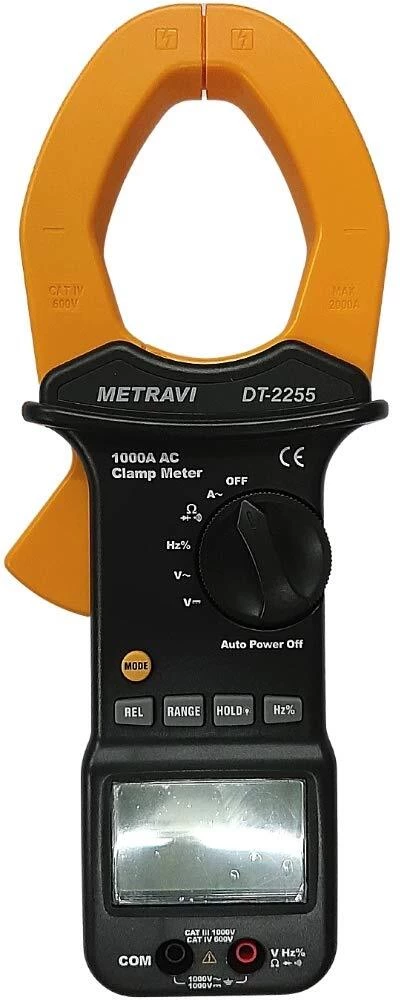

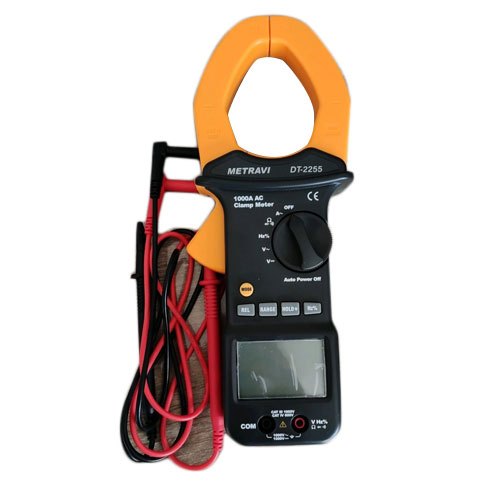

Metravi DT-2255 Digital AC Clamp Meter
Metravi DT-2255 Digital AC Clamp Meter
3-3/4 Digits 4000 Counts, LCD, Fully Protected, Data Hold, Auto-ranging, 55mm Jaw Size, AC/DC Voltage up to 1000V, AC Current up to 1000A, Resistance, Frequency, Duty Cycle, Diode & Continuity Test.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,700
(GST inclusive price) i-
Base Value: ₹ 3135.6
-
GST: (18) % ₹ 564.4
-
Total Value ₹ 3700
₹4,995.00
( - 26% OFF )
Description
Key Features
- Auto Power Off
- Data Hold and Relative Measurement
- Auto-ranging
- Clamp Jaw Size : 57mm
- Display : 3-3/4 Digits 3999 Counts Backlit LCD
- DC Voltage : 0 – 4/40/400/1000V.
- Accuracy : ±0.5%+4 digits
- AC Voltage : 0 – 400m / 4/40/400/1000V.
- Accuracy : ±1.0%+4 digits
- AC Current : 0 – 400 / 1000A.
- Accuracy : ±2.5%+5 digits
- Resistance : 0 – 400/4k/40k/400k/4M/40M.Ohms
- Accuracy : ±1.0%+2 digits
- Frequency : 0 – 5/50/500/5k / 50k / 500k / 5M / 10MHz
- Accuracy : ±1.2% +2 digits
- Duty Cycle: 0.5 to 99.0%
- Accuracy: ±1.2% +2 digits
- Diode test and Continuity Test
- Confirms to CAT III 1000, CAT IV 600V IEC 1010-1 and UL 3111-I Standards
- Overload Protection of 1000V DC/AC RMS in Resistance, Frequency, Diode and Continuity Test Ranges.

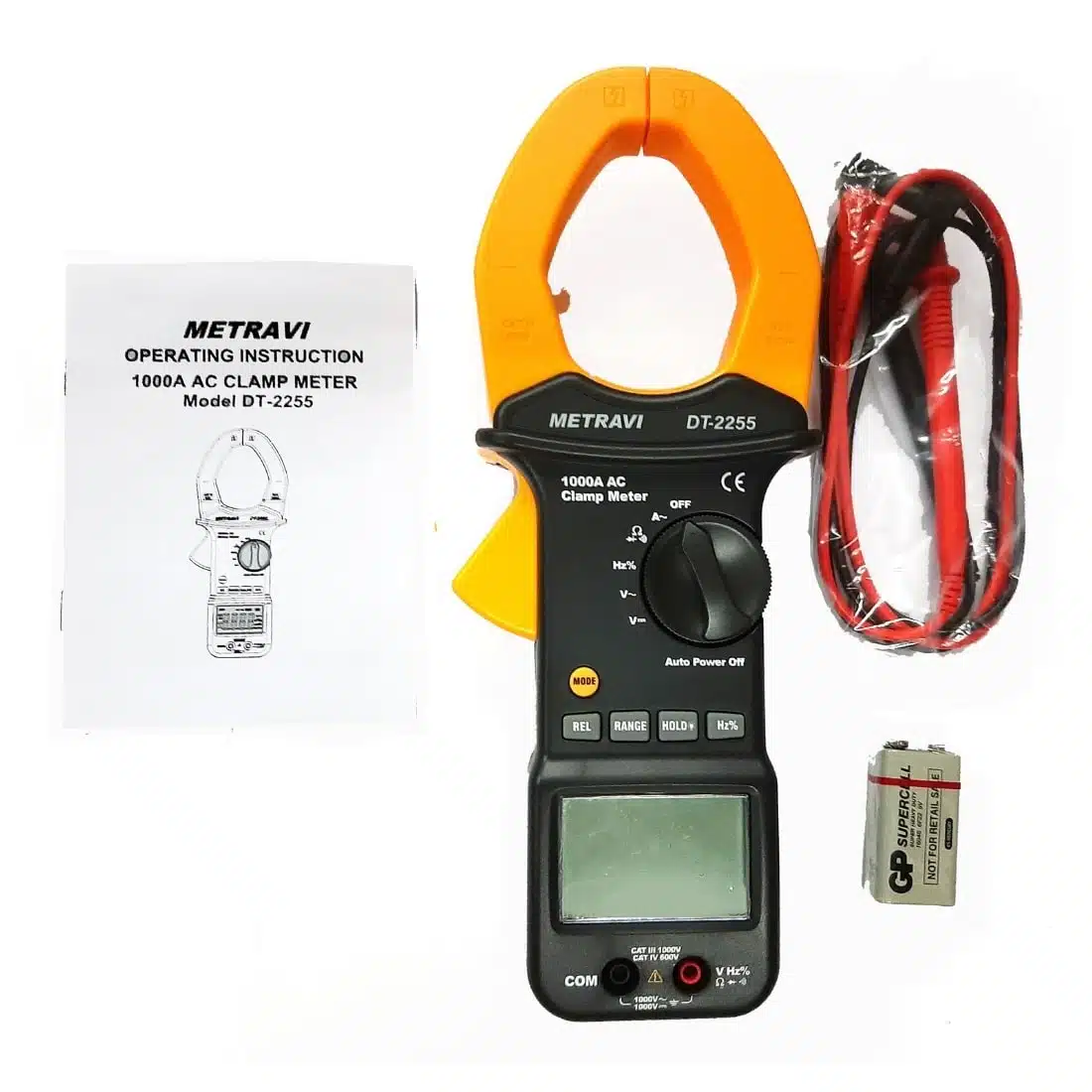

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display | 3/4 Digits (4000 counts) LCD. |
| Jaw opening | 57mm |
| Data Hold | To freeze displayed data measurement |
| Continuity check | Buzzer sound at less than about 502 |
| Safety standard | CAT III 600V |
| Power requirement | Single standard 9V battery. (IEC6LF22,NEDA1604 or JIS006P). |
| Operating environment | 0~40°C, 70%RHmax. |
| Storage environment | 20~60°C, 80%RHmax. |
| Dimensions | 280mm 100mm 50mm |
| Weight | Approx: 560g. |
| Technical Specification | ||||
| Function | Range | Max Resolution | Accuracy | Overload |
| AC Current | 400A 1000A | 0.1A | ± (2% + 5d) ± (2.5% + 5d) | 2100A rms |
| AC Voltage | 4/40/400/750V | 1mV | ± (1.5% + 5d) * 50 - 60Hz ± (2.5% + 5d) 40-400Hz | 800V rms |
| DCV | 4/40/400/100V | 1mV | ± (1% + 3d) | 1200VDC |
| Resistance | 400/4K/40K/400ΚΩ | 0.1 | ± (1% + 3d) | 250V rms |
| 4Ω | ± (1% + 3phi) | |||
| 4042 | ± (1.5% + 3d) | |||
| Frequency | 10/100/1K/10K 1K/10K/100K/ 1MHZ | 0.01Hz | ± (1% + 3d) | 250V ms |
