Metravi DT- 2250 Digital AC Clamp Meter

Click To Zoom

Metravi DT- 2250 Digital AC Clamp Meter

Metravi DT- 2250 Digital AC Clamp Meter

(Based On 10 Reviews)

3-3/4 Digits, Backlit LCD, Data Hold, 30mm Jaw Size, AC/DC Voltage, AC Current up to 1000A, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Diode and Continuity Test Facility. 500V DC/AC Protection in all ranges.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 3,700.00

(GST inclusive price) i
  • Base Value: ₹ 3135.6
  • GST: (18) % ₹ 564.4
  • Total Value ₹ 3700

₹4,934.00

( - 25% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features

  • Auto Power Off
  • Data Hold Facility
  • Double molded body with rubber coating
  • Clamp Jaw Size: 30mm
  • Display : 3-3/4 Digital 3999 Counts Backlit LCD
  • DC Voltage : 0 – 400m/4/40/400/600V
  • Accuracy : ±0.8%
  • AC Voltage : 0 – 400m/4/40/400/600V
  • Accuracy : ±0.8%
  • AC Current : 0 – 40/400/1000A
  • Accuracy : ±2.5%
  • Resistance : 0 – 400/4k/40k/400k/4M/40M.Ohms
  • Accuracy : ±1.0%
  • Temperature : -50°C to 1000°C / -58°F to 1832°F
  • Accuracy : ±3.0%
  • Frequency : 0 – 5/50/500/5K/50K/500K/5M/10MHz
  • Accuracy : ±1.2%
  • Capacitance : 0 – 40n/400n/4u/40u/100uF
  • Accuracy : ±3.0%
  • Duty Cycle : 0.5 – 99.0%
  • Accuracy : ±1.2%
  • Diode Test and Continuity Test
  • Confirms to CE, IEC 61010, CAT-III 600V
  • Overload Protection of 500V DC/AC RMS in Resistance, Temperature, Frequency, Duty Cycle, Capacitance, Diode and audible continuity test range
  • Optional Accessories:  Infra-red non contact temperature adaptor to measure temperature from -30°C to 550°C with fixed emissivity of 0.95 and distance to sighting ratio of 8:1. Model TS-03

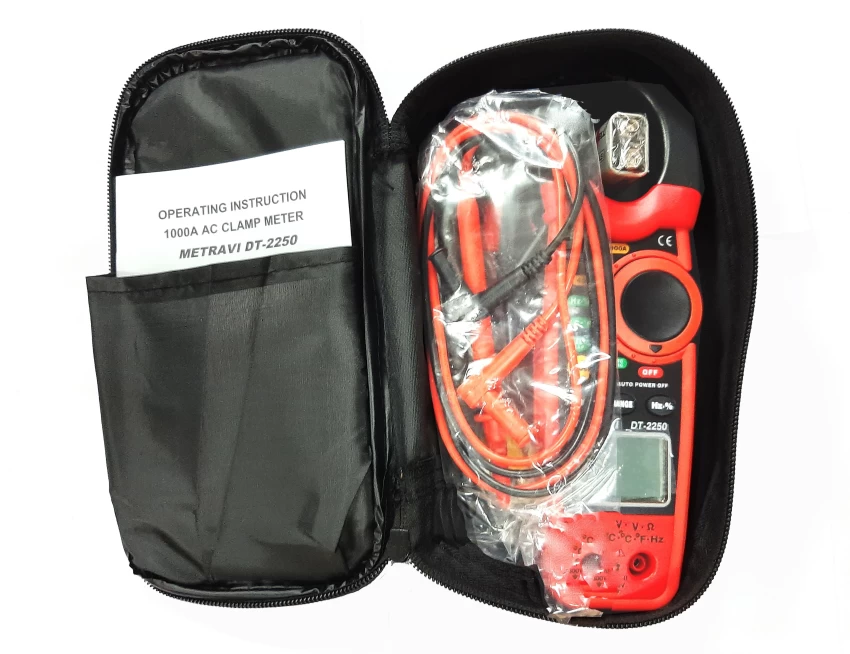

What's in the box?

  • Metravi DT- 2250 Digital AC Clamp Meter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

General Specification
Input Limits
FunctionMaximum Input
A AC1000A
V DC, V AC600V DC/AC
Resistance, Diode, Continuity Frequency, Duty Cycle Test250V DC/AC
Temperature (°C/°F)60V DC/24V AC



Clamp sizeOpening 1.2" (30mm) approx.
Diode TestTest current of 0.3mA typical; Open circuit voltage 1.5V DC
Continuity CheckThreshold <100Ω; Test current 1mA
Overrange Indication"OL" is displayed
Measurements Rate2 per second, nominal
Input Impedance7.8 ΜΩ (VDC and VAC)
Display4000 counts Backlit LCD, 3-3/4 digits
AC Current bandwidth50/60Hz (AAC)
AC Voltage bandwidth50/60Hz (VAC)
Operating Temperature14 to 122°F (-10 to 50°C)
Storage Temperature-14 to 140°F (-30 to 60°C)
Relative Humidity

90% (0°C to 30°C);

75% (30°C to 40°C);

45% (40°C to 50°C)

AltitudeOperating: 3000m; Storage 10,000m
Over voltageCategory III 600V
BatteryOne "9V" Battery
Auto Power OFFApprox. 30 minutes
Dimensions/Weight229 x 80 x 49 mm/ 303g
Data HoldTo freeze the displayed data
SafetyFor indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltage less than overvoltage Cat III



Technical Specification
FunctionRange & ResolutionAccuracy (% of reading ± no. of dgts)
AC Current40.00 AAC± (2.5% + 10 digits)
400.0 AAC± (2.5% + 5 digits)
1000 AAC± (3.0% + 4 digits)
DC Voltage400.0 mVDC± (0.8% + 3 digits)
4.000 VDC± (1.5% + 3 digits)
40.00 VDC
400.0 VDC
600 VDC± (2.0% + 3 digits)
AC Voltage400.0 mVAC± (0.8% + 20 digits)
4.000 VAC± (1.8% + 5 digits)
40.00 VAC
400.0 VAC
600 VAC± (2.5% + 5 digits)
Resistance400.0 Ω± (1.0% + 4 digits)
4.000 ΚΩ± (1.5% + 2 digits)
40.00 ΚΩ
400.0ΚΩ
4.000 ΜΩ± (2.5% + 3 digits)
40.00 ΜΩ± (3.5% + 5 digits)
Capacitance40.00nF± (5.0% + 100 digits)
400.0nF± (3.0% + 5 digits)
4.000μF± (3.5% + 5 digits)
40.0μF
100.µF± (5.0% + 5 digits)
Frequency5.000Hz± (1.5% + 5 digits)
50.00Hz± (1.2% + 5 digits)
Sensitivity: 10Vrms min.
500.0Hz
5.000kHz
50.00kHz
500.0kHz
5MHz± (1.5% + 10 digits)
10.00MHz
Duty Cycle0.5 to 99.0%
Pulse width: 100μs - 100ms
± (1.2% + 2 digits)

Temp (type-K)

( Probe accuracy not included)

-20.0 to 400°C± (3.0% + 5°C)
400 to 1000°C
-4.0 to 400.0°F± (3.0% + 7°F)
400 to 1832°F
Note: No Autoranging & 400mV AC Voltage Range
