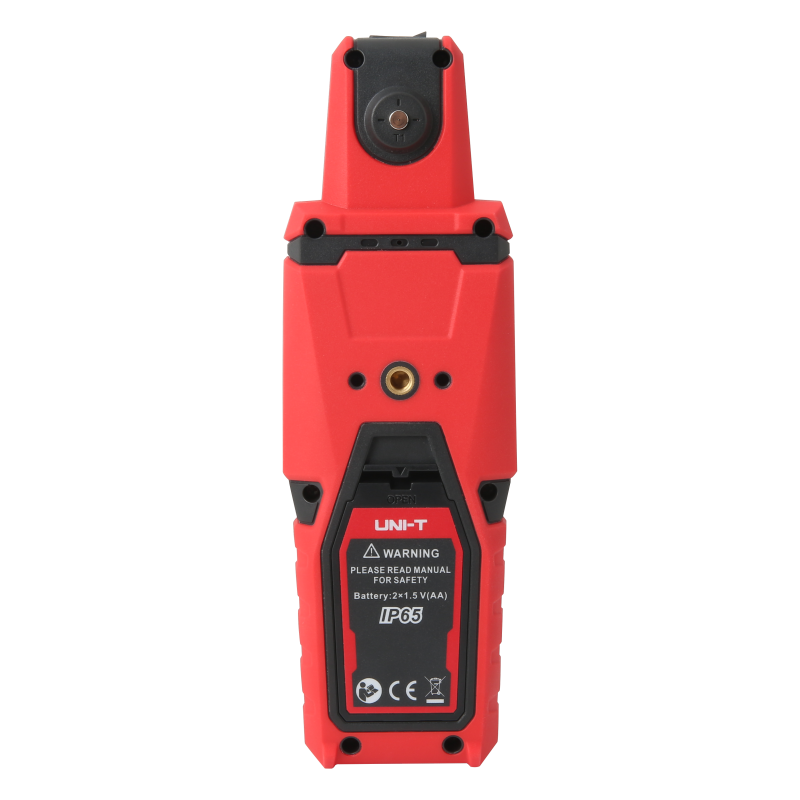

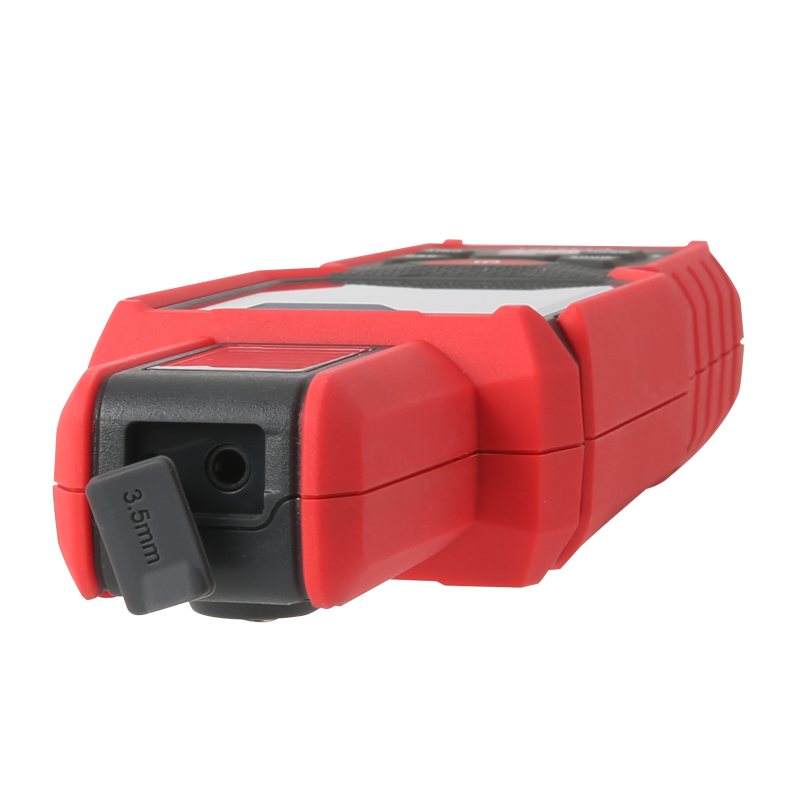

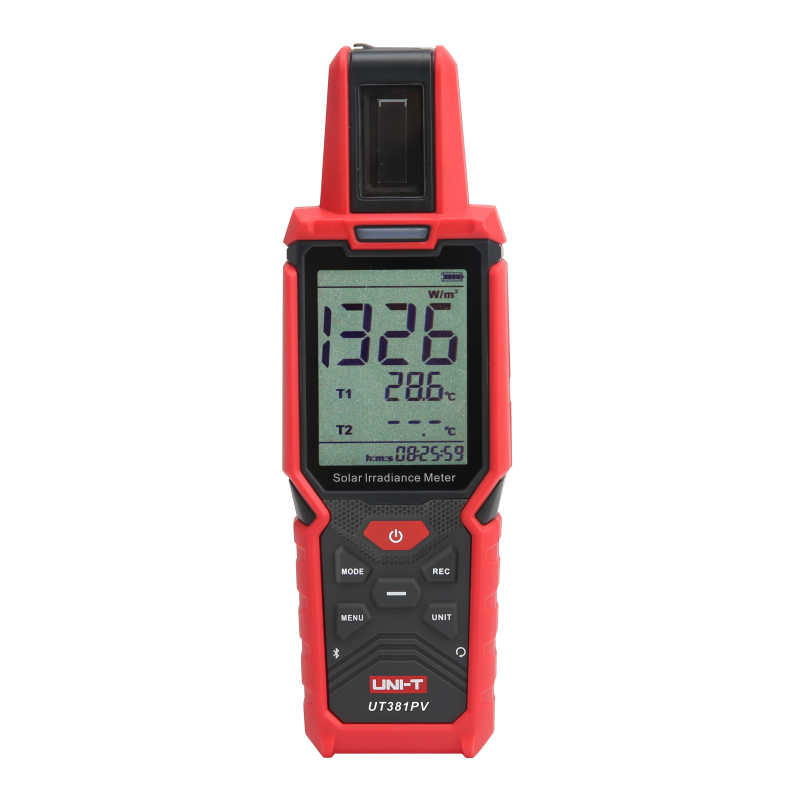

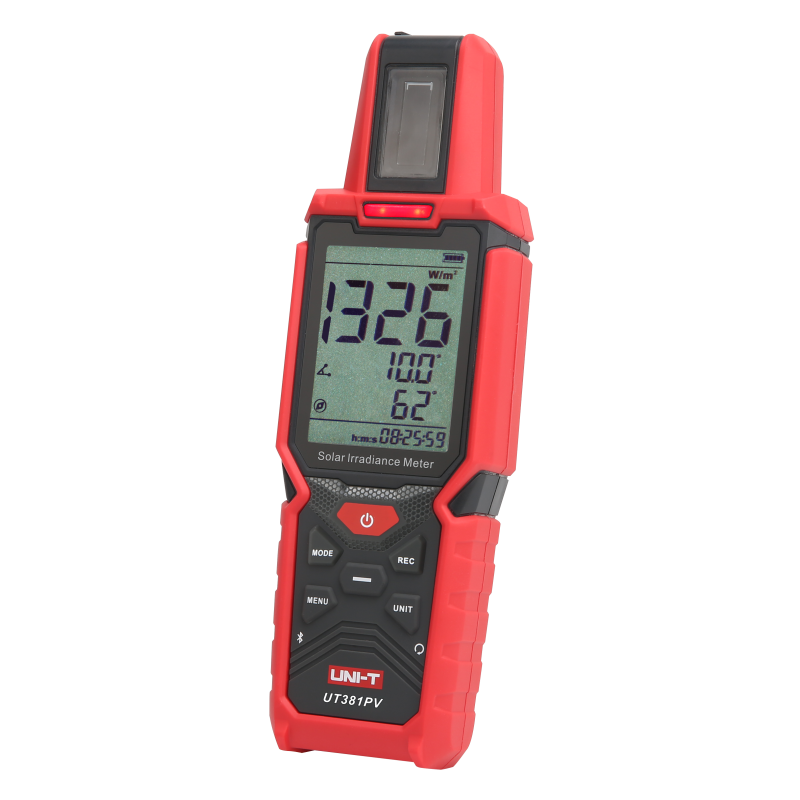

UNI-T UT381PV Solar Irradiance Meter
UNI-T UT381PV Solar Irradiance Meter
The UT381PV Solar Irradiance Meter is designed to measure solar irradiance under both natural and simulated sunlight. It is equipped with dual measurement channels for monitoring ambient and solar panel temperatures, along with a built-in inclination and azimuth sensor to accurately determine installation direction and tilt angle. The device also supports connectivity with the mobile application “iENV” and can be integrated with the UT541 15KW Photovoltaic I-V Curve Analyzer. It is widely used for solar panel installation and maintenance in photovoltaic power stations, as well as for product testing in PV laboratory environments.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 19,600
(GST inclusive price) i-
Base Value: ₹ 16610.2
-
GST: (18) % ₹ 2989.8
-
Total Value ₹ 19600
₹26,350.00
( - 26% OFF )
Description
Key Features
- Certifications: CE, RoHS
- Language:EN, FR, DE, IT, ES, SV, PL, CZ
- Multiple Targets Measurement
- UV-Resistant Housing
- IP65 Rating
- 2m Dropproof
- Mobile APP Connection
- Quick-Release Bracket
What's in the box?
|
Rating & Reviews
Rating
Technical Specifications | |||
Function | Range | Resolution | Accuracy |
Solar Irradiance Measurement | 0 ～ 1400W/m² | 1 | ±(5.0%rdg+5dgts) |
| 0～500 Btu/(ft² · h) | |||
| Temperature Measurement | -40～120℃ | 0.1 | ±1℃ (-10～75℃) |
±2℃ (others) | |||
| –40~248°F | 0.2/1 (>100℉) | ±2℉(14～167℉) | |
±4℉(others) | |||
| Inclination Measurement | –90.0~+90.0 ° | 0.1 | ±1.5°(-50～+50°) |
±2.5°(-85～50°,+50～+85°) ±3.5°(others) | |||
| Azimuth Measurement | 0~360° | 1 | ±7° |
| Data Storage | 12800 sets | ||
| Storage interval | 1s ~ 60min | ||
| LED Indicator | ✔ | ||
| Sound Prompts | ✔ | ||
| Auto Power Off | 30 minutes (no operations) | ||
| Compass Calibration | ✔ | ||
| Mobile APP | ✔ | ||
| Time Setting | ✔ | ||
| Bluetooth wireless transmission distance | 100m | ||
| Working Height | ≤2000 meters | ||
| Working Environment | -20℃～60℃, ≤90%RH(non-condensing ) | ||
| Storage Environment | -30℃～70℃, ≤80%RH(non-condensing ) | ||
| IP Rating | IP65 | ||
| Drop Test | 2 meters | ||
