Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR
Click To Zoom
Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR
Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR
The equipment, whether in stretched state is available for voltage detection in high-tension circuits (3.3kV, 6.6kV, 24KV & 33kV) whether the wires involved are naked or insulated. Low Voltage Detection: The equipment can be used for voltage detection in low-tension circuits (80V ~ 600V) by holding the nameplate portion of the detecting head.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 21,600
(GST inclusive price) i-
Base Value: ₹ 18305.1
-
GST: (18) % ₹ 3294.9
-
Total Value ₹ 21600
₹35,560.00
( - 23% OFF )
Description
Key Features

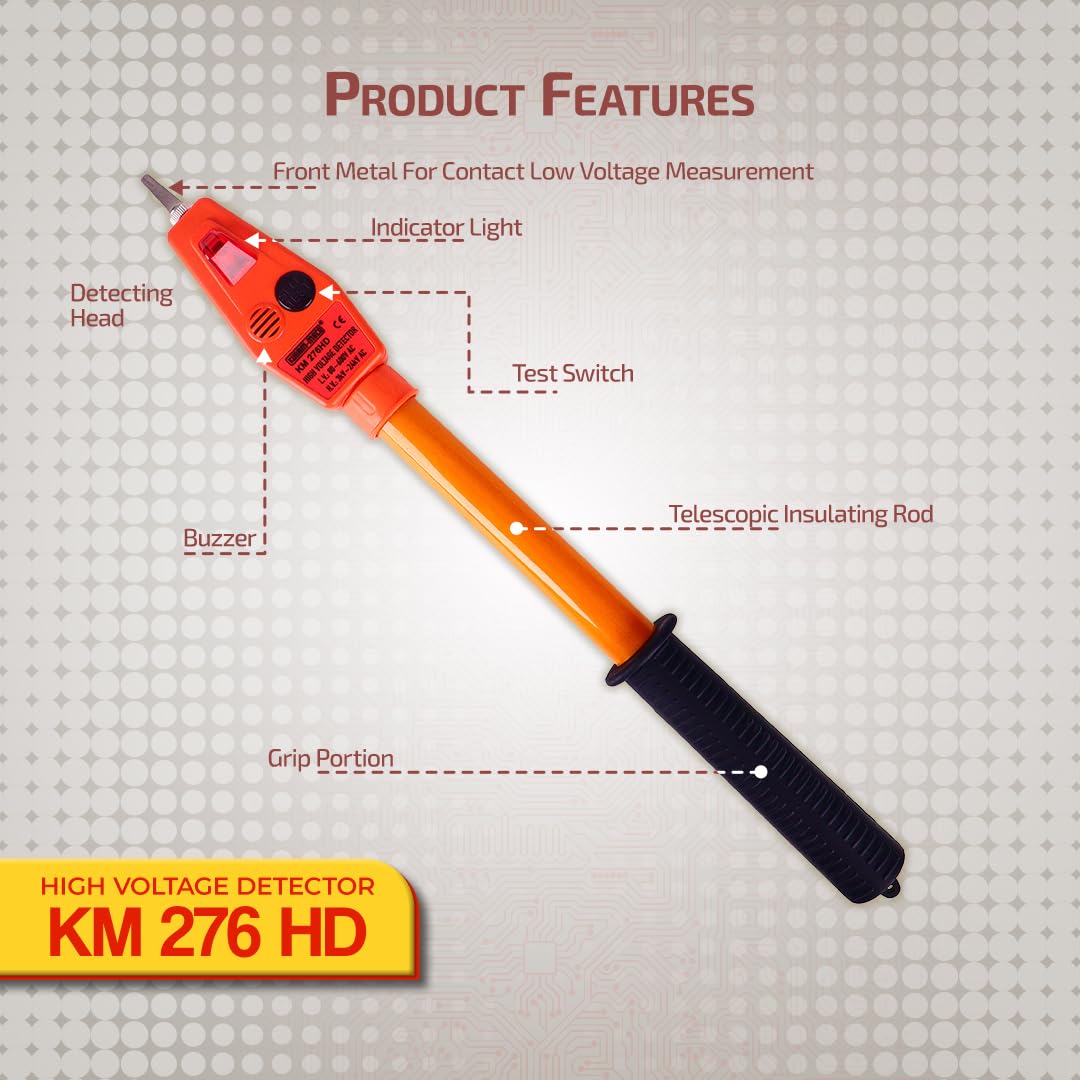

- Telescopic, Compact, light-weight and handy.
- High-voltage detection: The equipment, when in stretched state is available for voltage detection in high-tension circuits (3.3kV, 6.6kV & 24KV) whether the wires involved are naked or insulated.
- Low Voltage detection: The equipment can be used for voltage detection in low-tension circuits (80V ~ 600V) by holding the nameplate portion of the detecting head. Before-use, check can easily be done by plugging in an AC 100V plug socket, without using a tester.
- Easy to recognize indication: Intermittent lighting in red of a high intensity light-emitting diode and intermittent audible sound of an electronic buzzer are readily recognizable in full daylight, noisy location.
- Water proof: The detecting head, being tightly enclosed, is free from any trouble due to dust, dirt, water.
What's in the box ?
|
Rating & Reviews
Rating
Technical Specification
| General Specification | |
Dimension | 354 mm - 1005 mm |
Frequency | 50 Hz / 60Hz |
Power Source | Battery |
Voltage | H.V.: 3kV to 33kV AC, L.V.: 80V to 600V AC |
Battery Life | 3 button-cells LR44 (1.5V) |
Battery Type | 3 button-cells LR44 (1.5V) |
Operating Temperature | -10°C to +50°C |
Type of Product | High Voltage Detector |
Model No | 276 HD 33KV |
Weight (g) | 210 g |
Insulation Resistance | more than 2000MW @1KV |
Operating Voltage Range | H.V.: 3kV ~ 24kV AC, L.V: 80V ~ 600V AC |
