Kusum Meco -KM-60-T- TRMS DIGITAL MULTIMETER

Kusum Meco -KM-60-T- TRMS DIGITAL MULTIMETER
Kusum Meco -KM-60-T- TRMS DIGITAL MULTIMETER

Click To Zoom

Kusum Meco -KM-60-T- TRMS DIGITAL MULTIMETER

Kusum Meco -KM-60-T- TRMS DIGITAL MULTIMETER

(Based On 10 Reviews)

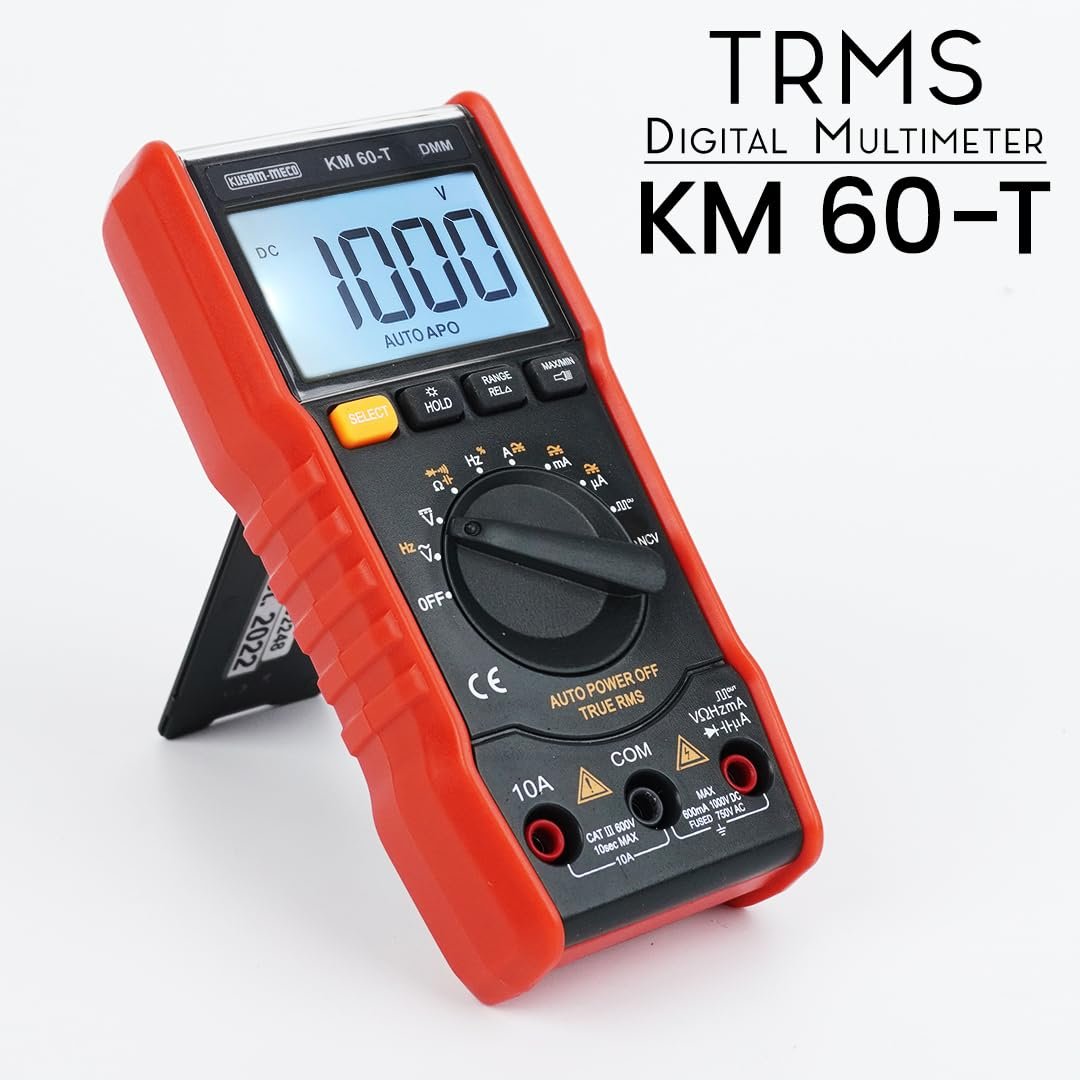

The Kusam-Meco KM 60-T is a True RMS digital Multimeter designed for versatile electrical measurements with a 6000-count display. It is known for its rugged construction and a range of features for professional and student use.

Request Callback

Order In Bulk

Generate Quote

₹ 1,750.00

(GST inclusive price) i
  • Base Value: ₹ 1483.1
  • GST: (18) % ₹ 266.9
  • Total Value ₹ 1750

₹2,250.00

( - 22% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Display: 3-5/6 digit, 6000-count liquid crystal LCD display with a backlight for low-light conditions.
  • Sensing: True RMS sensing for accurate readings of AC voltage and current, even with non-sinusoidal waveforms.

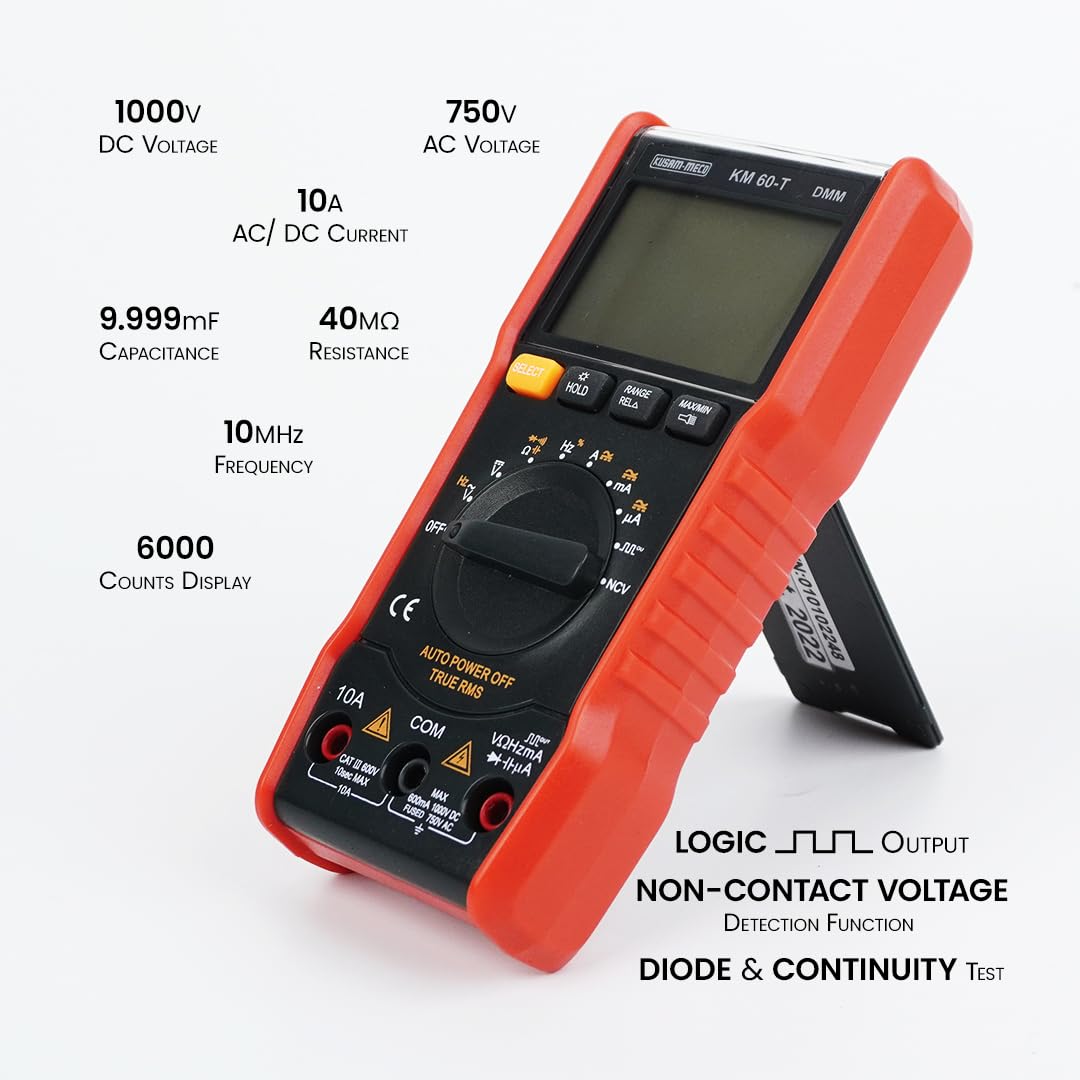

  • Measurement Capabilities: Measures AC/DC Voltage, AC/DC Current (up to 10A), Resistance, Capacitance, Frequency, and Temperature.

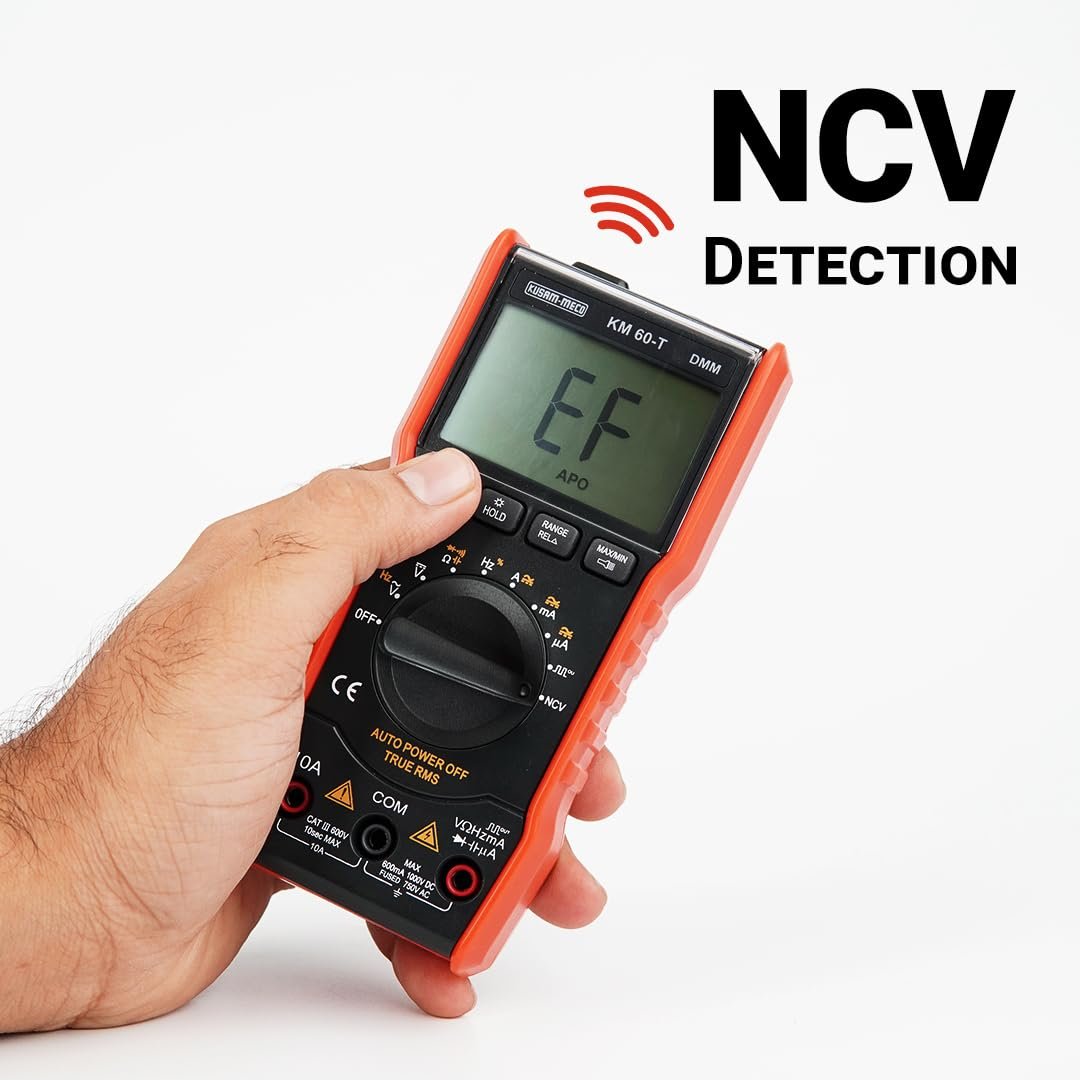

  • Non-Contact Voltage (NCV): A built-in function to detect the presence of AC voltage without touching the wire, enhancing safety.
  • Additional Functions: Includes Data Hold, MAX/MIN recording, Relative Zero mode, Diode test, Continuity buzzer, Flashlight, and Pulse Output.
  • Safety & Power: Complies with IEC1010 CAT III 600V safety standards. It features an auto power-off function after about 15 minutes of inactivity to conserve battery life and operates on two 1.5V AAA batteries.
  • Physical: The device has a splash-proof, fire-retardant casing and is lightweight (approx. 205gm including batteries).

What's in the box ?

  • Test leads (pair)
  • Battery
  • User Manual



Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specification

SensingTrue RMS
Display3-5/6 digits 6000 counts liquid crystal LCD display
Maximum Display5999 counts
Sampling Timeabout 3 times / second
Operating Temperature0 ° C to 40 ° C, Relative Humidity <80%
MeasurementDouble integral A/D conversion.
Overrange Display'OL'
Auto Power Offabout 15 minutes when no signa
Power Supply1.5V AAA x 2 battery
Low Battery IndicationBelow 2.3V
WeightApprox. 205gm (including battery)
DimensionApprox.142(L)mm x 70(W)mm x 32(H)mm

Electric Technical

Range

Resolution

Accuracy

6   V

0.001 V



± (0.5%rdg + 3dgts)

60  V

0.01 V

600 V

0.1 V

1000 V

1     V

± (0.8%rdg + 10dgts)
