METRAVI 23S-TRMS Digital TRMS Multimeter
Click To Zoom

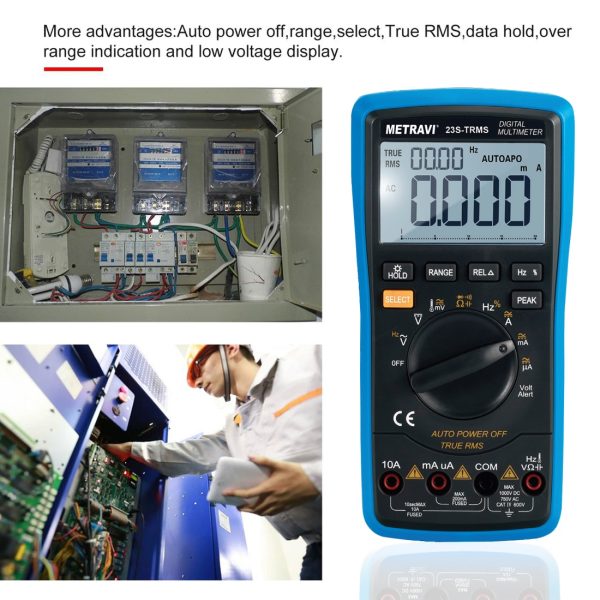

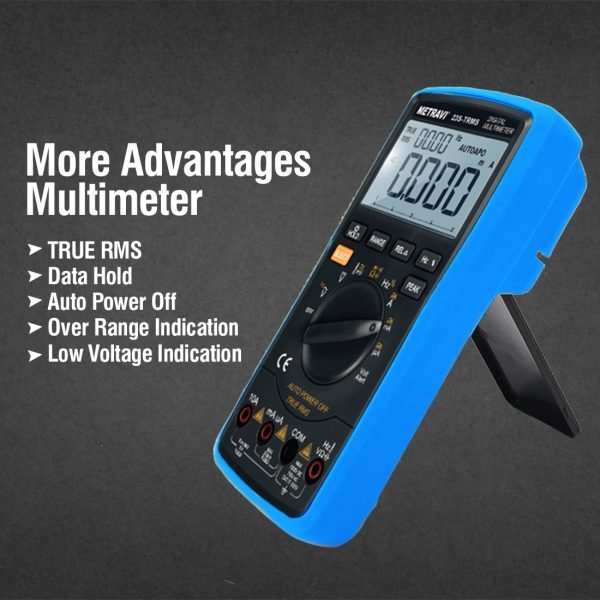

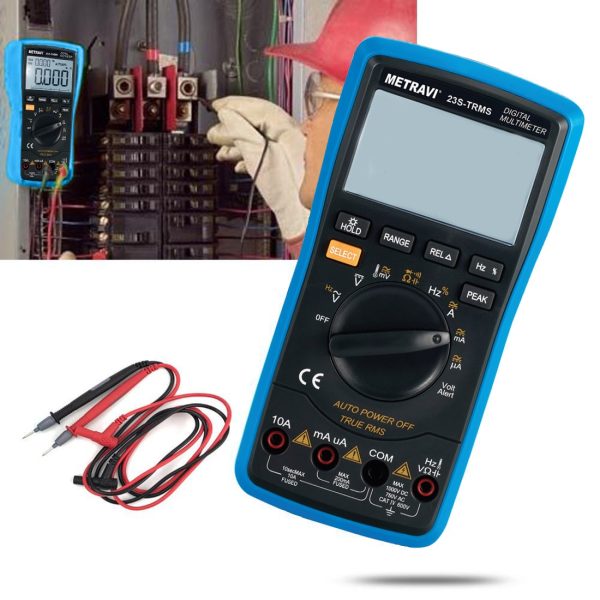

METRAVI 23S-TRMS Digital TRMS Multimeter
METRAVI 23S-TRMS Digital TRMS Multimeter
4-1/2 Digits 19,999 Counts, T-RMS, Backlit LCD, NCV, Data Hold, Peak Hold, Relative, Auto Power Off, Dual Display to show Voltage & Current with Frequency on the same screen, AC/DC Voltage, AC/ DC Current 10A, Resistance, Capacitance, Temperature, Frequency, Diode & Continuity Test both Audio and Visual.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
LIFETIME WARRANTY
B2B INVOICES
₹ 3,900
(GST inclusive price) i-
Base Value: ₹ 3305.1
-
GST: (18) % ₹ 594.9
-
Total Value ₹ 3900
₹5,535.00
( - 30% OFF )
Description
Key Features

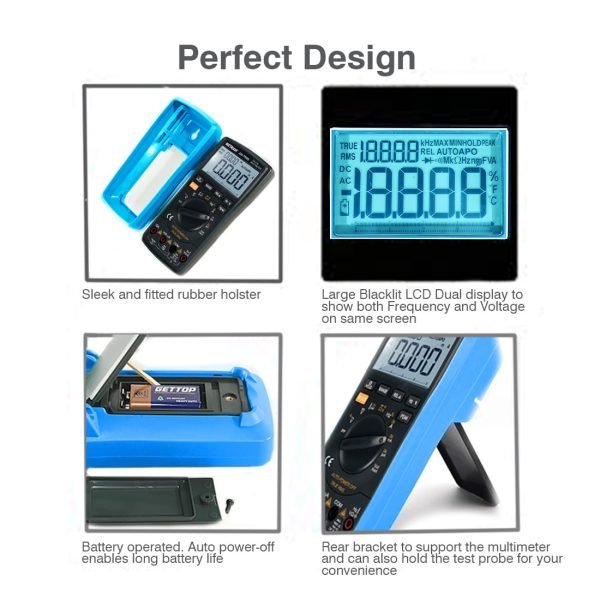

- Display: 20,000 Counts BacklitDual LCD display
- T-RMSMeasurements of Voltageand Current
- DataHold, Peak Hold
- Relative Measurement

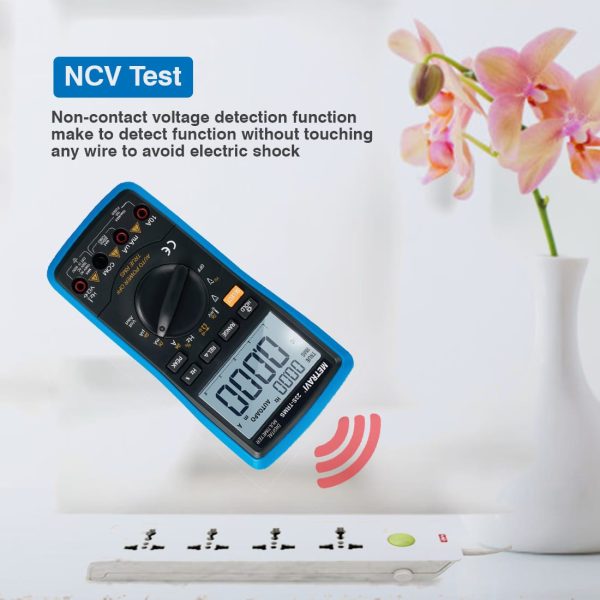

- NonContact Voltage Detection
- AutoPower Off
- Maximum display: 20000 (4-1/2)digits automatic polaritydisplay;
- Measurement method: double integralA / D conversion;
- Sampling rate: about 3 times per second;
- Over-range display: the highestbit was “OL”;
Low voltagedisplay: “ ”- Working environment: (0 ~ 40) °C, relative humidity<8 0%;
- Power: 9V (NEDA1604 / 6F22);
- Size:184 *90 *46mm (length ,widthand height);
- Weight: about 320g (including 9V battery);
What's in the box?
|
Rating & Reviews
Rating
DC Voltage (DCV) | ||
| Range | Accuracy | Resolution |
| 200mV | (0.05%+5) | 0.01mV |
| 2V | 0.0001V | |
| 20V | 0.001V | |
| 200V | 0.01V | |
| 1000V | (0.08%+10) | 0.1V |
| Input impedance: 10M Ω | ||
| Overload protection: 200mV range of 550V DC or AC peak; the remaining 1000V DC or 750V AC peak. | ||
AC Voltage (T-RMS) | ||
| Range | Accuracy | Resolution |
| 200mV | (0.06%+25) | 0.01mV |
| 2V | 0.0001V | |
| 20V | 0.001V | |
| 200V | 0.01V | |
| 750V | (0.8%+15) | 0.1V |
| Input impedance: 10MΩ; standard sine wave and triangular wave frequency response of 40Hz-1kHz; other waveform frequency response 40Hz-200Hz; | ||
DC Current | ||
| Range | Accuracy | Resolution |
| 200uA | (0.5%+4) | 0.01uA |
| 2000uA | 0.000mA | |
| 20mA | (0.8%+6) | 0.001A |
| 200mA | 0.01A | |
| 10A | (1.0%+6) | 0.1A |
| Maximum measurement pressure drop: 200mV; Maximum input current of 10A Overload protection: 200mA/250Vglass instant fuse, 10A / 250V ceramic instant fuse (10A continuous measurement <10 seconds) | ||
AC Current (T-RMS) | ||
| Range | Accuracy | Resolution |
| 200uA | (0.5%+4) | 0.01uA |
| 2000uA | 0.000mA | |
| 20mA | (0.8%+6) | 0.001A |
| 200mA | 0.01A | |
| 10A | (1.0%+6) | 0.1A |
Maximum measurement pressure drop: 200mV; Frequency response: sine wave and triangular wave | ||
Resistance | ||
| Range | Accuracy | Resolution |
| 200Ω | (0.5%+4) | 0.01Ω |
| 2kΩ | 0.1Ω | |
| 20kΩ | (0.8%+6) | 1Ω |
| 200kΩ | 10Ω | |
| 2MΩ | (1.0%+6) | 100Ω |
| 20MΩ | 1kΩ | |
| Open circuit voltage: below 3V; Overload protection: 550VDC or AC peak value; NCV Testing: When chosing this function the instrument detects presence of electro-magnetic field, the buzzer sound will start and would increase with the intensity of electro-magnetic field. | ||
Capacitance | ||
| Range | Accuracy | Resolution |
| 20nF | (3.0%+20) | 1pF |
| 200nF | 10pF | |
| 2uF | 0.1nF | |
| 20uF | 1nF | |
| 200uF | (5.0%+10) | 10nF |
| 2000uF | 100nF | |
| Overload protection: 550V DC or AC peak value. | ||
Frequency | ||
| Range | Accuracy | Resolution |
| 10Hz | (0.01%+3) | 0.001 Hz |
| 100 Hz | 0.01 Hz | |
| 1k Hz | 0.1 Hz | |
| 10k Hz | 1 Hz | |
| 100k Hz | 1 0Hz | |
| 1M Hz/20M Hz | (0.8%+15) | 100Hz/1k Hz |
| Input sensitivity: 1.5V RMS; Overload protection : 550V DC or AC peak value (not over 10second) | ||

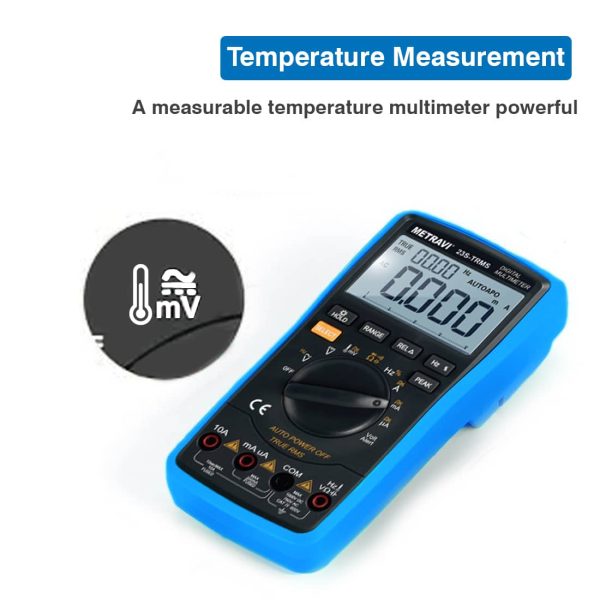

Temperature | ||
| Range | Accuracy | Resolution |
| 10Hz | (0.01%+3) | 0.001 Hz |
| 100 Hz | 0.01 Hz | |
| 1k Hz | 0.1 Hz | |
| 10k Hz | 1 Hz | |
| 100k Hz | 1 0Hz | |
| 1M Hz/20M Hz | (0.8%+15) | 100Hz/1k Hz |
Diode and Continuity Testing | ||
Range | Display value | Testing condition |
| Positive diode voltage drop | PositiveDC currenabout1mA, Open circuit voltage about 3V, |
| Buzzer withlonbuzzing Sound The resistance of 2 testingpoint below (50±2 0)Ω |
Opencircuitvoltagabout 3V Press “SELECT” can convert the 2 function |
| Overload protection: 550V DC or AC peak value. | ||
